SANYU SY5000 Series User Manual

14

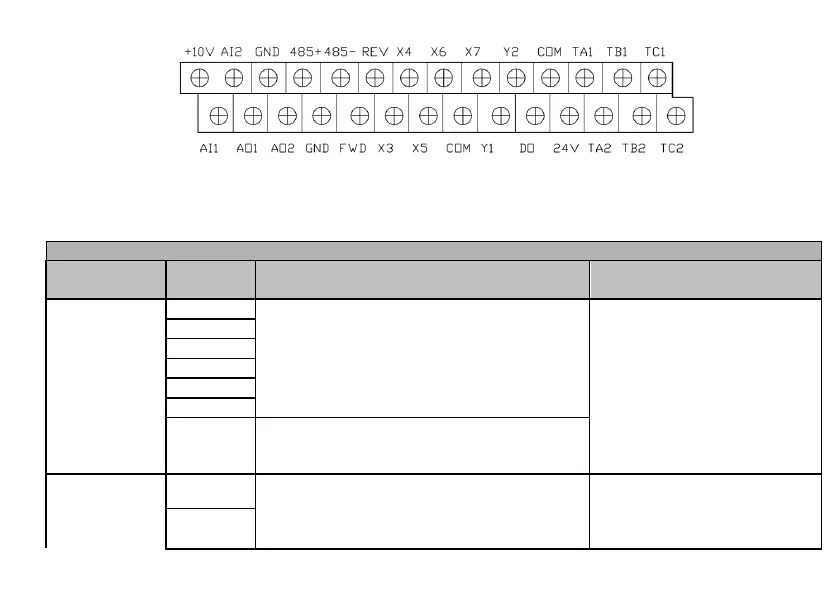

2.9 Control Loop Terminal Function Table
Functional Specification of Control Loop Terminal
Category
Terminal
Number
Functions
Specification
Multi-functiona
l Digital Input
Terminal
X1
Effective when short circuit between(X1、X2、X3、
X4、X5、X6、X7）～ COM, and the functions are set
by parameters F7.00～F7.06(common port: COM)
INPUT, 0～24V level signal, low
level effective, 5mA.
X2
X3
X4
X5
X7
X6
X6 can work as one of the multi-functional
terminals, also as high-speed pulse input terminal
with programming, see F7.05.
Digital Output
Terminal
Y1
Multi-functional programmable collector open
circuit output channel 2, can be programmed as
DO terminal of various functions (common port:
COM)
OUTPUT, maximum load
current≤50mA.
Y2
