OPERATION
_________________________________________________________________________________________________________
3-1
SIG-QG-17-05 DECEMBER 2017
Version No.: A
SECTION 3 - OPERATION
3.0 OPERATION
This section will provide an overview of the Display module operation.
3.1 DISPLAY MODULE LAPTOP INTERFACE
The Display module Laptop port provides an interface for connecting a laptop to the GCP unit.
The laptop port can also be used for other Ethernet functions when properly configured.
3.1.1 Display Module to Laptop Connection
To connect a laptop to the Display module, plug an RJ-45 to RJ-45 Ethernet cable from the
Laptop port on the front panel of the Display module to any Ethernet port on the laptop. The
Display module DHCP should be set up as a server and the laptop DHCP set up as a client.
Using a web browser on the laptop, enter the Display IP address (192.168.255.81) in the
browser address text box to connect to the display. The Siemens Web User Interface (Web UI)
will appear on the computer web browser. Refer to the GCP manual for your GCP unit for
further information on using the Web UI.

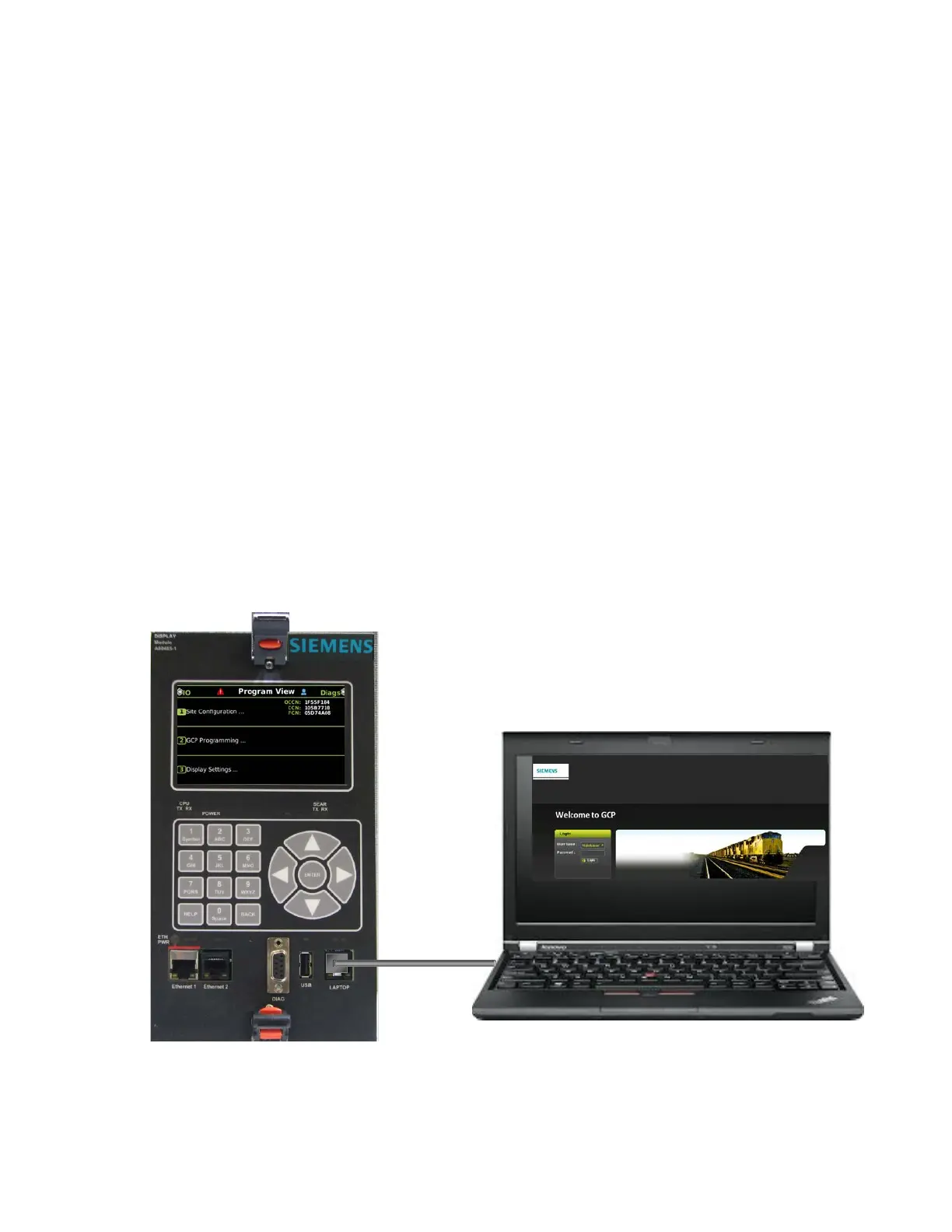

Figure 3-1 Display Module to Laptop Connection
