INTRODUCTION
_________________________________________________________________________________________________________
1-1
SIG-QG-17-05 DECEMBER 2017
Version No.: A
SECTION 1 - INTRODUCTION
1.0 INTRODUCTION
The purpose of this quick start guide is to introduce GCP Users to the Siemens Next-Generation
Display module, A80485-1, used on the GCP3000+, GCP4000, and GCP5000. The scope of
this guide encompasses the location and operation of the display controls, indicators, and
connectors as well as addressing the initial user-configurable port parameters to enable
connection to external devices, such as a laptop, external network, or Ethernet powered
devices.
1.1 GCP DISPLAY MODULE
The Siemens A80485-1 Display Module is the next generation display module replacing the
A80407 Display Module, offering enhanced features and improved speed and responsiveness.
A restructured menu reduces programming and maintenance time in the field. The addition of
two Ethernet ports offers connectivity to a network or Ethernet devices. A powered Ethernet port
is available for devices deriving their power from an Ethernet connection. The Laptop port
enables the user to connect a laptop computer to the display to configure parameters, update
software, and download logs. The display screen and keypad provide a local user interface,
allowing operation without the need of a computer.

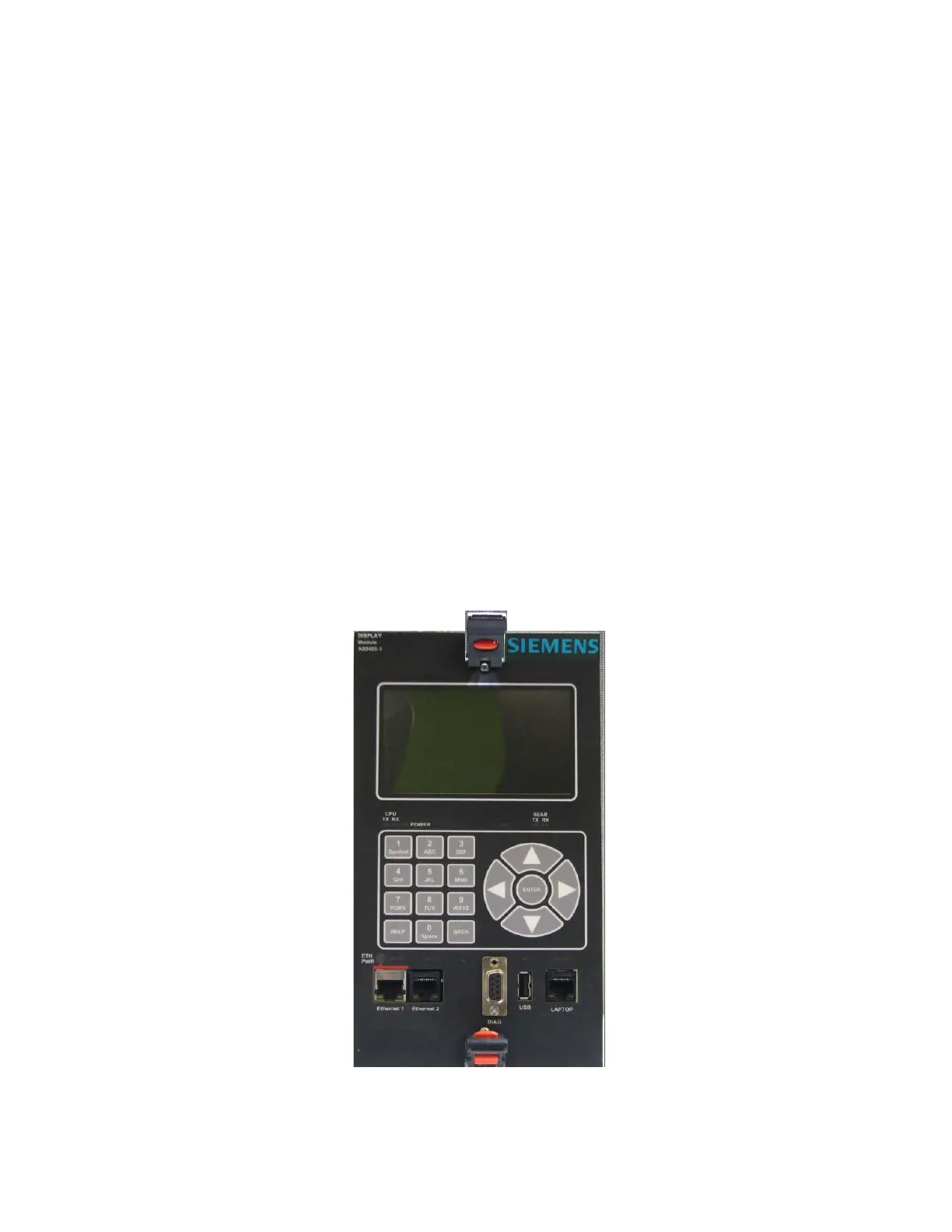

Figure 1-1 A80485 Siemens Display Module

Siemens A80485-1 Specifications

General

Brand	Siemens
Model	A80485-1
Category	Control Unit
Language	English
