Siemens C55 Repair Documentation

V1.20 Page 21 of 48 ICM MP CCQ GRM
A55/C55_Hitachi Company Confidential © Copyright Siemens AG 04/03
21 24
Bus
Interface
Unit
Shared Memory
Dual Port 512 x 16
Keypad
Interface
GSM
TDMA Timer
TAP Controller
JTAG
Boundary Scan
Cipher Unit
A51/52
SIM card
Interface
High Speed
(F=512, D=8/16)
32 kHz
13/26/52 MHz / 32 kHz
78 MHz
Dual Port RAM
1k x 16
OCEM
SRAM
256k x 8
DSP Timer2
X-Bus
PD-Bus
PROM
1k x 16
Boot
Block
confidential
DSP Serial
Comm. Interface /
DAI
RTC
External
Bus & Port
Controller
AFC Unit
Pulse-Carry Mod.
80
Power
Management
DSP Timer1
Viterbi
HW
Accelerator
ID Register
SSC
SPI
compatible
ASC0
Autobaud
Detect
ASC1
6
2
2
Multicore
Debug Support
SEIB
CAPCOM
2 x 8 bit
16
RF Control
8 16
3
GPT1/GPT2
Watchdog
8
CS(4:0)
Interrupt Controller
Osc.
32.768 kHz
Enable Signals to
X- and PD-Bus Peripherals
MCU
C166S
Clock Generation
Peripheral Enable
Generator
Switch Matrix
Battery & Temperature
Measurement
DAC
R-String
GMSK
Modulator
Voiceband
Filters
RX and TX
Σ∆
ADC
MUX
Baseband
Filter/
Cordic-
Processor
Σ∆
ADC
Σ∆
ADC
16 bit I/O Ports
E-GOLD+ V3.0 Architecture
Single Chip Cellular Baseband Processor
RF Output
Power Control
10 bit DAC
Bandgap
reference
voltage
Σ∆
DAC
12 bit resolution
DAC
R-String
Package: P-LFBGA-208
READY#
NMI#
HOLD#
HLDA#
CLKOUT
RSTOUT#
6
2
2
2
2
2
2
2
2
3
8 3
4
6
P ROM
60k x 16
P RAM
4k x 16
Y RAM
2k x 16
X RAM
15k x 16
X ROM
36k x 16
Interp./
Noise
Shaper
Interp./
Noise
Shaper
GPRS
Cipher Unit
OAK78 DSP
x Interleaving / De-Interleaving
x Speech Coding/Decoding
(FR, HR, EFR, AMR)
x Level Measurement
x Channel Coding/Decoding
(FR, HR, EFR, AMR)
x Equalization
x Encryption / Decryption
x Voice Memo/Voice Dialing
x GPRS support
I
2
C
2
LM-Bus
I2S
3
MMCI
V5.4
5
4
Logic
Arranger
(LPA)
OCDS DPEC
Interrupt Controller

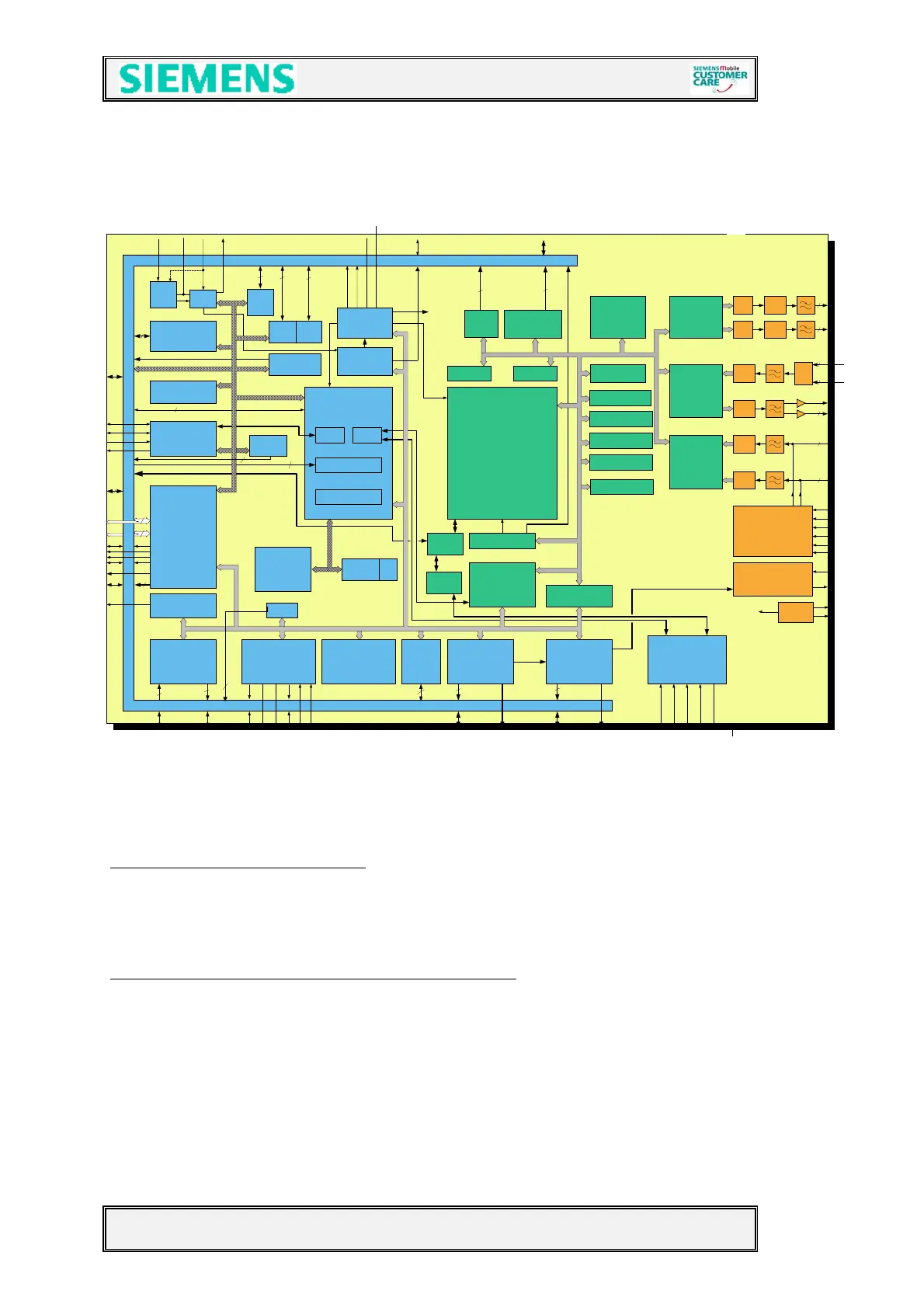

5.1.3 EGOLD+
Block Diagram EGOLD+ V3.1
The EGOLD+ contains a 16-bit micro-controller (µC part), a GSM analog Interface
(EGAIM), a DSP computing core (DSP part) and an interface for application-specific
switch-functions.
The µC part consists of the following:
• Micro-controller
• System interfaces for internal and external peripheries
• On-chip peripheries and memory
The Controller Firmware carries out the following functions:
• Control of the Man Machine Interface (keypad, LCD, sensing element, control of
the illumination,...)
• GSM Layer 1,2,3 /GPRS
• Control of radio part (synthesizer, AGC, AFC, Transmitter, Receiver...),
• Control of base band processing (EGAIM)
• Central operating system functions (general functions, chip select logic, HW driver,
control of mobile phones and accessories...).
