Mounting and installing MindConnect Elements
4.3 Mounting MindConnect IoT2040
Getting Connected to MindSphere
20 Getting Started, 05/2018
4.2.2 Connecting the protective earth

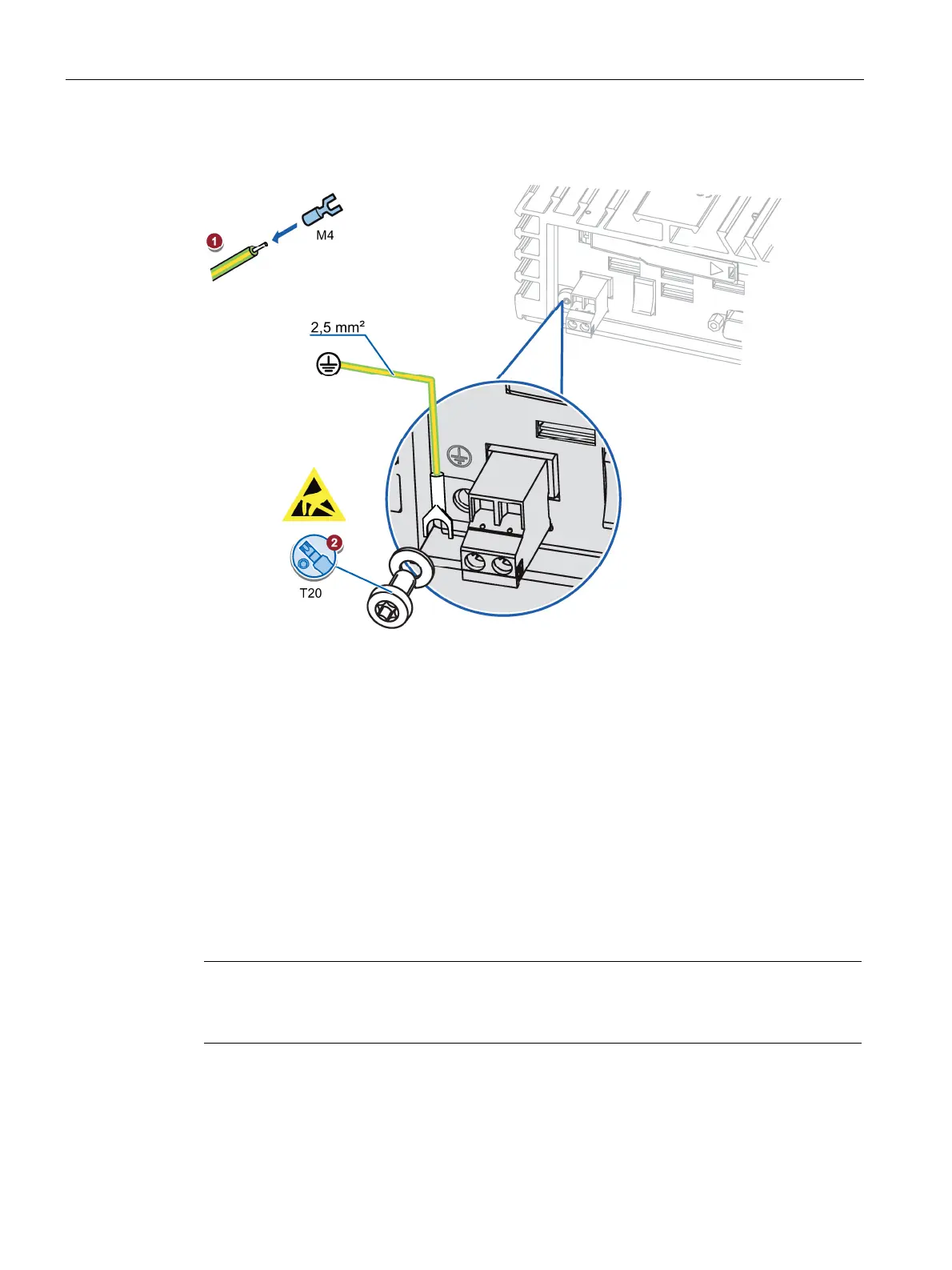

Figure 4-1 Connecting protective earth
4.3 Mounting MindConnect IoT2040
4.3.1 Permitted mounting positions and surrounding temperature
The following mounting positions and surrounding conditional temperature are permitted:
● Horizontal mounting position: The horizontal mounting position is the preferred position.
Maximum surrounding temperature is 50°C.
● Vertical mounting position: Maximum surrounding temperature is 50°C.
Note
> 50 °C: Install in RAL
RAL = Restricted Access Location - e.g. a lockable cabinet
