Unit Description
8-3
MP270 Equipment Manual
Release 01/99
8.2 Operating and display elements
Screen
Function keys System keys

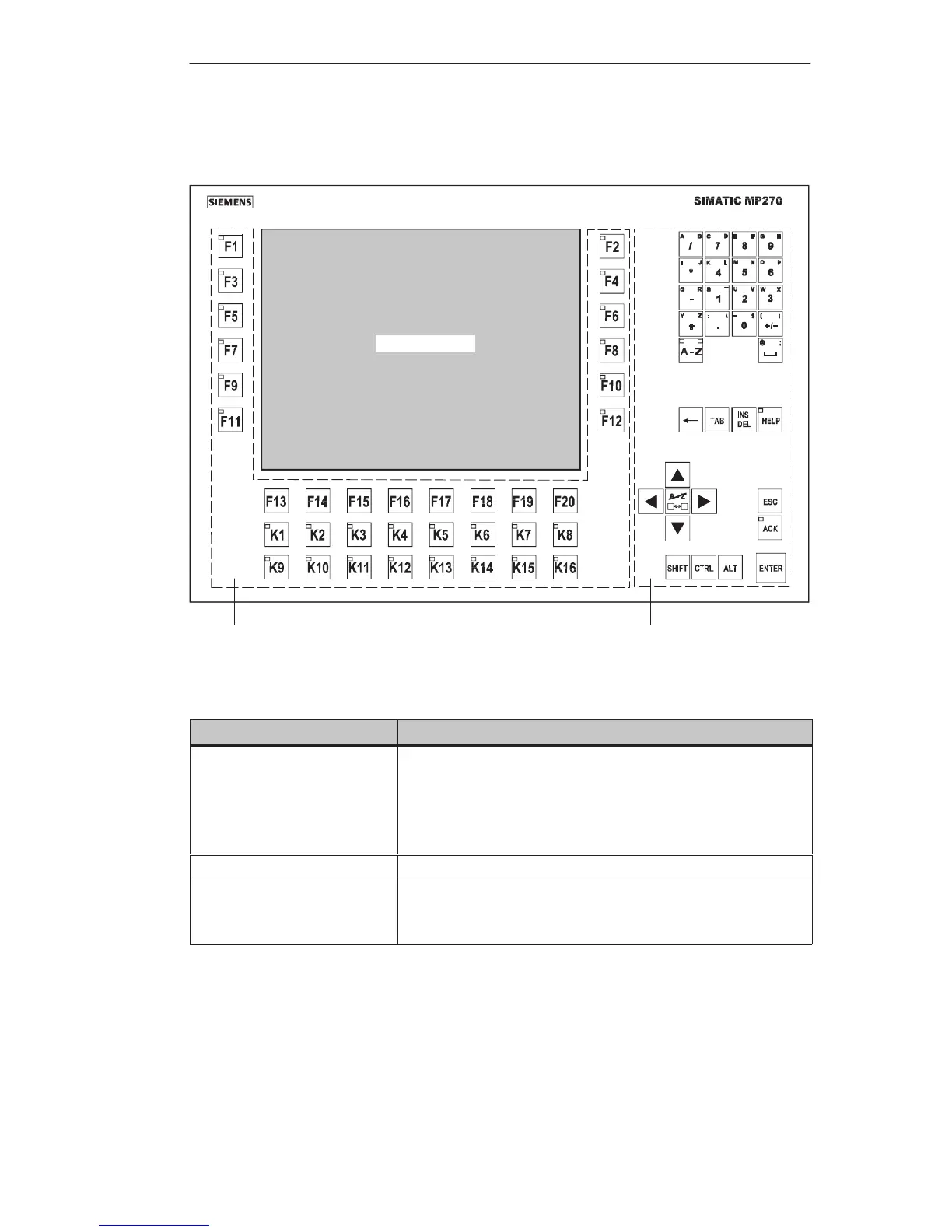

Figure 8-2 Arrangement of operating and display elements
Name Description
Screen
Type
Resolution (pixels)
Colors
Back-lighting
TFT or STN LCD
640 × 480
256
CCFL tube
System keys 33 system keys with dedicated functions (3 with LEDs).
Function keys 36 configurable function keys (28 with LEDs), 20 of which can
be used as softkeys.
User-specific labeling using labeling strips.
