6 Operation
25.07.
2014
6.7
Display of software version
*
Press
Enter
+
7866z0
5/091
1

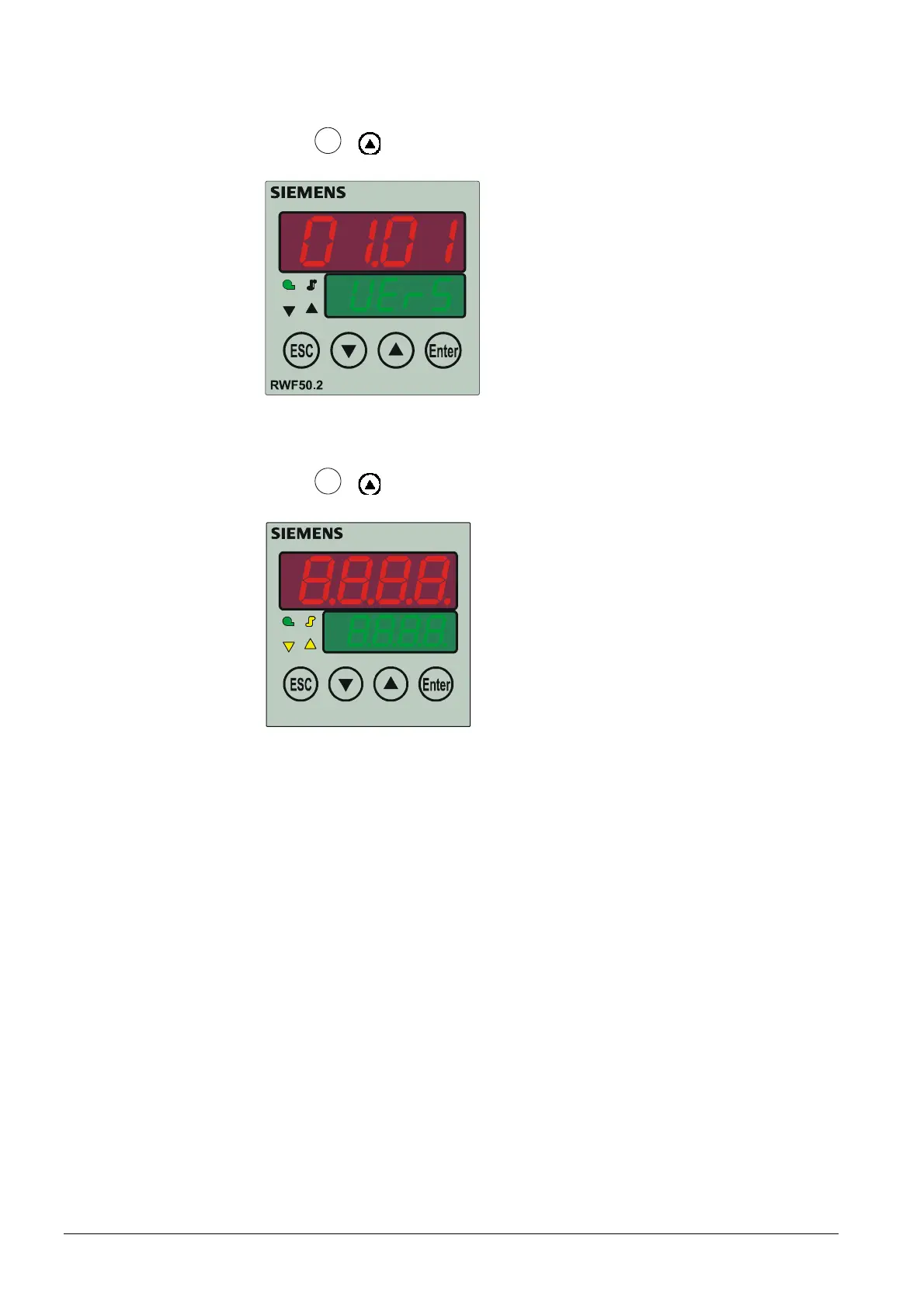

Figure 20: Display of software version
*
Press
Enter
+
again.
RWF50.X
7866z12/01
12
Figure 21: Display segment test
All display segments and LEDs light up; the actual value
display (red) flashes for about
10 seconds.
Segment test
37
39
Table of Contents
Table of Contents
5
Introduction
8
General Notes
8
Typographical Conventions
9
Safety Notes
9
Warning Symbols
9
Notification Symbols
10
Presentation
10
Description
11
Block Structure
12
Identification of Product no
13
Type Field
13
Scope of Delivery
13
Installation
14
Installation Site and Climatic Conditions
14
Dimensions
14
Side-By-Side Mounting
15
Mounting the Controller in a Panel Cutout
15
Removing the Controller from the Panel Cutout
16
Cleaning the Front
16
Electrical Connections
17
Installation Notes
17
Galvanic Separation
18
Assignment of Terminals
19
Operating Modes
21
Low-Fire Operation
21
High-Fire Operation
22
Modulating Burner, 3-Position Output
22
Modulating Burner, Analog Output
23
2-Stage Burner, 3-Position Output
24
2-Stage Burner, Analog Output
25
Burner Shutdown
26
Predefined Setpoint
27
Response Threshold (Q)
28
Cold Start of Plant
29
Thermal Shock Protection (TSS)
31
Operation
32
Meaning of Display and Buttons
32
Basic Display
33
User Level
34
Manual Control, Modulating Burner
35
Manual Control, 2-Stage Burner
36
Starting the Self-Setting Function
37
Display of Software Version
38
Parameterization para
39
Configuration Conf
41
Analog Input Inp1
42
Controller Cntr
43
Thermal Shock Protection (TSS) Rafc
44
Control Outputs Outp
45
Binary Input Binf
46
Display Disp
47
Self-Setting Function
48
Self-Setting Function in High-Fire Operation
48
Checking the Controller Parameters
50
PC Software ACS411
51
Safety Notes
51
Setting the Correct System Parameters
51
Changing the Parameters
51
Place of Installation
52
License and Liability Regulations
52
Procurement of PC Software ACS411
52
Languages
52
Operating Systems : Operating
52
Prerequisites for Hardware
52
Installation
53
Others
53
Use of USB Port : Use of
53
Powering the Controller Via the USB Port : Powering the Controller Via the Port
53
What to Do if
54
Alarm Messages
54
Others
54
Technical Data
55
Inputs
55
Resistance Thermometers
55
Input Signals
55
Binary Input D1
55
Monitoring the Measuring Circuit
56
Controller Outputs Outp Controller O
56
Controller
56
Electrical Data
57
Housing
57
Environmental Conditions
58
Segment Display
58
Standards and Certificates
58
Key
59
List of Figures
61
