8 Configuration ConF
Here, the settings (e.g. acquisition of measured value or type of controller) required
directly for commissioning a certain plant are made and, for this reason, there is no
need to change them frequently.
Basic display
7866d12e/0212
ESC
>2 s
or timeout
Enter
OP
r
Enter
User level OPr
SP1 SP2
InP1 Y
or (editable)
or (only display)

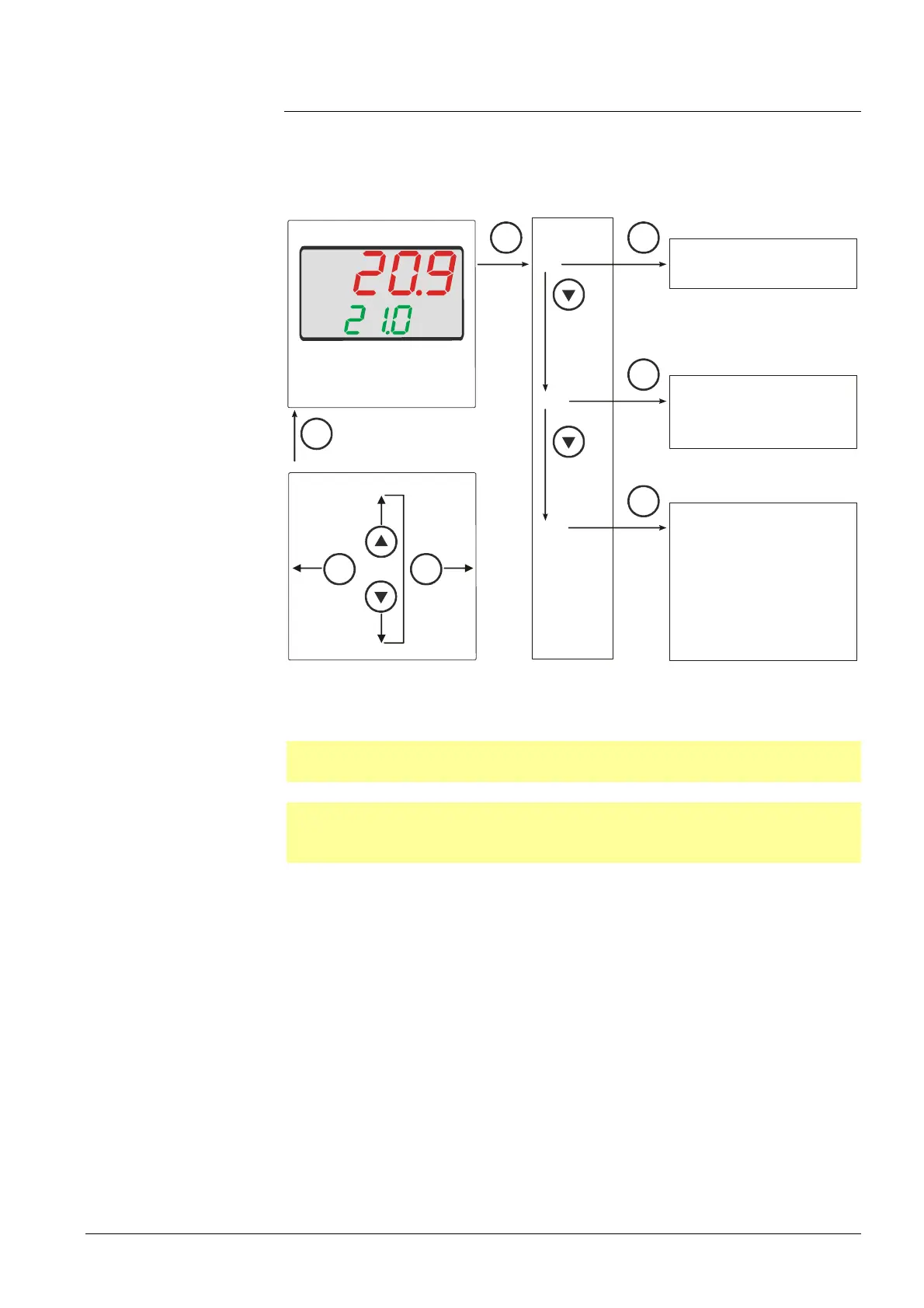

Navigation principle
Enter
ESC
One level back One level
down
Next/previous parameter
PArA
Enter
Parameter level PArA
HYS1 HYS2 HYS3
HYS4 HYS5 HYS6
Pb1 dt rt db tt
Heating controller: , ,
Cooling controller: , ,
Only RWF50.2: , , , ,
Enter
Configuration level ConF
InP1
Cntr
rAFC
binF
diSP
Analog inputs:
Controller:
Thermal shock protection:
Binary inputs:
Display:
Only RWF50.3
Controller outputs:
OutP
C
on
F
Figure 23: Configuration
Access to this level can be locked.

Reference!
See chapter 8.6 Display diSP.

Note!
The following tables show the default settings in columns Value/selection and
Description in bold printing.
