Infrastructure & Cities Sector 7 Parameterization PArA 25.07.2014
7 Parameterization PArA
Here, set the parameters associated directly with the controller’s adaptation to the
controlled system after the plant has been put into operation.

Note!
The display of the individual parameters depends on the type of controller.
Basic display
7866d12e/0212
ESC
>2 s
or timeout
Enter
OP
r
Enter
User level OPr
SP1 SP2
InP1 Y
or (editable)
or (only display)
Navigation principle
Enter
ESC
One level back One level
down
Next/previous parameter
PArA
Enter
Parameter level PArA
HYS1 HYS2 HYS3
HYS4 HYS5 HYS6
Pb1 dt rt db tt
Heating controller: , ,
Cooling controller: , ,
Only RWF50.2: , , , ,
Enter
Configuration level ConF
InP1
Cntr
rAFC
binF
diSP
Analog inputs:
Controller:
Thermal shock protection:
Binary inputs:
Display:
Only RWF50.3
Controller outputs:
OutP
C
on
F

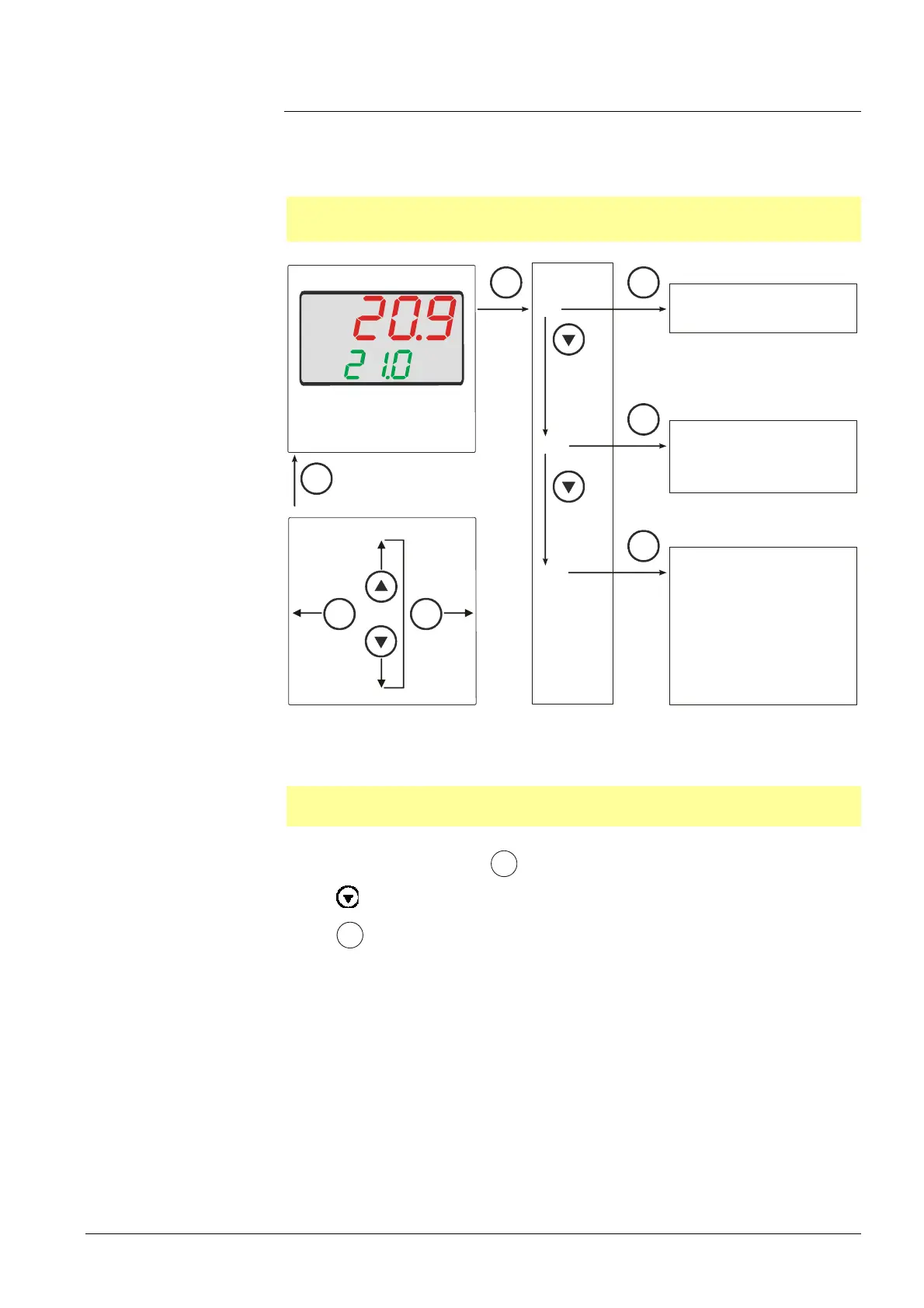

Figure 22: Parameterization
Access to this level can be locked.

Reference!
See chapter 8.6 Display diSP.
*
From the basic display, press
Enter
so that OPr appears
*
Press
so that PArA appears
*
Press
Enter
so that the first parameter of the parameter level is displayed
