Description of the device
3.2 Device views
SCALANCE XC-100
12 Operating Instructions, 06/2016, C79000-G8976-C415-02
3.2
Device views
3.2.1
Device view of a SCALANCE XC106-2

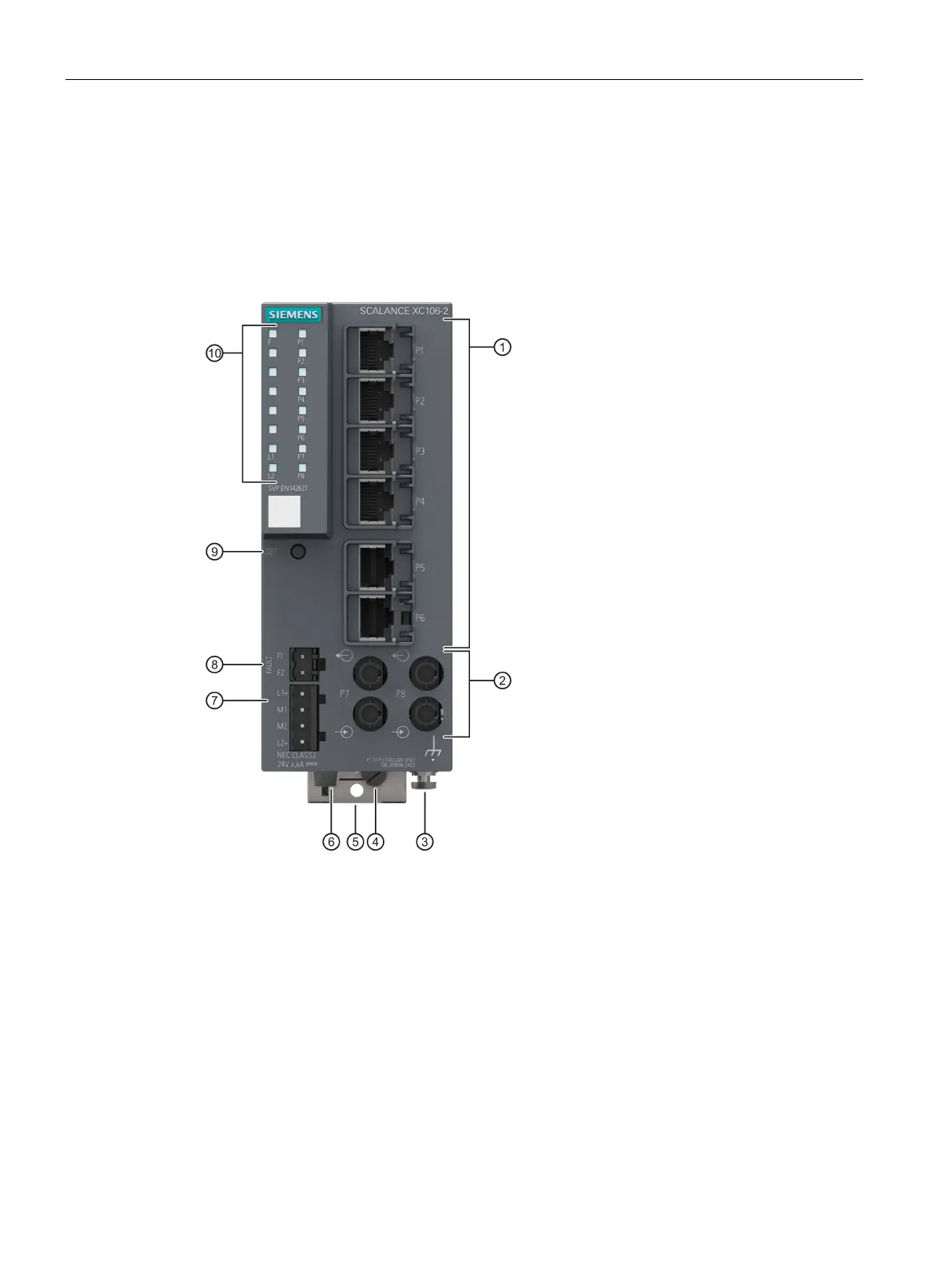

The following figure shows an overview of the components of the SCALANCE XC106-2.
①
Electrical ports
②
Optical ports
③
Grounding screw
④
Knurled screw
⑤
Securing bar
⑥
Levering aid for moving the securing bar with a screwdriver
⑦
Power supply
⑧
Signaling contact
⑨
"SET" button
⑩
LED display
