Description of the device
3.2 Device views
SCALANCE XC-100
Operating Instructions, 06/2016, C79000-G8976-C415-02
13
3.2.2

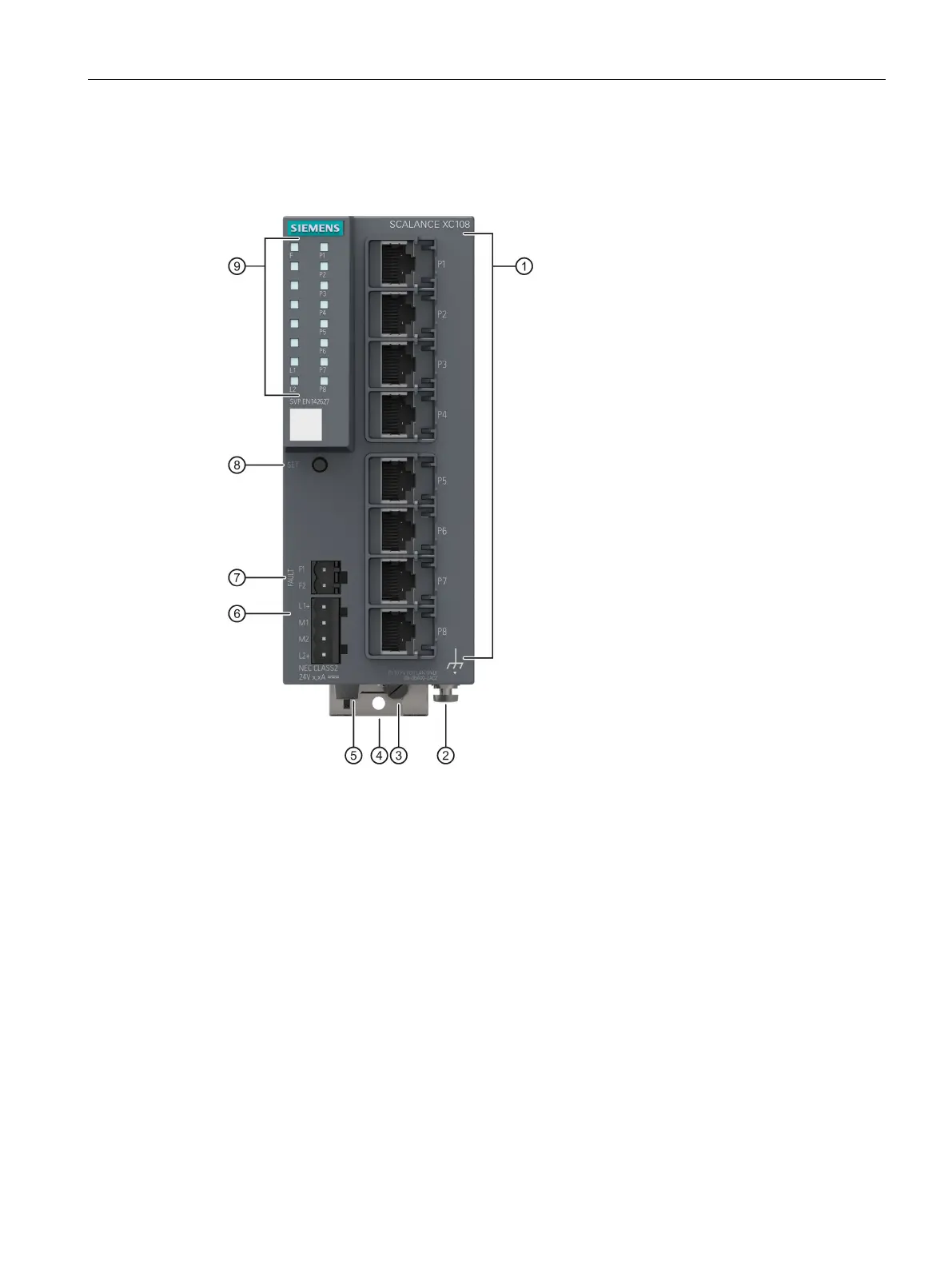

Device view of a SCALANCE XC108
The following figure shows an overview of the components of the SCALANCE XC108.
①
Electrical ports
②
Grounding screw
③
Knurled screw
④
Securing bar
⑤
Levering aid for moving the securing bar with a screwdriver
⑥
Power supply
⑦
Signaling contact
⑧
"SET" button
⑨
LED display
