08.96 Operator control
Siemens AG 6SE7087-6BM70
4-1
SIMOVERT MASTER DRIVES Operating Instructions
4 Operator control
The converter can be controlled via:
♦
the PMU (Parameterization Unit)
♦
the control terminal strip on the CU (
+
section “Control terminal strip“)
♦
the OP1 operator control panel (
+
section “Options“)
♦
the RS485 and RS232 serial interface on PMU-X300
Operator control using the PMU is described in this section.
P
On key
Off key
Reversing key
Raise key
Changeover key, operator control leve
Lower key
Seven-segment displays
X300

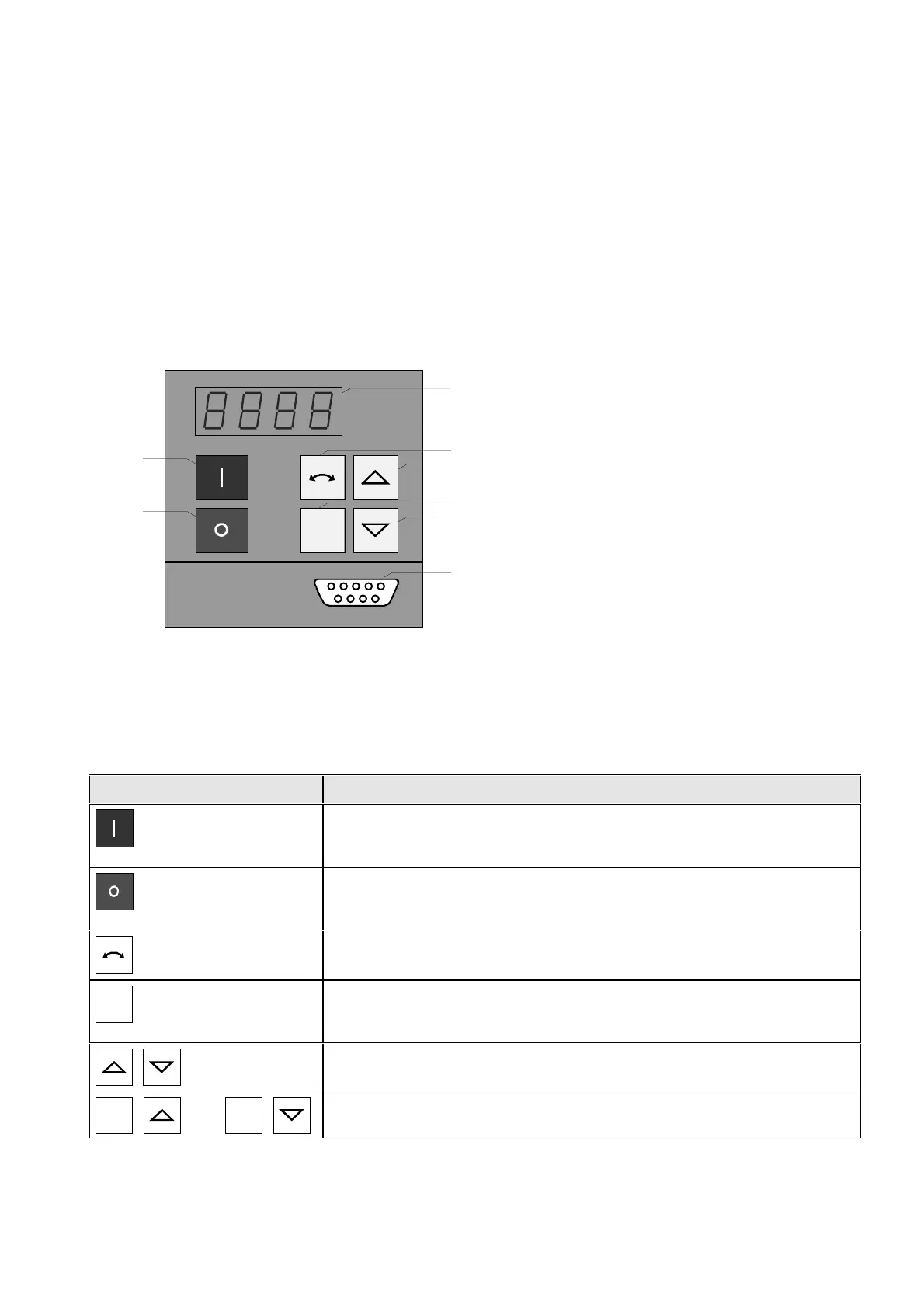

Fig. 4.1 Parameterization unit
4.1 Operator control elements
Operator control elements Function
Converter switch on (standard).
For faults: Return to the fault display.
Command is effective when the key is released.
Converter shutdown depending on the parameterization of OFF 1, OFF 2 or
OFF 3 (P554 to P560).
Command becomes effective when the key is released.
Field reversal / reversing for the appropriate parameterization.
Command becomes effective when the key is released.
P
Changeover from parameter number to parameter value. In conjunction with
other keys, additional functions (see Operating Instructions, Part 2).
Command becomes effective when the key is released.
,
Values (raise, lower) change as long as the keys are depressed.
P
+ resp.
P
+
Depress P and hold, then depress the second key. The command becomes
effective when the key is released (e.g. fast changeover).
Table 4.1 Function of the operator control elements on the PMU
