9.1 Program views
You can display a ShopMill program in various views:
● Work plan
● Graphic view
● Parameter screen, either with help screen or graphic view
Note
Help screens / animations
Please note that not all the conceivable kinematics can be displayed in help screens and
animations of the cyclic support.
Work plan
The work plan in the editor provides an overview of the individual machining steps of a program.

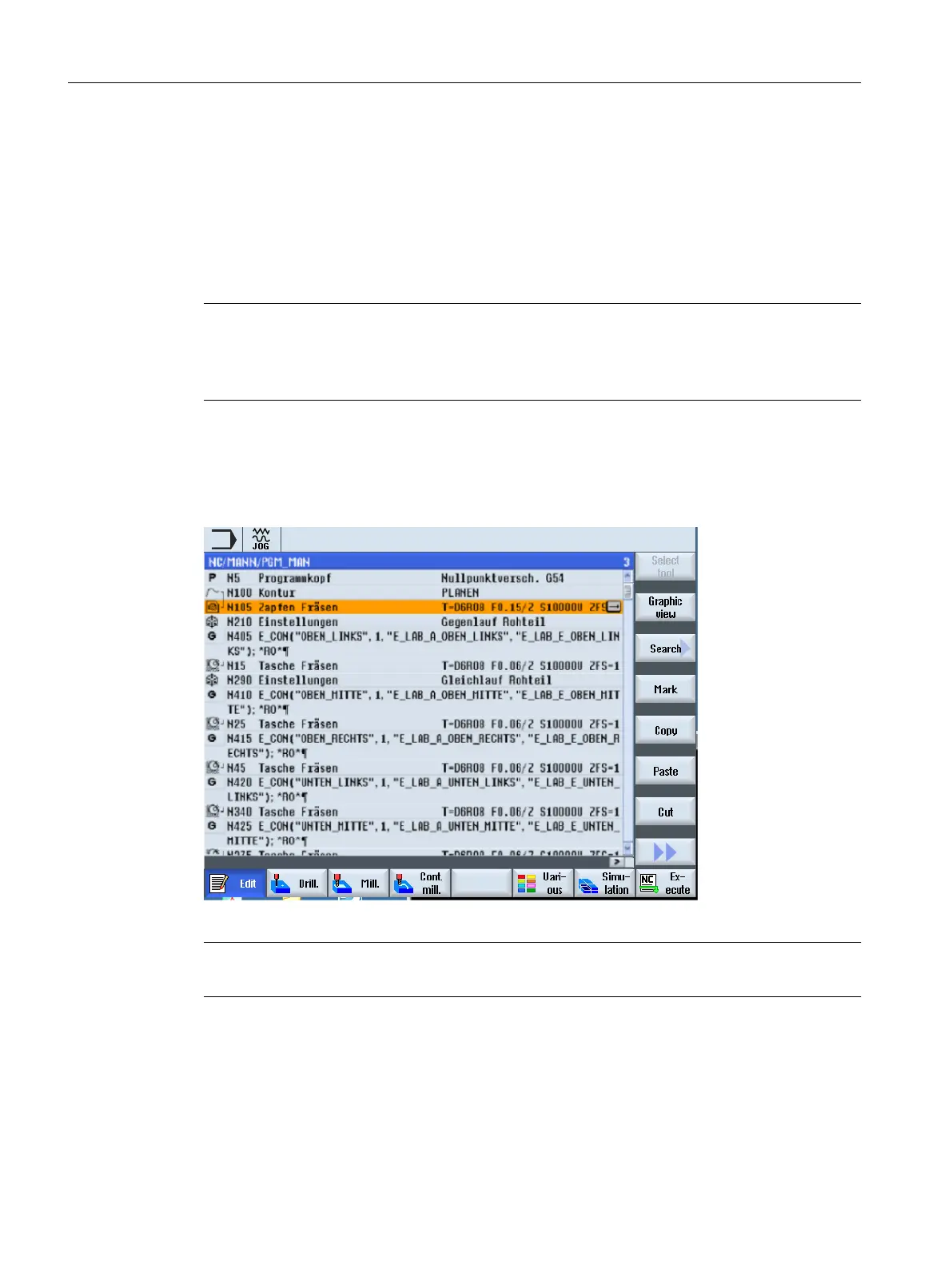

Figure 9-1 Work plan of a ShopMill program
Note
In the program editor settings, you can specify whether the machining times are to be recorded.
Creating a ShopMill program
9.1 Program views
Milling
318 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
