13.16 Working with Multitool
Using a multitool you have the possibility of storing more than one tool at a magazine location.
The multitool itself has two or more locations to accept tools. The tools are directly mounted
on the multitool. The multitool is located at a location in the magazine.
Geometrical arrangement of the tools on the multitool
The geometrical arrangement of the tools is defined by the clearance between the locations
on the multitool.
The clearance between the locations can be defined as follows:
● Using the multitool location number or
● using the angle of the multitool location
If angle is selected here, then the value of the angle must be entered for each multitool location.
Regarding loading and unloading in a magazine, the multitool is treated as a single unit.
13.16.1 Tool list for multitool
If you work with a multitool, the tool list is supplemented by the column for the multitool location
number. As soon as the cursor is at a multitool in the tool list, certain column headings change.
Column header Meaning
Location Magazine/location number
MT loc. Multitool location number
TYPE Symbol for multitool
Multitool name Name of the multitool

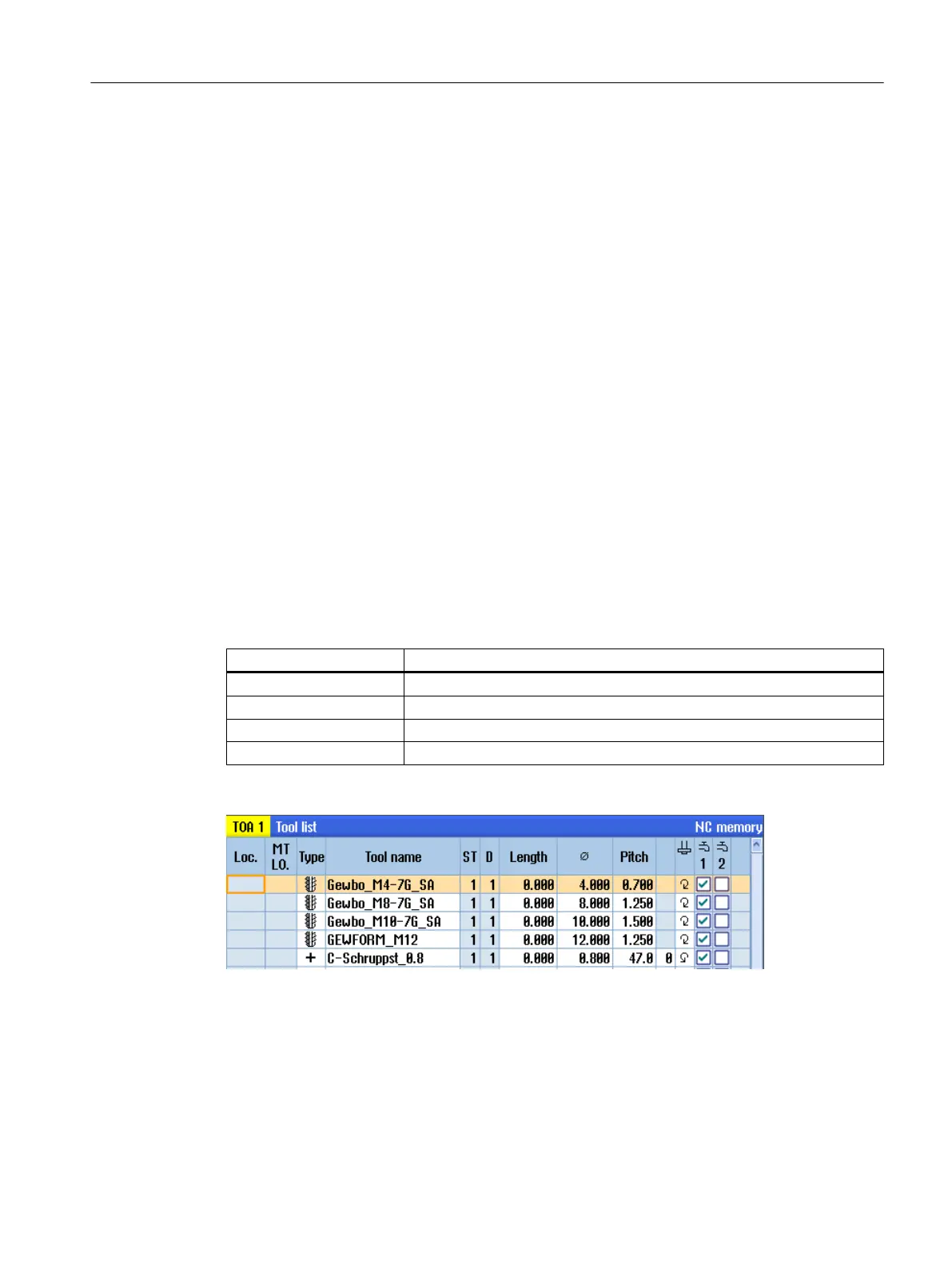

Figure 13-20 Tool list with multitool in the spindle
Tool management
13.16 Working with Multitool
