2.4 User interface
2.4.1 Screen layout

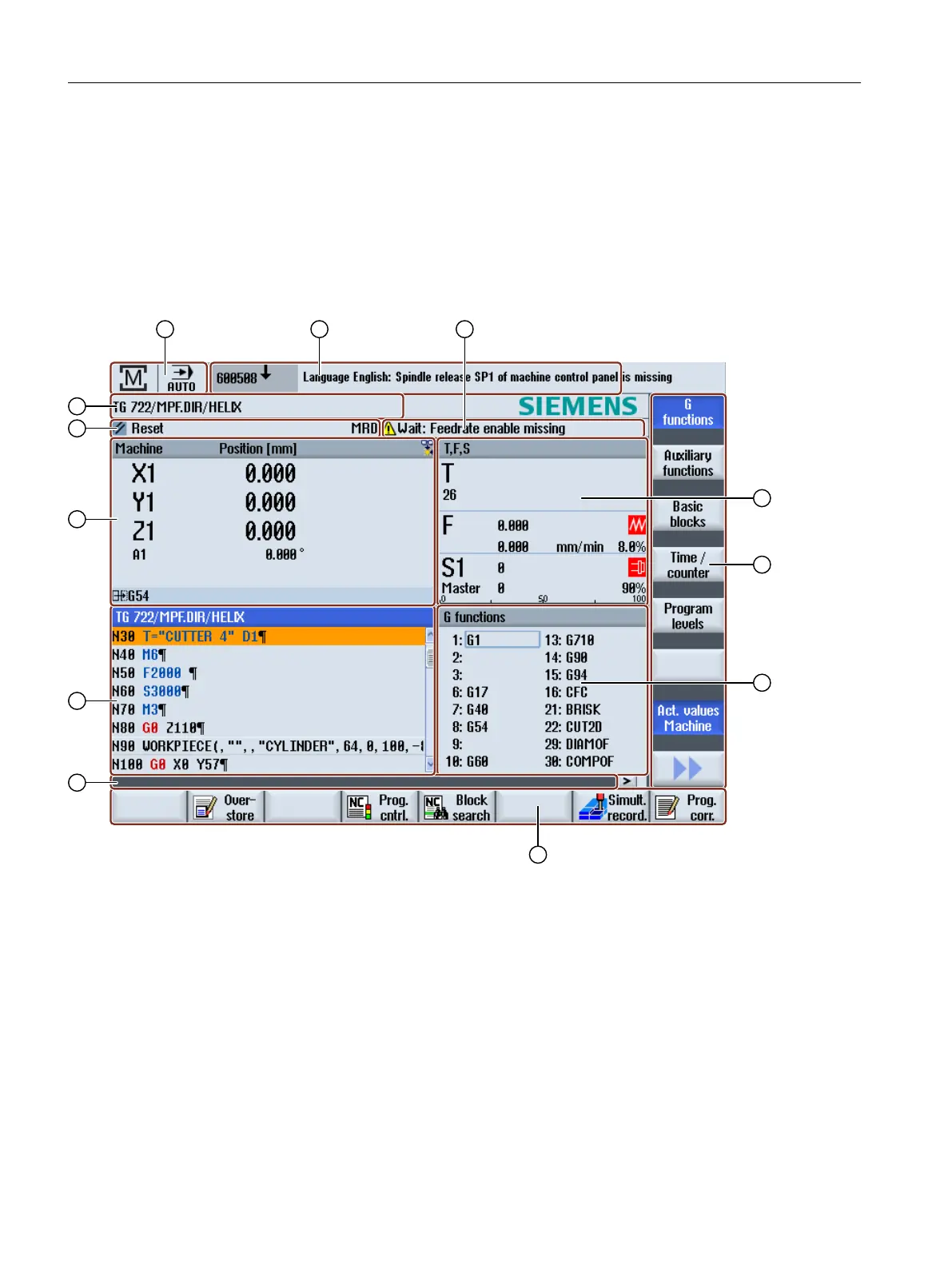

Overview










1 Active operating area and mode
2 Alarm/message line
3 Channel operational messages
4 Display for
● Active tool T
● Current feedrate F
● Active spindle with current status (S)
● Spindle utilization rate in percent
● Name of the active tool holder with display of a rotation in space and plane
● Name of the active kinematic transformation
5 Vertical softkey bar
Introduction
2.4 User interface
Milling
40 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
