17.5 Editing a block
You can only overwrite a program block with a teach-in block of the same type.
The axis values displayed in the relevant window are actual values, not the values to be
overwritten in the block.
Note
If you wish to change any variable in a block in the program block window other than the
position and its parameters, then we recommend alphanumerical input.
Requirement
The program to be processed is selected.

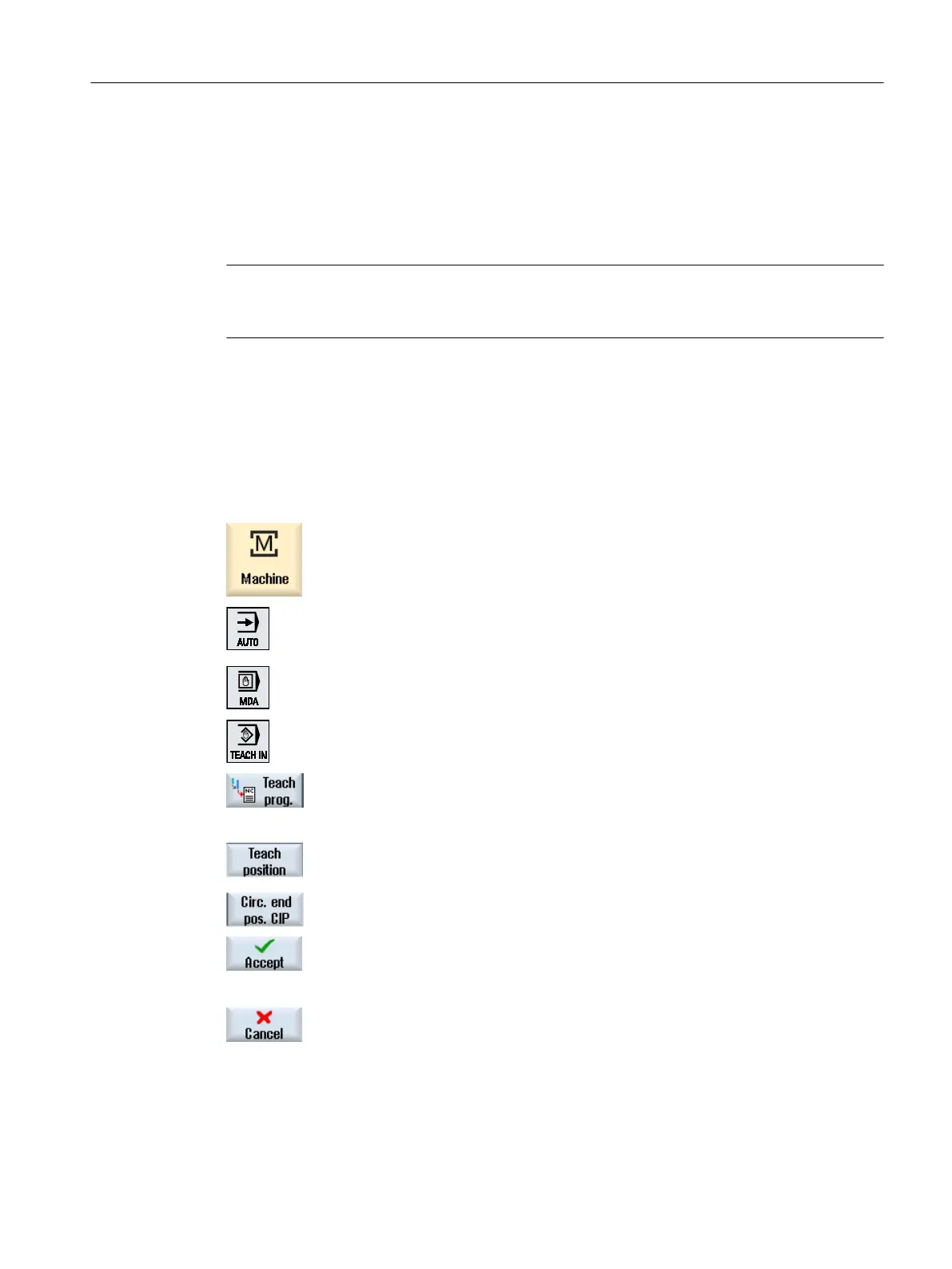

Procedure
1. Select the "Machine" operating area.
2.
Press the <AUTO> or <MDA> key.
3. Press the <TEACH IN> key.
4. Press the "Teach prog." softkey.
5. Click the program block to be edited.
6. Press the relevant softkey "Teach position, "Rap. tra. G0", "Straight line
G1", or "Circ. interm. pos. CIP", and "Circ. end pos. CIP".
The relevant windows with the input fields are displayed.
7. Traverse the axes to the desired position and press the "Accept" softkey.
The program block is taught with the modified values.
- OR -
Press the "Cancel" softkey to cancel the changes.
Teaching in a program
17.5 Editing a block
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 857
