SIPART DR19
C73000-M7474-C34-4
32
5 Controller installation
1)
Required depth to al low for different si zes of main board.
Number of Cut-out
devices width b
2
3
4
:
:
:
10
188 + 1
284 + 1
380 + 1
956 + 1
2)
Stacking with no intermediate spacing is permitted if the
ambient temperature range is not exceeded.
Relay module
6DR2804-8A/B
1) Insert the controller into the front of the prepared panel cut-out.
2) Snap the two locating devices into the openings provided at the
top and bottom of the controller.
3) Tighten the threaded pins within the locating devices until the
controller is securely fixed to the panel.
Where units are mounted side-by-side in enclosed cabinets, ensure
that the permissible maximum ambient temperature of 50 °Catthe
controller is not exceeded.

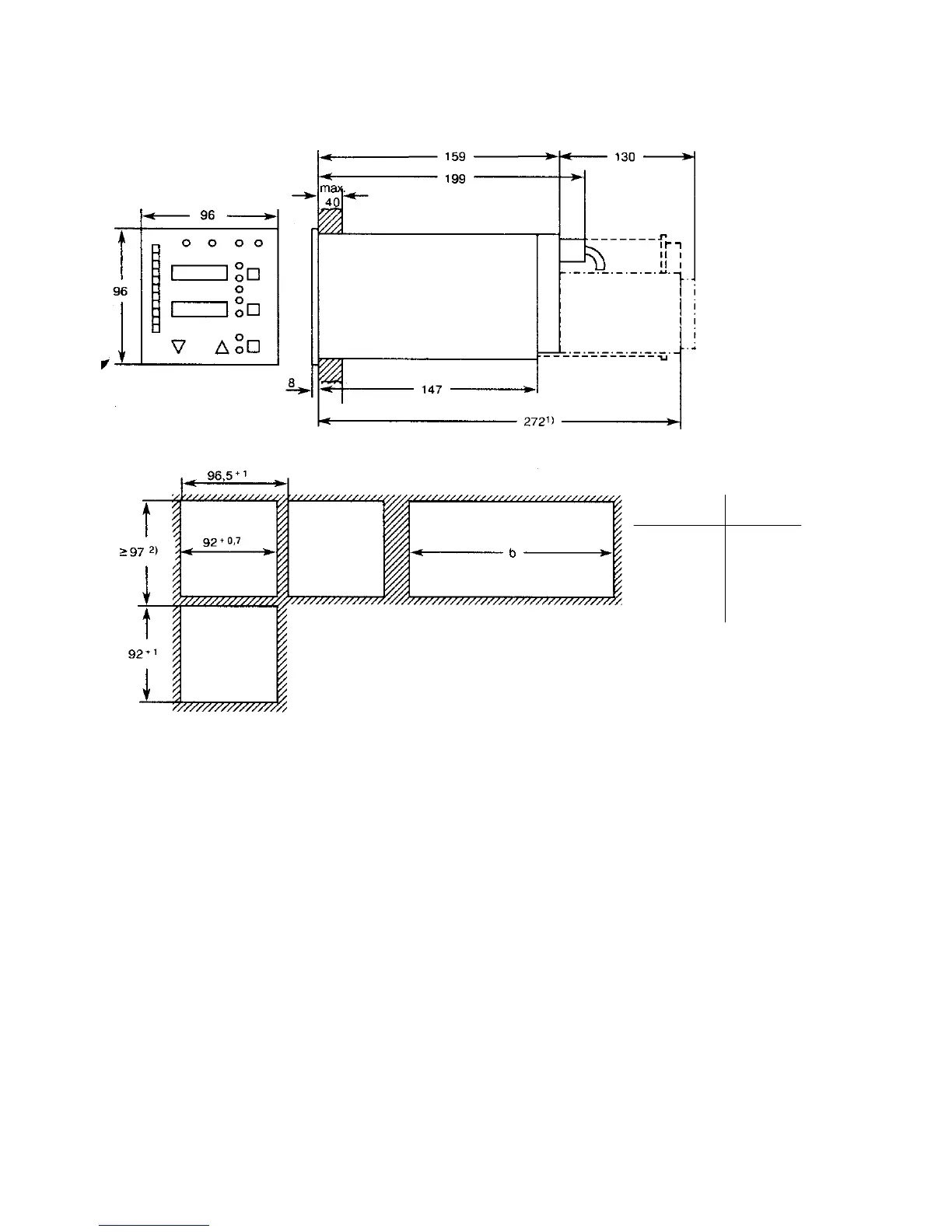

Dimensional
drawings
Procedure
Important
