Siemens SIPART DR19 Assembly And Installation Guide

SIPART DR19
C73000-M7474-C34-4
38
8.4 6DR2801-8C (5DI)
Required settings in the basic unit:
5DI module in slot 3: S22=2
Allocation of the control signals to DI: S23 to S34
Logic of the control signals: S35 to S41
5 781
4 681
3 581
2 481
1 381
9L+
Basic unit
Terminal blocks
Designation according
to DIN 45140
11 ⊥
Basic unit
>13 V
<4,5 V
or
DI6
DI5
DI4
DI3

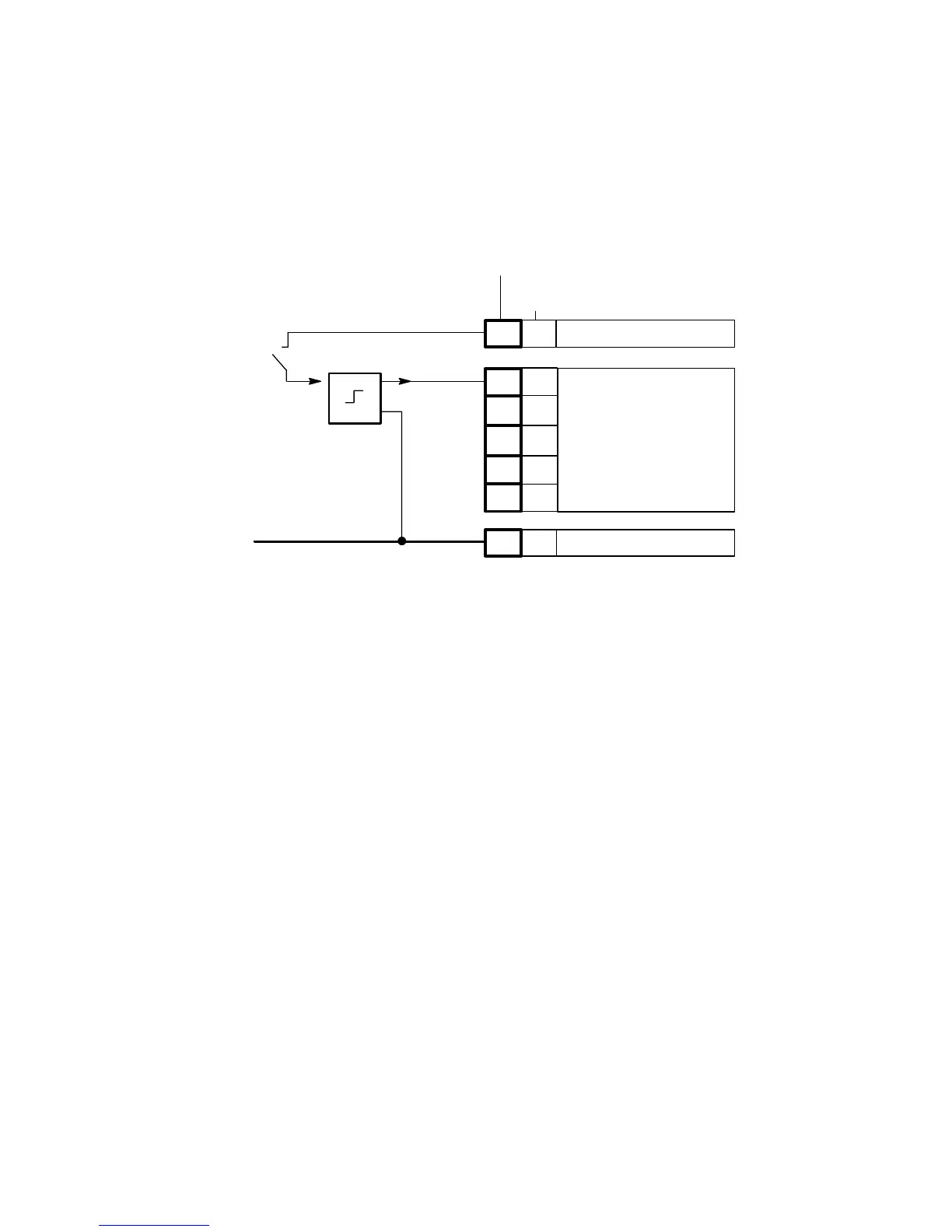

Configuration example for DI7
DI7
Configuration
switches
