Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
116 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting on base plate with DIN rail adapter
Mounting on base plate with DIN rail adapter
Mounting on a base plate with DIN rail adapter is permissible for all device combinations.
Size S0 reversing starters have to be mounted with DIN rail adapters.
The DIN rail adapters contain fastening holes for the screw mounting.
The figure below shows mounting on a base plate with DIN rail adapter for reversing starters
and direct-on-line starters of size S00 / S0.

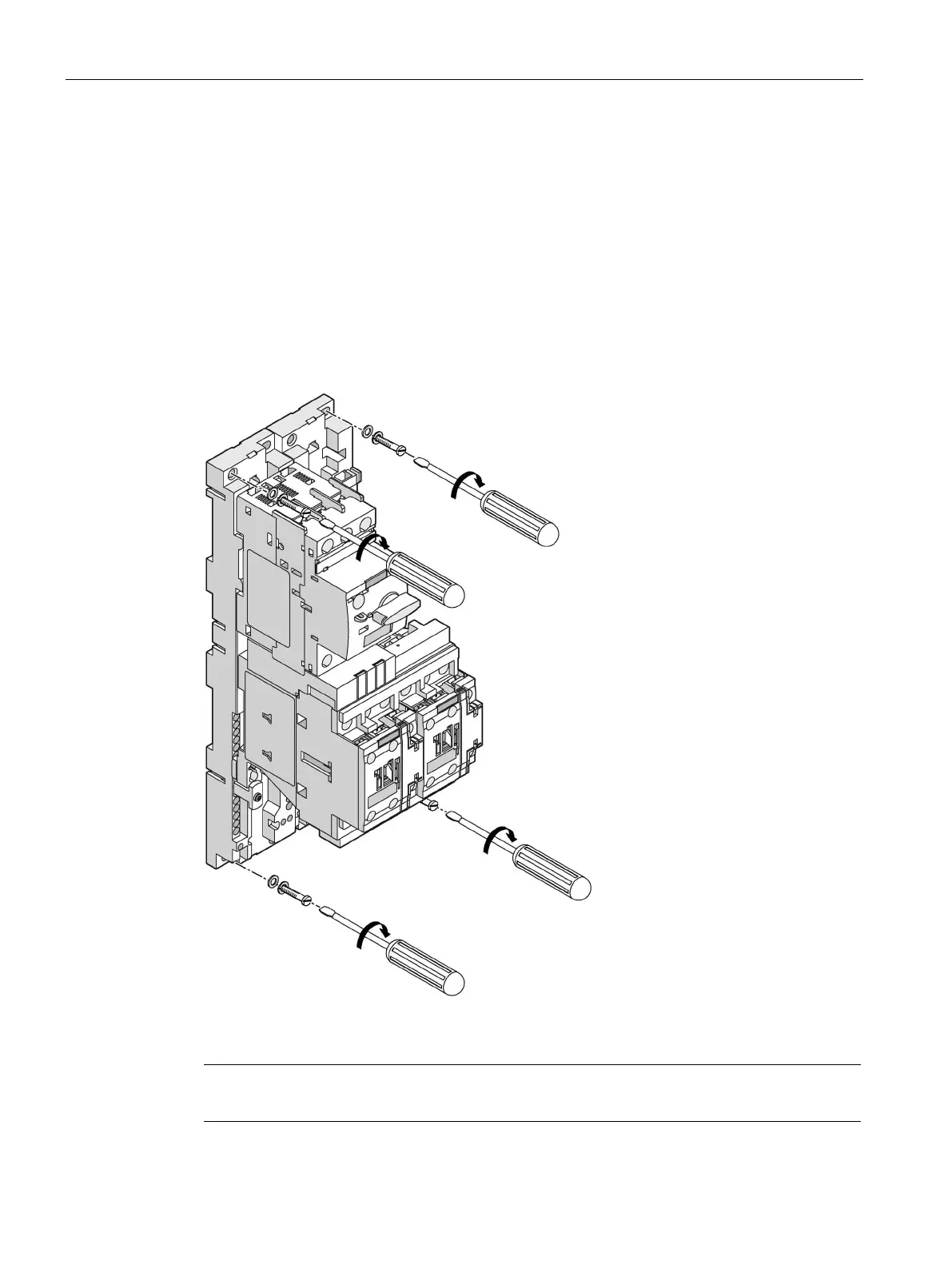

Figure 7-51 Mounting on base plate (reversing starter with DIN rail adapter, screw-type connection
system, size S0)
x M4 screws (1.2 ... 1.6 Nm) should be used to fasten the DIN rail adapter.
