Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
92 Manual, 09/2016, A5E03656507520A/RS-AB/003
1
Busbar adapters
2
Device holders

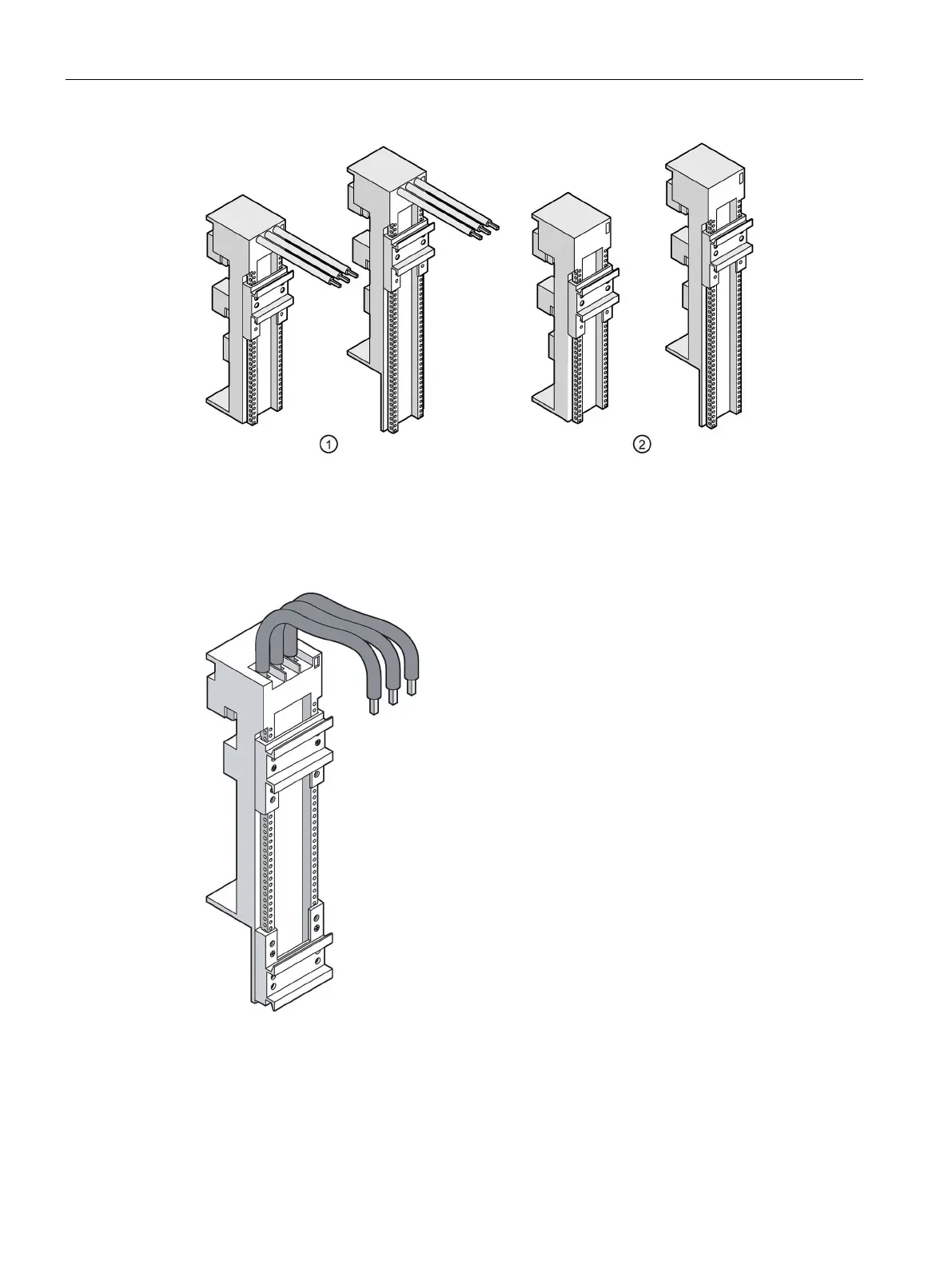

Figure 7-31 Busbar adapters and device holders, two heights and three widths (size S00 / S0)
Figure 7-32 Busbar adapter (size S2)
