Circuit diagrams
12.1 CAx data
SIRIUS - SIRIUS 3RA load feeders
136 Manual, 09/2016, A5E03656507520A/RS-AB/003
3RA2120-.... / 3RA2130-.... / 3RV2.4 + 3RT204

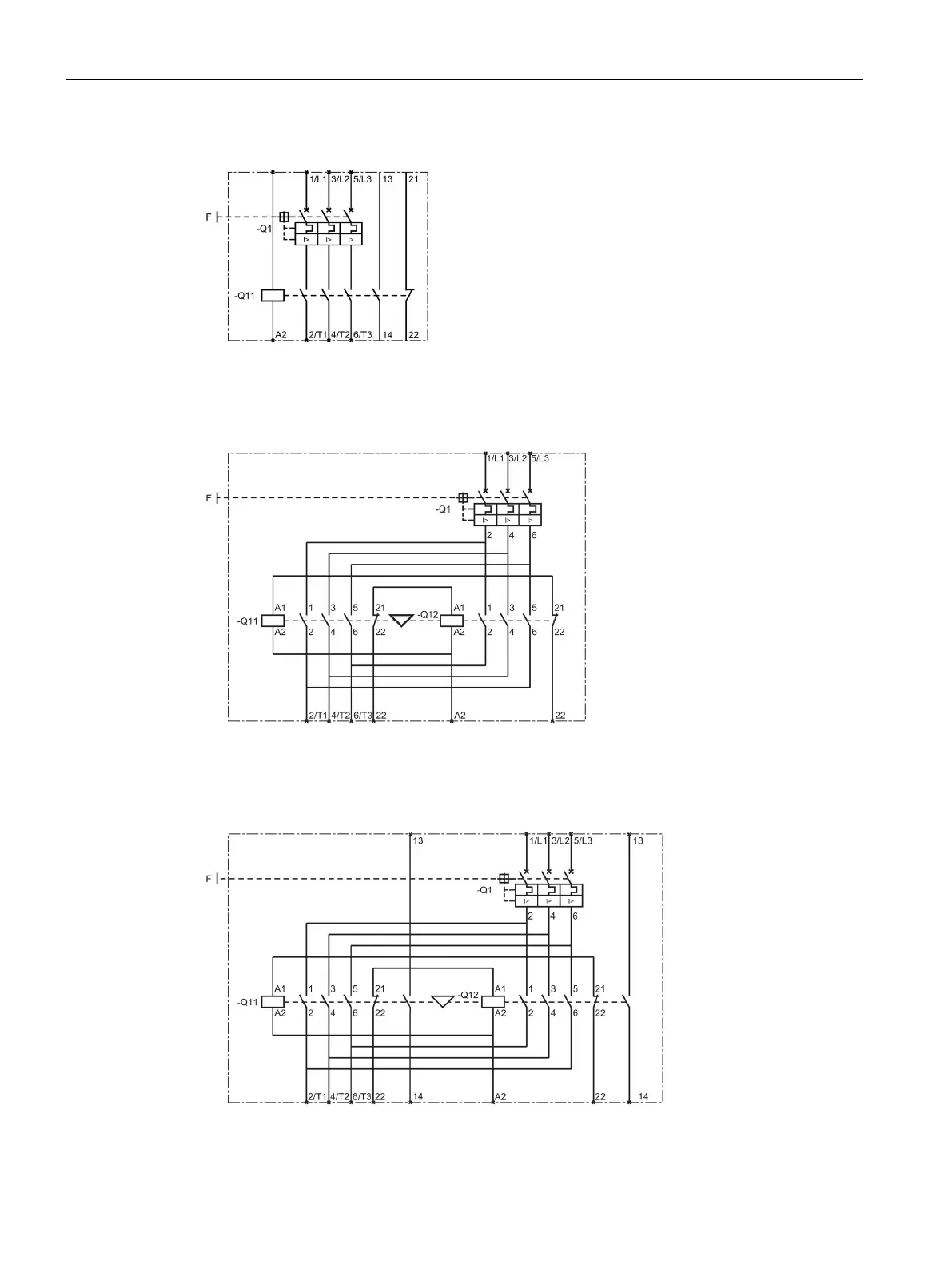

Figure 12-2 Fuseless load feeder, direct-on-line starter, S0 / S2 / S3
3RA2210-....
Figure 12-3 Fuseless load feeder, reversing starter, S00
3RA2220-.... / 3RV2.4 + 3RT204
Figure 12-4 Fuseless load feeder, reversing starter, S0 / S2 / S3
