Dimension drawings (dimensions in mm)
C.3 3RA2 fuseless load feeders – Size S00 to S2 for 60 mm busbar systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
161

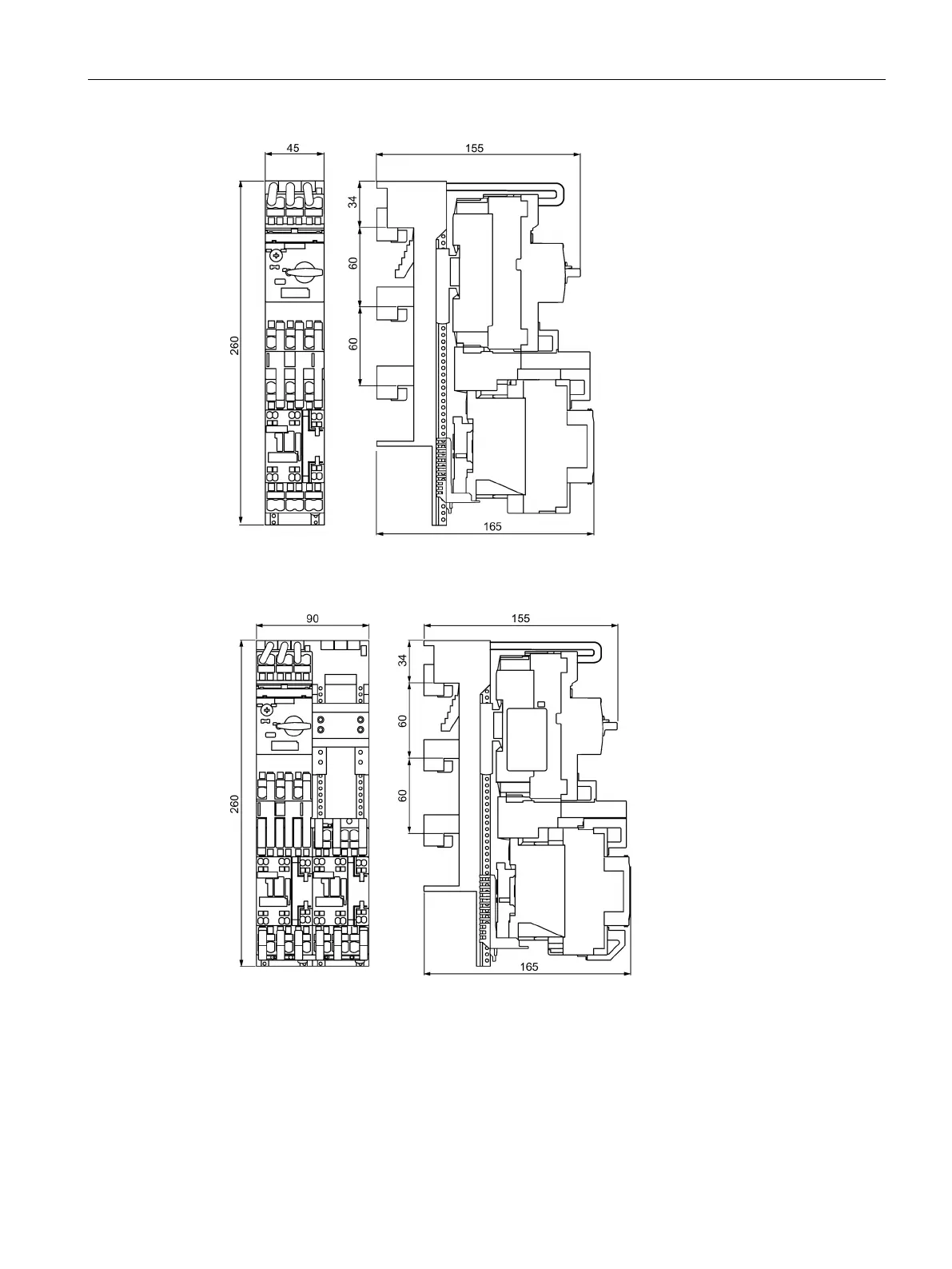

Figure C-28 S0 direct-on-line starter, AC, spring-loaded connection system
3RA2120-..H..-0AP0
Figure C-29 S0 reversing starter, AC, spring-loaded connection system
3RA2220-..H..-0AP0
