Instruments and Indicator Lights
Instrument cluster
Introduction
This chapter contains information on the following subjects:
Overview 30
Revolutions counter 31
Coolant temperature gauge 31
Display 31
Fuel gauge 32
Counter for distance driven 32
32
Display of the second speed 32
Auto Check Control 33
The instrument cluster gives the driver basic information such as the current
speed, engine speed, the state of some vehicle systems and the like.
If there is a fault in the instrument cluster, the Error message will appear in
the display.
Seek help from a specialist garage.
WARNING
Concentrate fully at all times on your driving! As the driver, you are fully re-
sponsible for road safety.
Overview

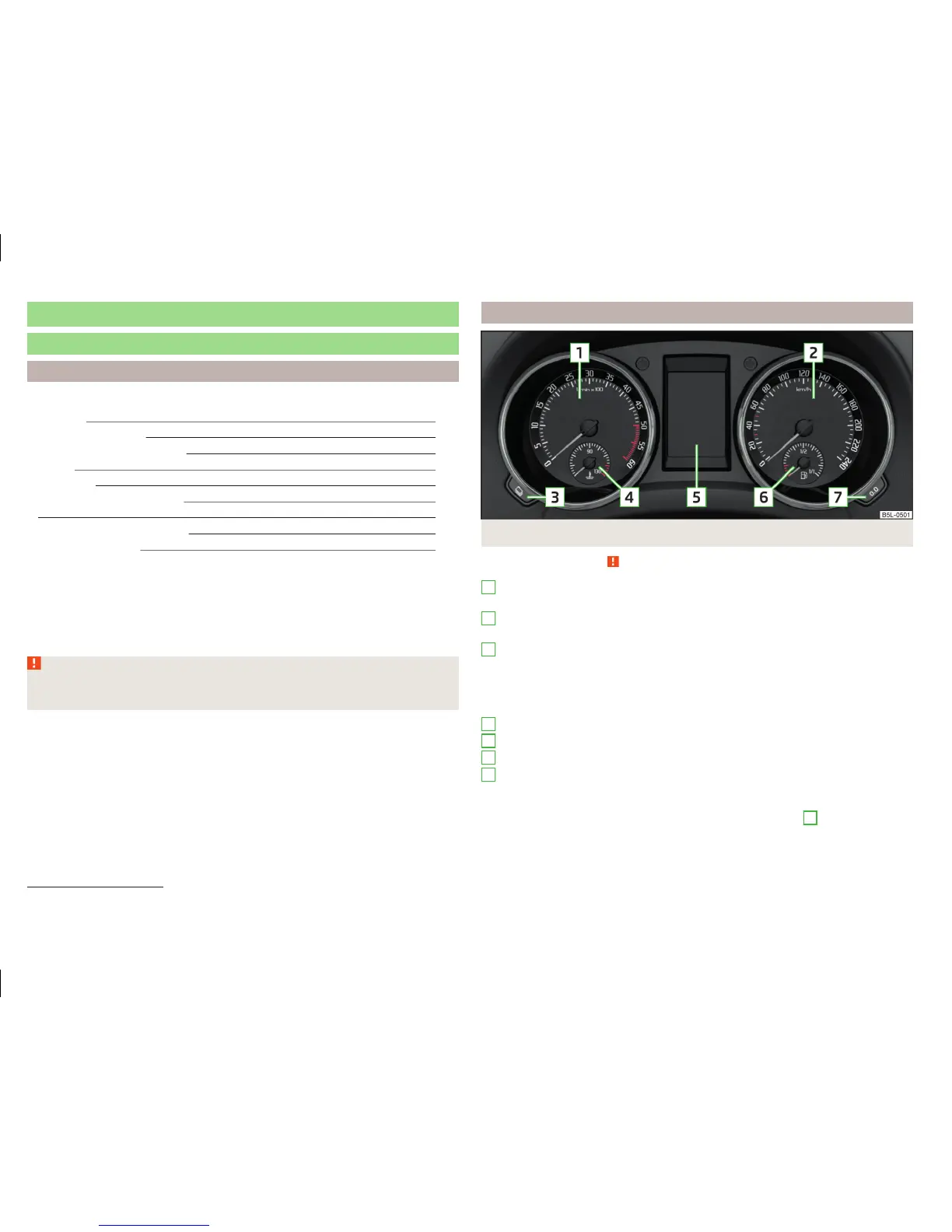

Fig. 21 Instrument cluster
Read and observe on page 30 first.
Engine revolutions counter » page 31
›
with warning lights » page 34
Speedometer
›
with warning lights » page 34
Button for display mode:
›
Time settings » page 32
›
Enable/disable the display of the second speed
1)
» page 32
›
Service intervals - Display of the number of days and kilometres remain-
ing until the next service
1)
» page 50
Coolant temperature gauge » page 31
Display » page 31
Fuel gauge » page 32
Button for:
›
Reset counter for distance travelled (trip) » page 32
›
Setting the time
›
Enable / disable the mode selected by means of the
3
key
1
2
3
4
5
6
7
1)
Applies to vehicles with a segment display.
