Rear centre head restraints

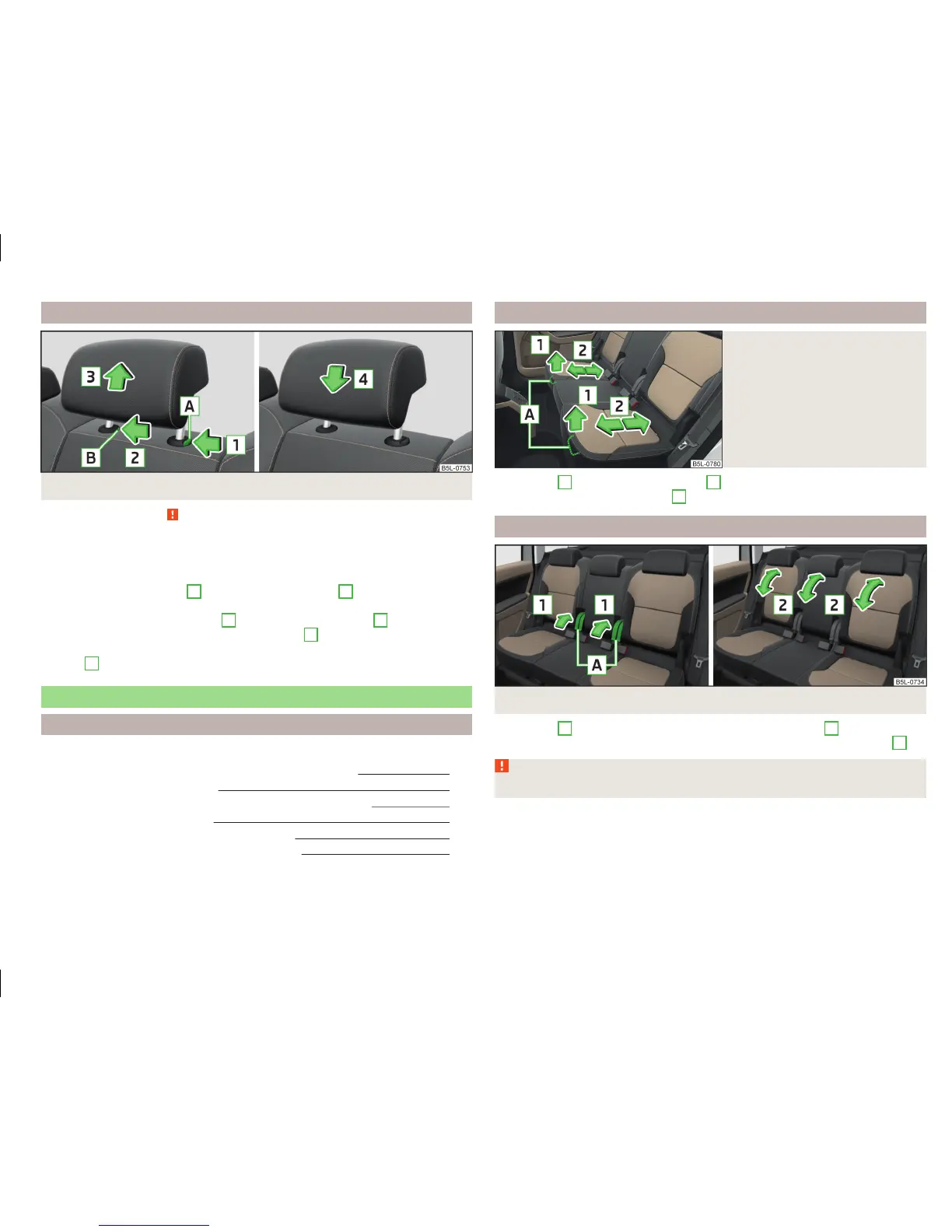

Fig. 66 Rear centre head restraint: Removal / installation
Read and observe
on page 82 first.
Applies to vehicles using the TOP TETHER system.
Removing/installing
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button
A
in the direction of arrow
1
» Fig. 66 , while at
the same time using a flat screwdriver with a max. width of 5 mm to press
the securing button in opening
B
in the direction of arrow
2
.
›
Remove the restraint in the direction of arrow
3
.
›
To re-insert the head restraint, push it far enough down in the direction of
arrow
4
into the seat backrest until the locking button clicks into place.
Rear seats
Introduction
This chapter contains information on the following subjects:
Setting theSetting the seats in the longitudinal direction 83
inclination of the seat backrest
83
Fold seat backrest forwards and fold down seat completely
84
Unlocking and removing seats
84
Setting outer seat in the transverse direction
85
Folding rear seats back into the initial position
85
Setting theSetting the seats in the longitudinal direction
Fig. 67
Adjusting seats in forward/back
direction
›
Pull lever
A
in the direction of arrow
1
and move the seat to the desired po-
sition in the direction of arrow
2
» Fig. 67.
inclination of the seat backrest
Fig. 68 Adjusting the seat backrest
›
Pull lever
A
on the lower portion in the direction of arrow
1
» Fig. 68.
›
Adjust the desired inclination of the seat back in the direction of arrow
2.
WARNING
Check for yourself that the seat backrest is engaged by pulling on it.
83
Seats and head restraints
