STEP 3: CONNECT PLUMBING
Your Slayer Steam X machine will arrive with two (2) plumbing lines
and two (2) drain hoses attached. One (1) additional plumbing line
will arrive inside of the accessories box. A water treatment system
is required, but not included. Read “Water Treatment
Requirements” on page #8 for information about avoiding and
addressing water-related issues.
INCLUDED PARTS
• Two (2) drain hoses with an inside diameter of 5/8 inch
(16 millimeters)
• One (1) 30 inch by 3/8 inch braided hose (in North
America, includes 3/8-inch compression fitting)
• Two (2) 60 inch by 3/8 inch braided hoses, color-coded
• External rotary pump
REQUIRED TOOLS & SUPPLIES
• Water treatment system (see page #8 for
recommendations)
• Adjustable wrench
PROCEDURE
1. Install your water treatment system according to the instructions
provided by the manufacturer, then turn off the main water
supply.
Before use, all treatment systems should be flushed with water
for at least two (2) minutes.
2. Ensure that the machine is in position, with all cords, lines, and
hoses running through the wing channels and counter holes (per
previous steps).
3. Run the two (2) drain hoses to an open gravity drain, ensuring
that the lines always slope downwards.
4. Locate the 30 inch by 3/8 inch braided hose inside of the
accessories box
and use it to connect the water treatment system to the external
rotary pump, tightening with a wrench.
5. Locate the two (2) color-coded braided hoses, attached to the
machine, and the color-coded connections on the pump.
6. Connect each hose to its color-matched connection on the
pump, tightening with a wrench.
Do not turn on the main water supply.

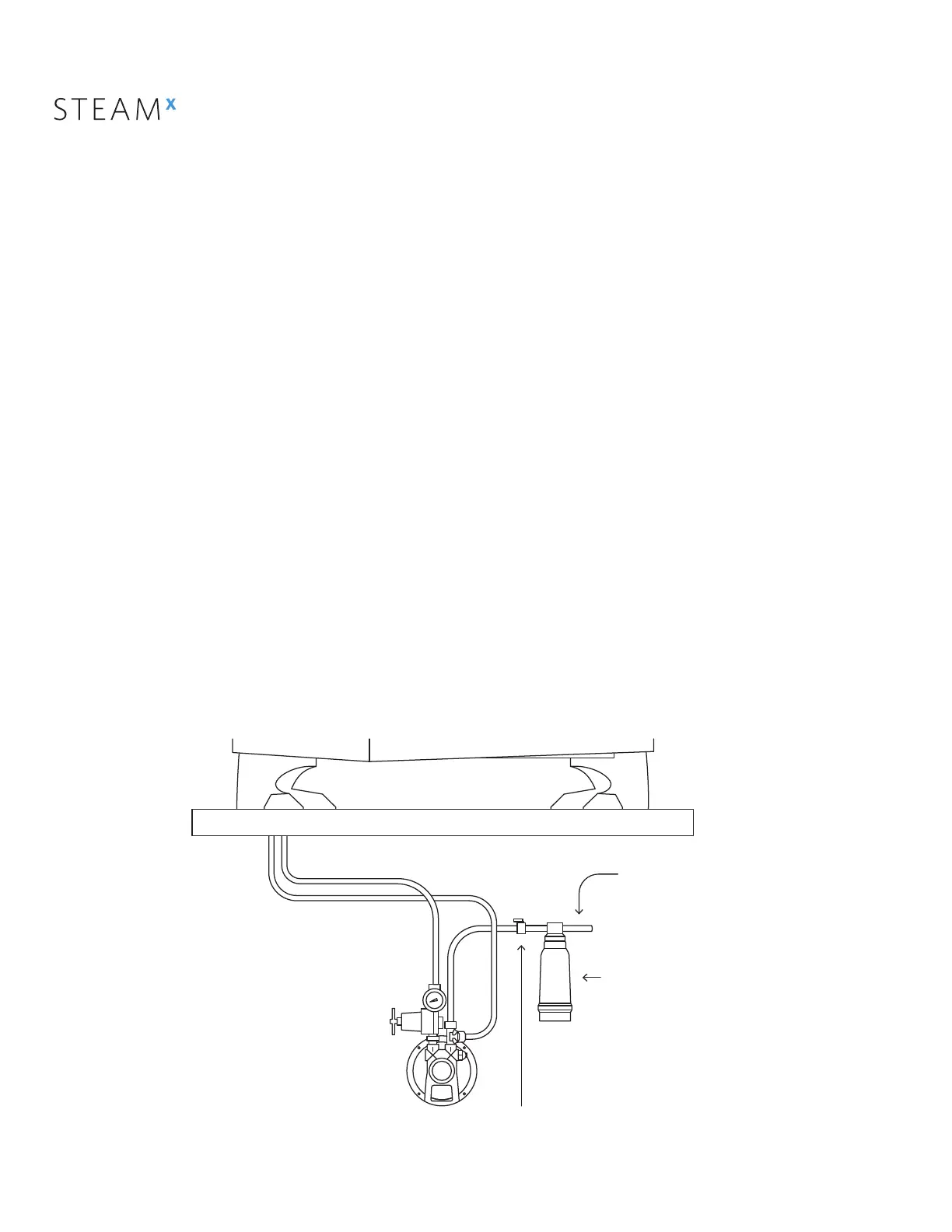

Water filter
Water
line in
Shut-off
