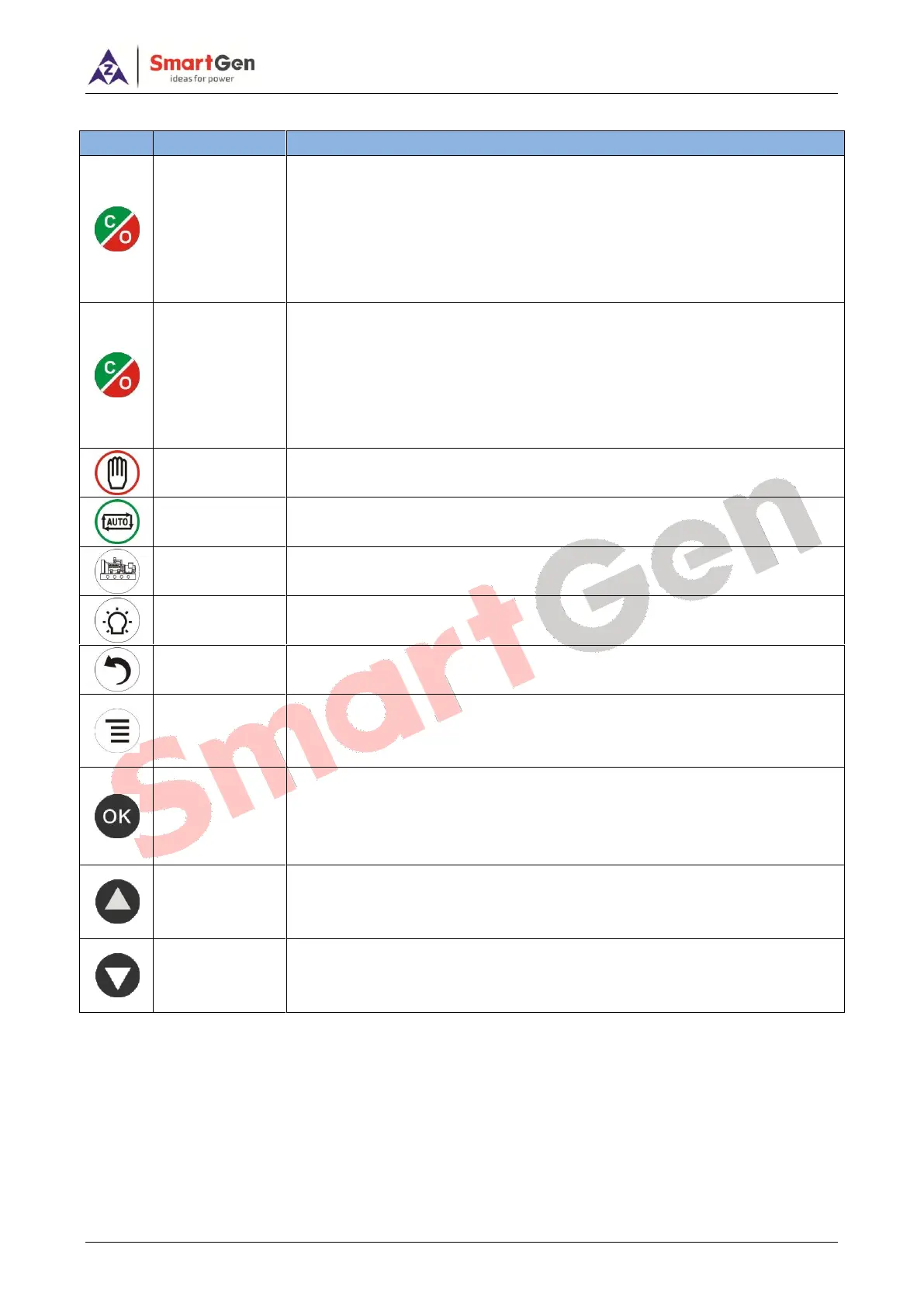

6.2 KEY FUNCTION DESCRIPTION
Active in Manual mode.
Press this key, if S1 load is opened, then the S1 closing relay will be
energized; if S1 load is closed, then the S1 opening relay will be energized.
When sync closing is active, if S2 load is closed, press the key will energize
the S1 Sync closing relay; During the S1 is waiting to synchronizing, pressing
this key will de-energize the S1 sync closing relay.
Active in Manual mode.
Press this key, if S2 load is opened, then the S2 closing relay will be
energized; if S1 load is closed, then the S2 opening relay will be energized.
When sync closing is active, if S2 load is closed, press the key will energize
the S2 Sync closing relay; During the S2 is waiting to synchronizing, pressing
this key will de-energize the S2 sync closing relay.
Set controller as Manual mode.
Set controller as Auto mode.
Press this key to enter into genset manual start/stop operation interface.
Pressing and holding the key to enter lamp test mode, all LED lamps are lit
and LCD screen display black.
Press this key to enter into alarm interface; Pressing it again can clear fault
alarm.
Press this key to return the main screen; Press it again to enter into menu
interface.
When setting parameters, press this key to return prior menu.
In main screen, press this key to scroll page.
In menu screen, press this key can move cursor and confirm setting
information.
In main screen, press this key to scroll screen.
In menu interface, press this key to up cursor or increase value in setting
menu.
In main screen, press this key to scroll screen.
In menu interface, press this key to down cursor or decrease value in setting
menu.
