HAT700 SERIES ATS CONTROLLER USER MANUAL
HAT700 Series ATS Controller 2018-12-13 Version 1.5 Page 32 of 51
9.3.3 CUSTOM PERIOD OUTPUT

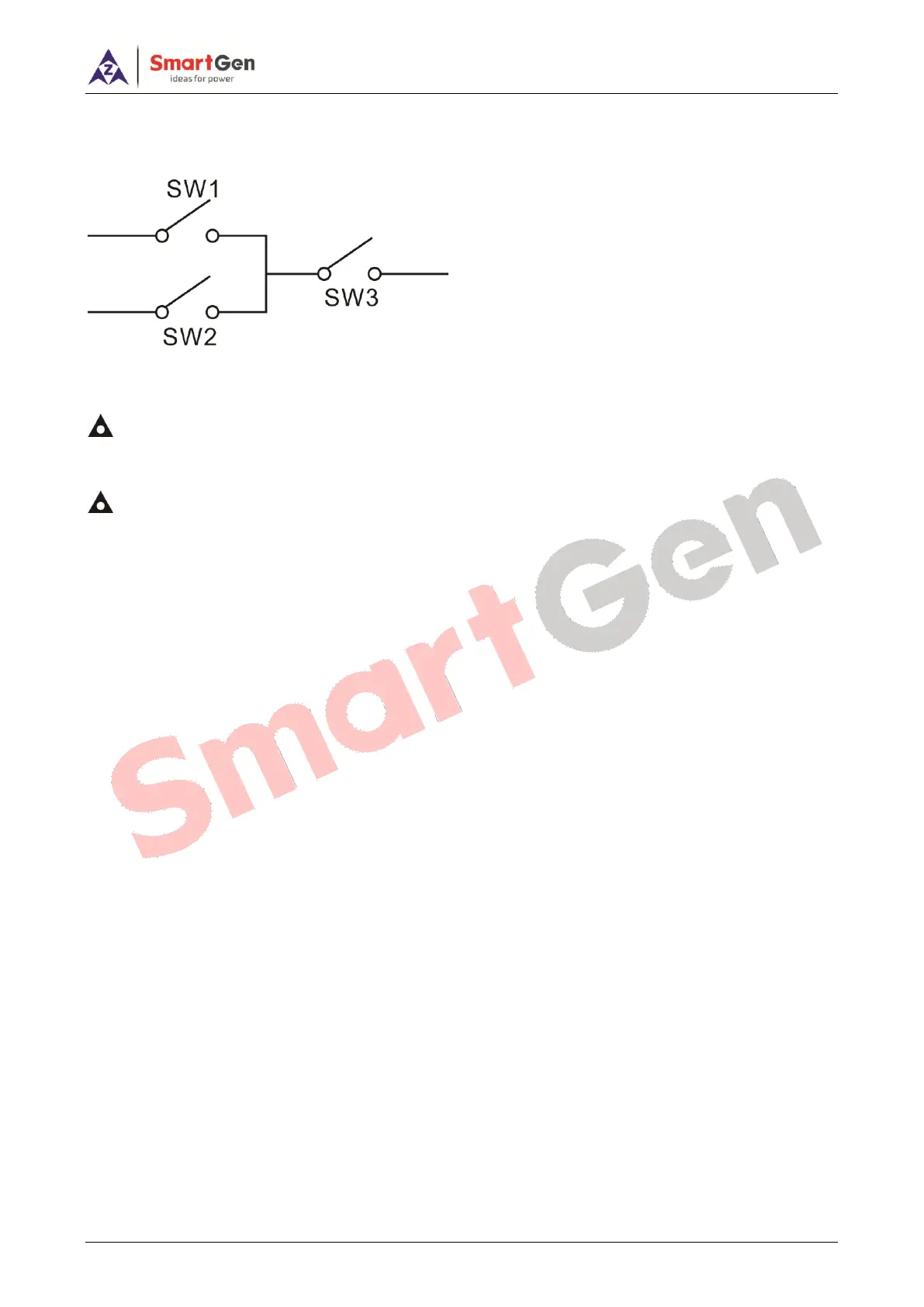

Defined combination output is composed by 3 parts, condition output SW1 or SW2 and condition output
SW3.
SW1 or SW2 is TRUE, while SW3 is TRUE, Defined combination output is active;
SW1 and SW2 are FALSE, or SW3 is FALSE, Defined combination output isdeactivated.
NOTE: SW1, SW2, SW3 can be set as any contents except for “defined combination output” in the
output setting.
NOTE: 3 parts of defined combination output (SW1, SW2, SW3) couldn’t include or recursively include
themselves.
Example,
Contents of probably condition output SW1: output port 1 is active;
Close when probably condition output SW1 is active /inactive: close when active (disconnect when
inactive);
Contents of probably condition output SW2, output port 2 is active;
Close when probably condition output SW2 is active /inactive: close when active (disconnect when
inactive);
Contents of probably condition output SW3: output port 3 is active;
Close when probably condition output SW3 is active /inactive: close when active (disconnect when
inactive);
When input port 1 active or input port 2 active, if input port 3 is active, Defined combination output is
outputting; If input port 3 inactive, Defined combination output is not outputting;
When input port 1 inactive and input port 2 inactive, whatever input port 3 is active or not, Defined
combination output is not outputting.
