HAT700 SERIES ATS CONTROLLER USER MANUAL
HAT700 Series ATS Controller 2018-12-13 Version 1.5 Page 5 of 51
1 OVERVIEW
HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic
measurement, LCD display, and digital communication. It combines digital, intelligence and networking.
Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase)
measuring and make accurate judgment; in addition, the corresponding digital output port will active
when there is over/under voltage, over/under frequency, loss of phase and other abnormal condition
occurs. This controller has full consideration in various application of ATS (automatic transfer system)
and can be directly used for PC ATS, CB ATS, CC ATS etc. It has compact structure, advanced circuits,
simple wiring and high reliability, and can be widely used in electrical devices, automatic control and
testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal
administration, intelligent building, etc.
2 ORDER INFORMATION AND MODULES COMPARISON

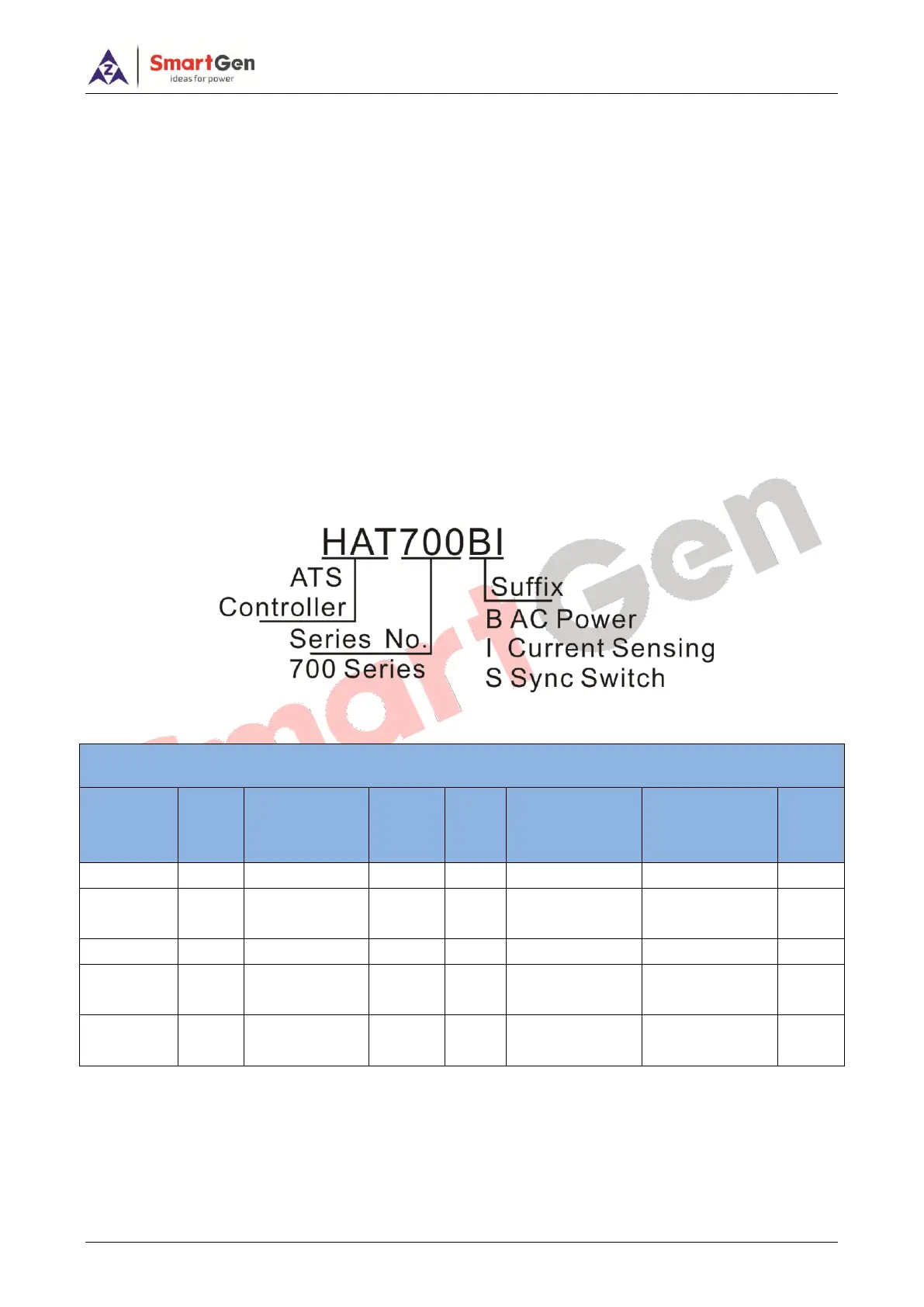

2.1 ORDER INFORMATION
2.2 MODULES COMPARISON
Function
Type
DC
Power
AC Power
Supply
AC
Current &
Power
Sync
Close
Input Ports
(Fixed+Config.)
Output Ports
(Fixed+Config.)
RS485
HAT700
●
2+4
2+6
●
HAT700B
●
●
(LN90V~280V)
2+4
2+6
●
HAT700I
●
●
2+4
2+6
●
HAT700BI
●
●
(LN90V~280V)
●
2+4
2+6
●
HAT700S
●
●
(LN90V~280V)
●
●
2+4
2+6
●
