6 OPERATION

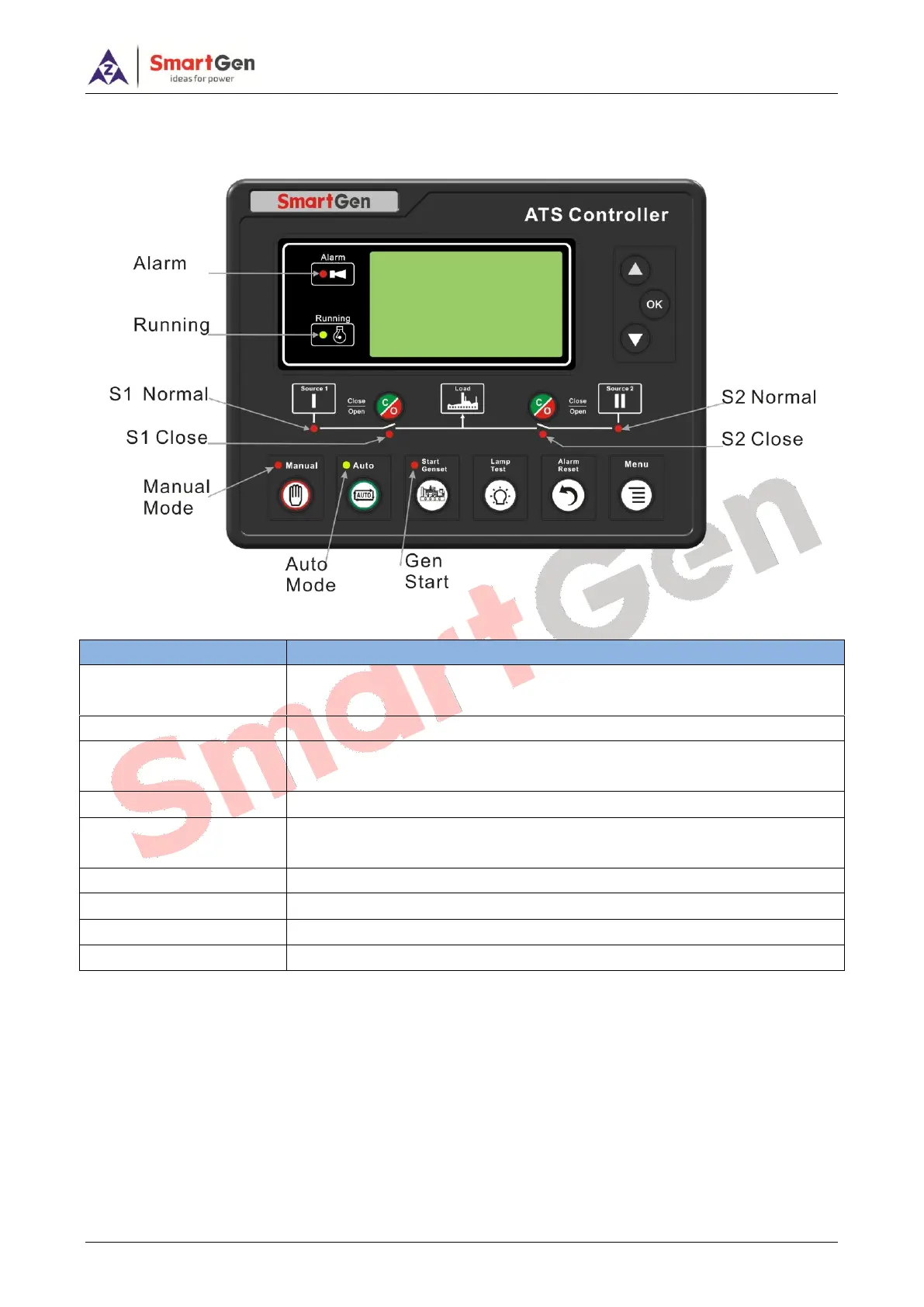

6.1 INDICATORS
INDICATORS DESCRIPTION
Indicator Type
Description
Alarm
Slow flashing (1time per sec) when warn alarm occurs.
Fast flashing (5 times per sec) when fault alarm occurs.
Running
Flash when module countdown running (1time per sec)
S1 Power Normal
It is light on when S1 is normal; flashing when S1 is abnormal (1time per
sec); off when there is no S1 power.
S1 Close Status
It is light on when S1 close input is activated.
S2 Power Normal
It is light on when S2 is normal; flashing when S2 is abnormal (1time per
sec); off when there is no S2 power.
S2 Close Status
It is light on when S2 close input is activated.
Manual Mode
It is light on when the module is in Manual mode.
Auto Mode
It is light on when the module is in Auto mode.
Generator Start
It is light on when the Start signal is be initiated.
