Smartgen HGM6510 User Manual

HGM6510 Genset Parallel Unit
ISSUE 2013-07-15
Version 1.7
Page 12 of 52
HGM6510 GENSET PARALLEL UNIT

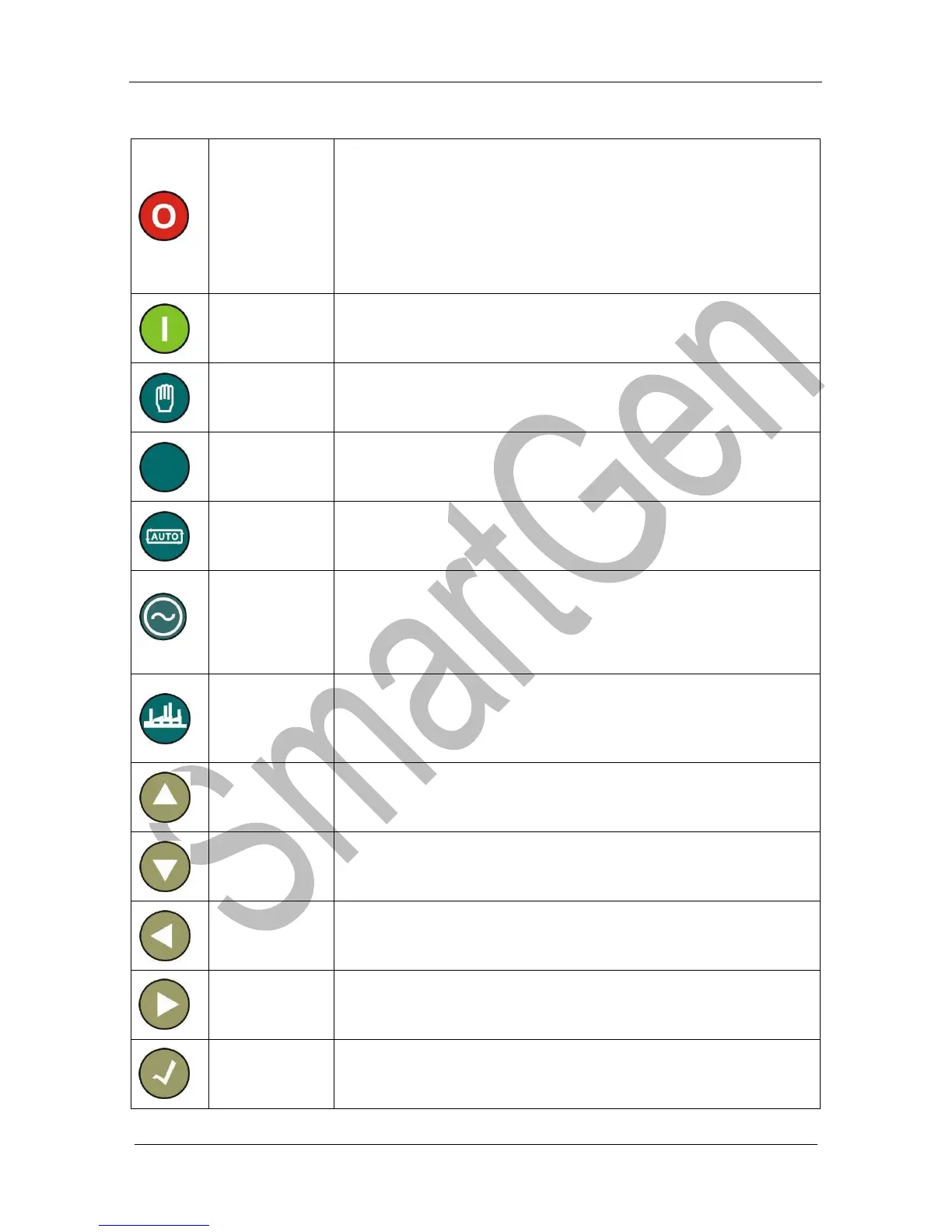

4.2 PUSHBUTTONS
Stop/Reset
When the genset is running, pressing this button will ramp off
and stop running the generator;
In case of alarm condition, pressing the button will reset alarm;
In stop mode, pressing and holding the button for 3 seconds
will test indicator lights (lamp test);
During stopping process, press this button again to stop
generator immediately.
Start
In manual mode, pressing this button will start the gen-set
(The button has effect in manual mode only)
Manual
Press this key and controller enters in Manual mode.
Reserved
Auto
Press this key and controller enters in Auto mode.
Gen Closed
In manual mode, when busbar has voltage, pressing the
button will synchronize generator with bus and, after that,
parallel generator with bus; when busbar has no voltage,
pressing the key will close generator breaker immediately.
Gen Open
In manual mode, when parallel mode is active, pressing the
button will transfer load to other generators and then open
breaker; when parallel mode is deactivated, pressing the
button will open the breaker immediately.
Up
Scrolls the screen up;
Increase the set value in parameter setting menu.
Down
Scrolls the screen down;
Decrease the set value in parameter setting menu.
Left
Scrolls the screen left;
Move cursor left in parameter setting menu.
Right
Scrolls the screen right;
Move cursor right in parameter setting menu.
Confirm
Confirm the set value in parameter setting menu.
