HGM6510 GENSET PARALLEL UNIT
HGM6510 Genset Parallel Unit
ISSUE 2013-07-15
Version 1.7
Page 42 of 52
10 BACK PANEL

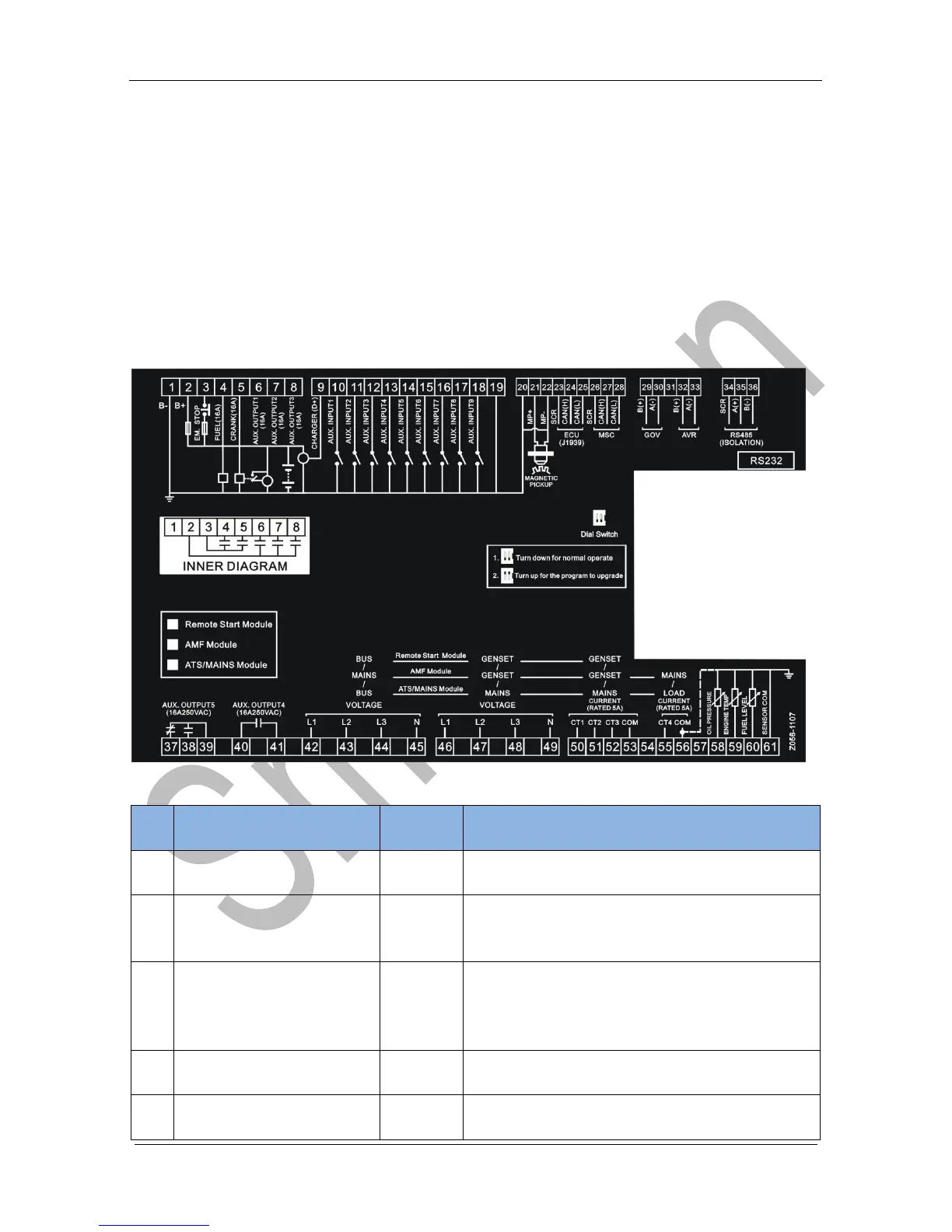

HGM6510 controller back panel is shown below:
Terminal connections description
9 EVENT LOG
HGM6510 controller can save a maximum of 99 event logs, including shutdown type,
date and time (warning alarms are not recorded). Once the log is full (99 records), any
subsequent shutdown entry will overwrite the oldest entry in the log, so the log will always
contain the 99 most recent abnormal events.
Pin
Function
Cable
Size
Description
1
B-
2.5mm
2
DC power supply negative input. Connected
with negative of starter battery.
2
B+
2.5mm
2
DC power supply positive input. Connected
with positive of starter battery. Max. 20A
fuse is recommended.
3
Emergency Stop
2.5mm
2
Connected with DC power supply via
emergency stop button. Also supply power
to fuel relay and start relay. Max. 30A fuse is
recommended.
4
Fuel Relay Output
2.5mm
2
DC power is supplied by terminal 3, rated
16A
5
Crank
2.5mm
2
DC power is supplied by terminal 3, rated
16A
