3-2 Reference Signals
Chapter 3 Setting Up the VTR
3-2 Reference Signals
This section describes how reference signals for the video
output are selected.

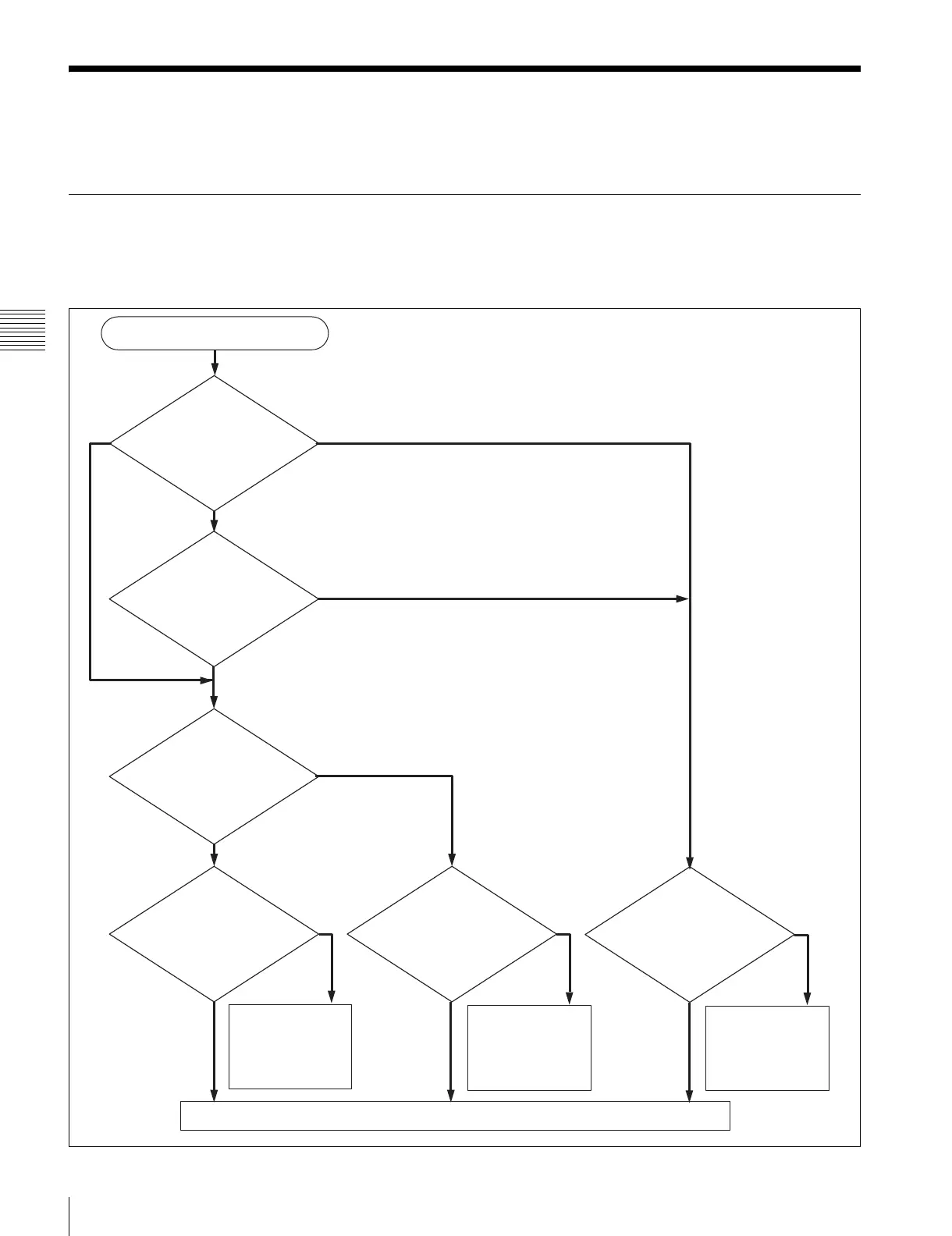

3-2-1 Reference Signals for Output Video
Depending on the operating condition, VTR SETUP menu
settings, the input signal, and the video output signal from
the VTR can be synchronized as follows.
Start
ext.
What is the setting of
the VTR SETUP menu
item 005 “SERVO/AV
REFERENCE select”?
input
auto
Is the VTR currently
recording or is EDIT
PRESENT on?
No
Yes
What is the setting
of the VTR SETUP
menu item 006
“EXTERNAL
REFERENCE
select”?
extrn SD
extrn HD
Is there a signal of the
correct frequency on
the REF. INPUT 1 or
2
a)
connector?
Is there a signal of the
correct frequency on
the REF. INPUT 1 or
2
a)
connector?
Yes
Yes
Is there an input
signal on the HD SDI
INPUT connector?
Yes
No
No
Synchronization
with the reference
video signal input to
the REF. INPUT 1
or 2
a)
connector
Synchronization
with the video signal
input to the REF.
INPUT 1 or 2
a)
connector
Synchronization
with the video signal
input to the HD SDI
INPUT connector
No
No external synchronization (synchronization is internal)
a) The signal on the REF. INPUT 2 connector is the signal for FORMAT CONV.
output. Use the “A08: FC REFERENCE select” menu item to switch between
HD and SD for the signal input to the REF. INPUT 2 connector.
