1-15
.4-1
DRIVE REPAIRING
1-4-1.
Preparation
1-4-2.
Checking Flow ~ Drive (BU) section ~
• ESD Measures
It is necessary to check the working space ESD condition
before starting the Drive Part (BU) repairs
The ESD-resistance of BD Laser is weaker than DVD/CD Laser
To prevent ESD destruction, please make sure the working
space and human ESD.
Drive flowchart
BDP-S480 can play the BD-disc
BLX-104
BDP-S480 can play the DVD/CD-disc
Check Drive Power Supply
CN301 Pin 3: 12V
IC309 Pin 1: 5V
Check PS301, PS302
Replace PS when open
Check / replace the FFC cable, then check
BDP-S480 operates normally
OP FFC cable (1-838-615-11)
Check the Optical Block Unit (BU) by
service mode. (Flowchart zz)
BU IOP is OK?
Replace the Optical Block Unit (BU)
Optical Block Unit (BU) replace
(Flowchart yy)
OK
DVD: HLX-513
CD: HLX-A1
NO
YES
NO
YES
YES
NO
NO
NO
SPD FFC cable (1-838-617-11)
•

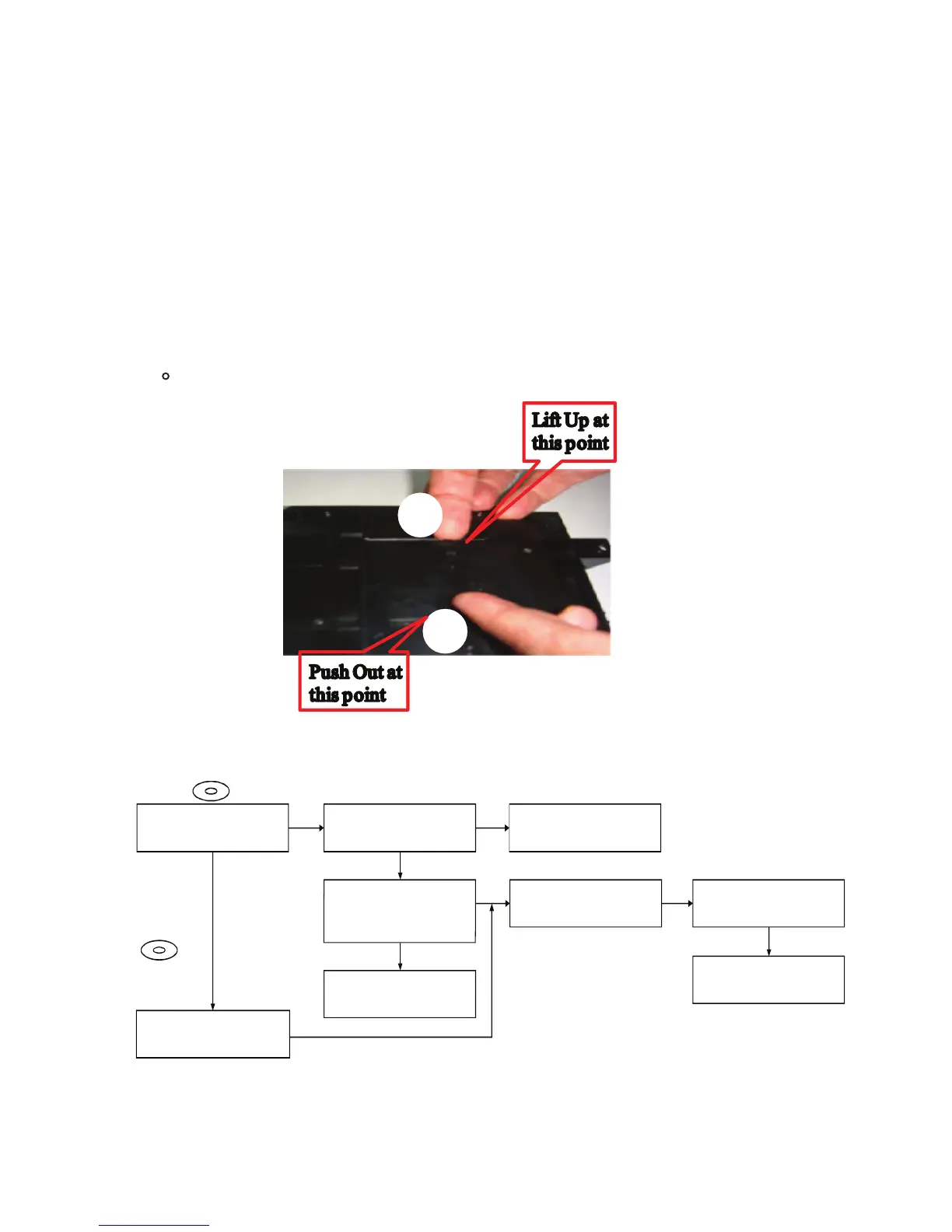

How to open FFC Holder. Refer below picture.
1
2
BDP-BX58/S480/S483/S580
To Next Page
