There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.

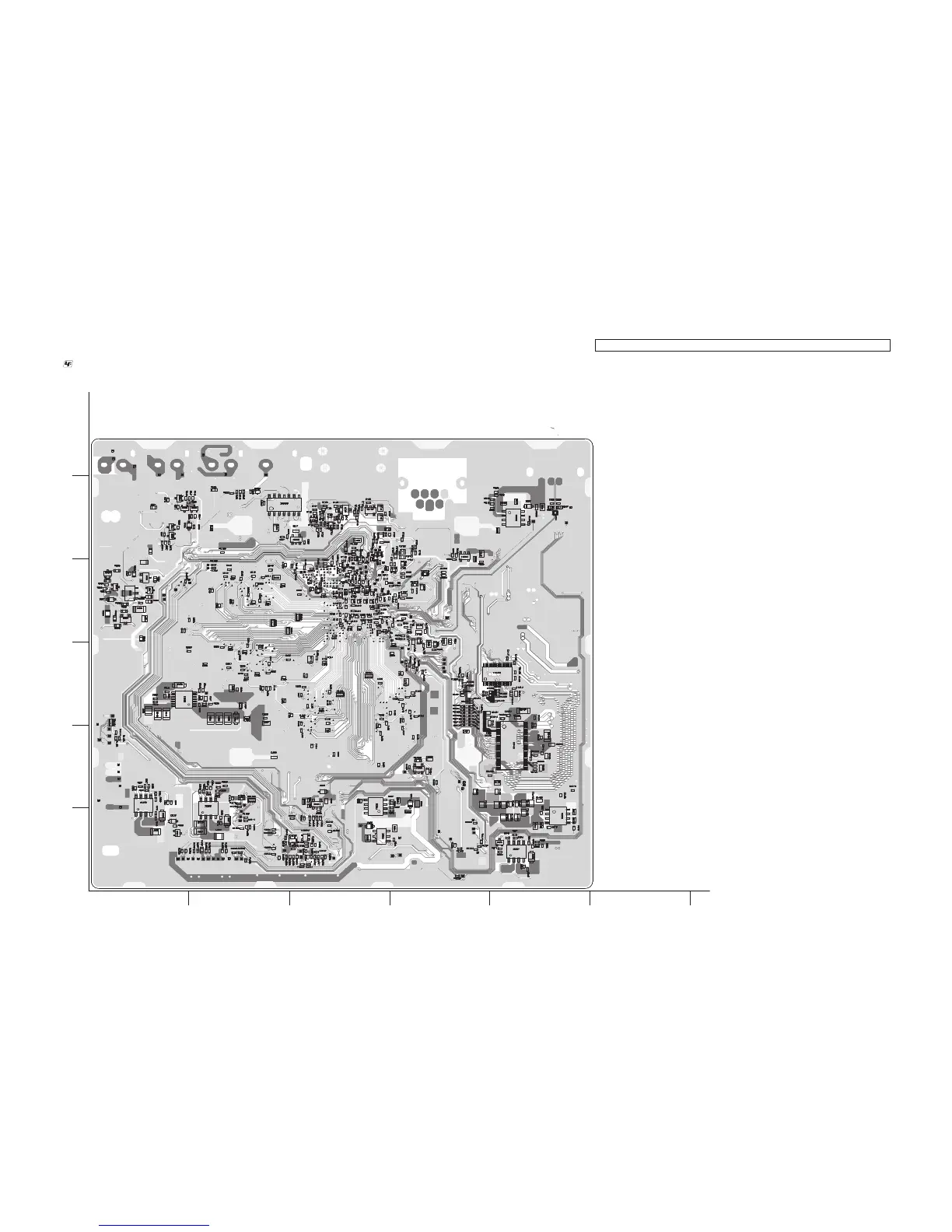

5-5. MB-139 BOARD (MAIN) PRINTED WIRING BOARD (SIDE B) • See page 2-5 for circuit boards location.
- Ref. No.: MB-139 board; 10,000 series -
BDP-BX58/S480/S483/S580
5-5E
MB-139 BOARD (SIDE B)
MB-139 BOARD
(SIDE B)
A
B
C
D
E
F
1
2
5
43
6
D307
A-2
D305
A-5
D308
A-1
D306
C-1
D603
A-3
D604
E-5
D602
A-3
D601
B-4
D607
E-5
D304
C-2
D311
B-3
IC503 E-5
IC1203
A-4
IC303
E-2
IC302
A-2
IC301
B-3
IC304
E-4
IC307
A-5
IC703
E-3
IC310
B-1
IC308
C-1
IC601 B-3
IC1204
A-3
IC1202
A-3
IC1381
B-4
IC702
E-3
IC1003
E-2
IC504 A-3
Q701
E-3
Q305
A-5
Q702
E-3
Q906
E-1
Q908
D-1
Q909
E-1
Q911
E-1
Q915
D-1
Q916
D-1
Q917
D-1
Q905
E-2
Q304
A-1
D905
E-1
D906
D-1
D901
D-1
D804
E-2
D907
D-1
IC1401
C-4
IC2401
B-5

Sony BDP-S580 Specifications

Power

power consumption	22W
power frequency	60Hz
power voltage	120V

Connectivity

composite video outputs	1
ethernet connections	1
hdmi outputs	1

Dimensions

width	17"
height	1.4"
depth	7.8"
