Sony BDP-S580 - Board (FRONT RIGHT) Schematic Diagram

4-3
1
A
B
C
D
E
F
G
H
I
J
2
12
13
11
10
98765
43
14

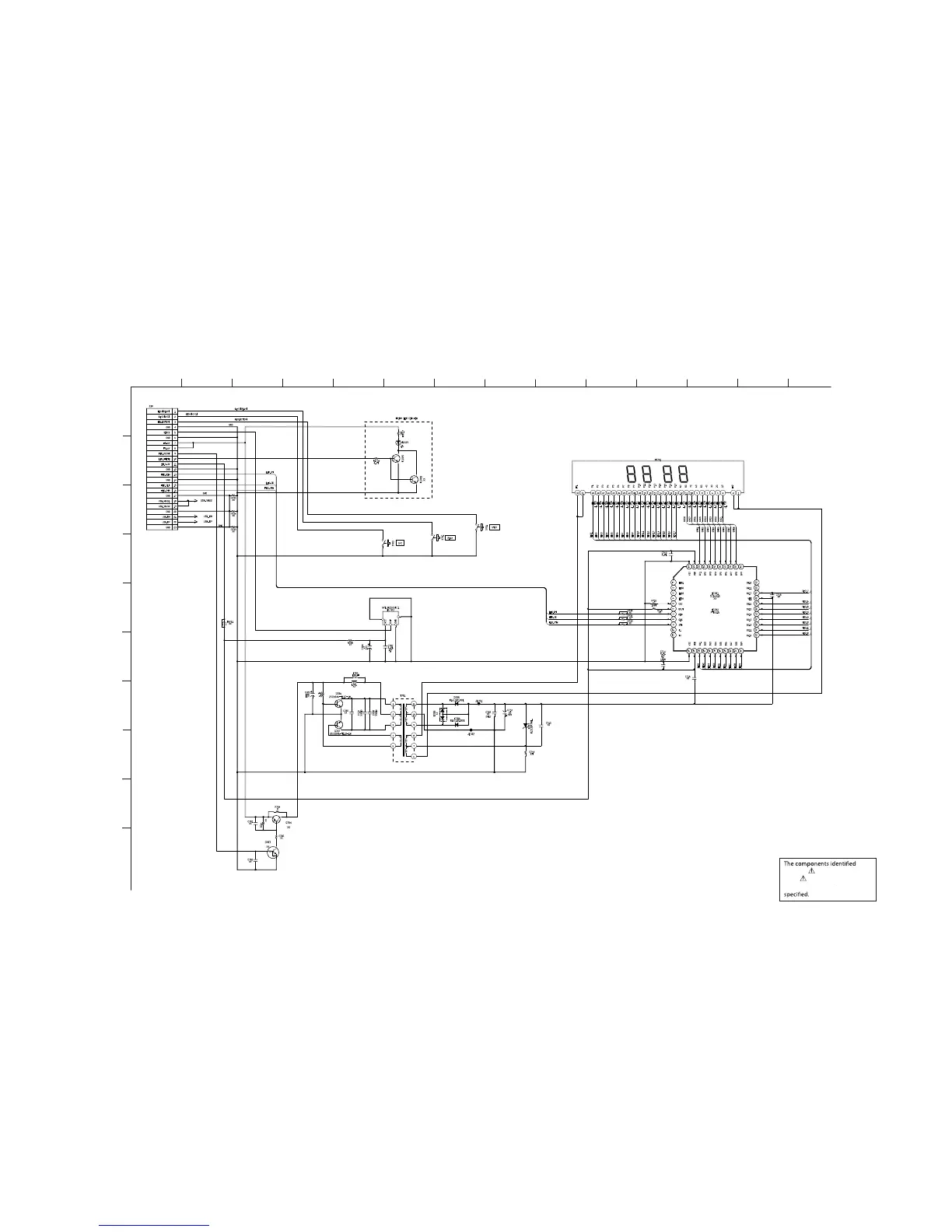

4-3. BOARD (FRONT RIGH T) SCHEMATIC DIAGRAM • See page 5-3 for printed wiring board.
- Ref. No.: board; 20,000 series -
BDP-BX58/S480/S483/S580
by mark or dotted line with
mark
are critical for safety.
Replace only with part number
IF-170
IF-170
