1-4-10. Laser Caution Label
The Loading Ass’y service parts does not have Laser Caution Label.
So that please reuse the original Laser Caution label and paste it on top of
new Loading Ass’y.
Limit Sample
Following peel off condition are acceptable
1-4-9. Loading For Service

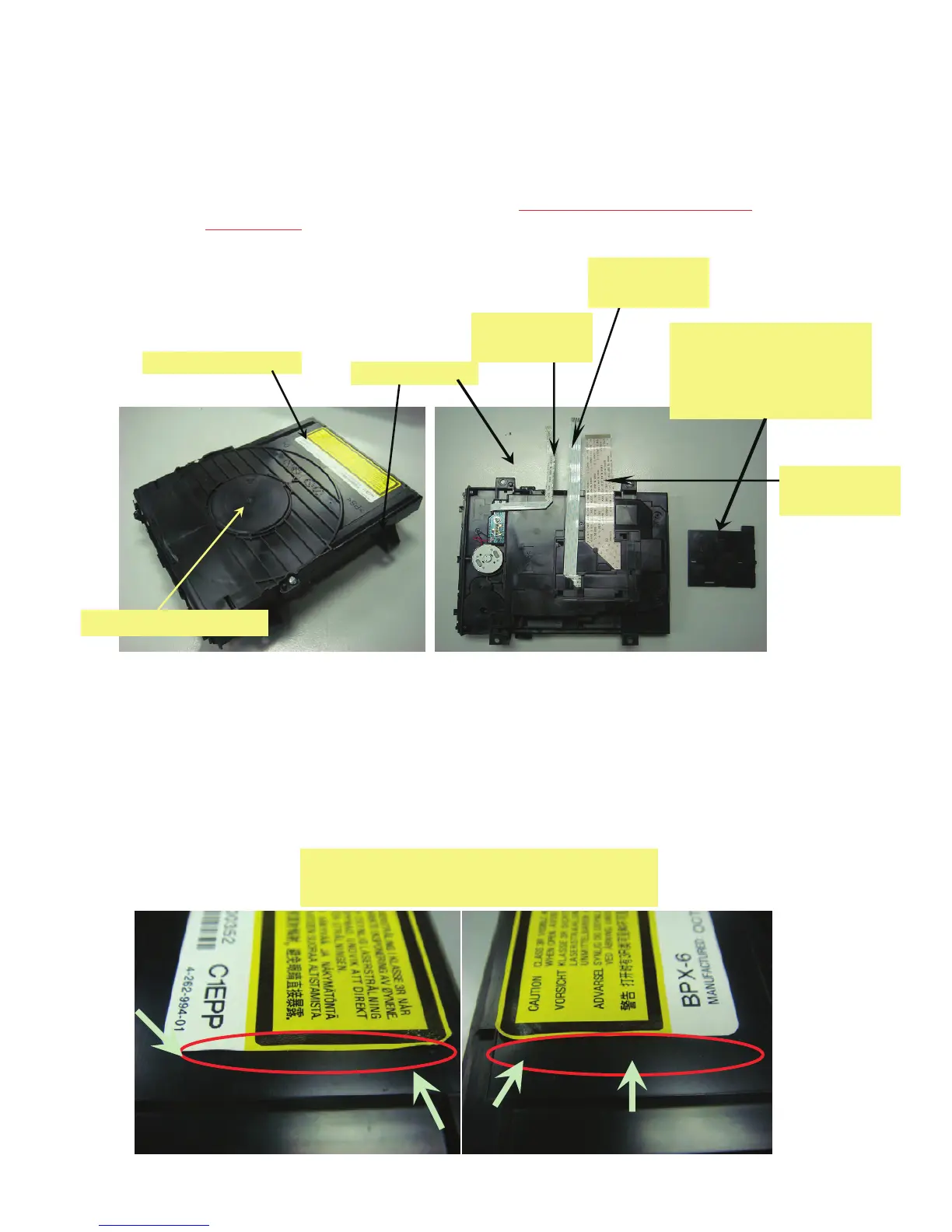

BDP 6G Loading Ass’y service parts consists from 3 parts.
①Holder, Clamper Assy
②Loading Assy
③Holder FFC
Currently these parts are producing 2 vendors. But the THERE IS NO COMPATIBILITY
.
So, please DO NOT MIX
the ① and ② of Loading for service and original Loading.
“Loading for service” A-1750-926-A
②Loading Assy
Laser Caution Label
Holder, Clamper Assy
①
③ Holder, FFC
4-167-321-01
(FFC Holder can be used
both service parts and original
parts)
1-838-617-11
FFC
1-838-616-11
FFC
1-838-615-11
FFC
BDP-BX58/S480/S483/S580
