Sony BDP-S580 - Tray Cover Assy

2-2
7
4
2
Three screws
(tightening torque = 6 to 7 kgf•cm)
Front Panel
3
Harness (FLM-003)
CN331
FL-203 Board
2-4.
FRONT PANEL ASSY, FL-203 , IF-170 BOARD AND WLAN CARD
BDP-BX58/S480/S483/S580

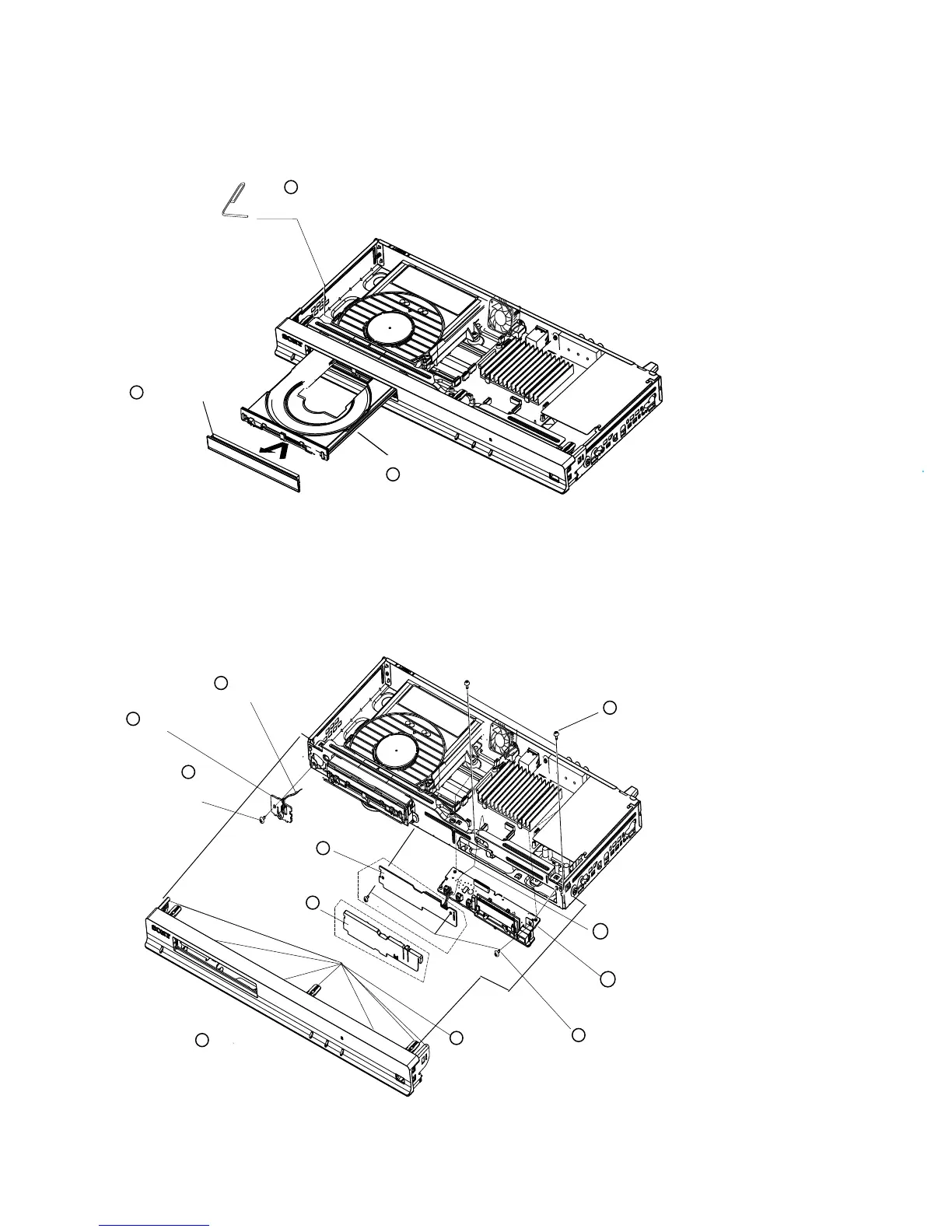

2-3. TRAY COVER ASSY
tray
3 Tray cover assy
2
5
Eight hook
1
7
Two screws +BV3 (3-CR)
(tightening torque = 6 to 7 kgf•cm)
1 Insert a clip in the hole of a drive
to
open a tray.
IF-170 Board
10
Light guide
cover
6
+BV3 (3-CR)
One screws
(tightening torque = 6 to 7
kgf•cm)
+BV3 (3-CR)
Flat Flexible Cable (FIM-029)
8
9
WLAN card
CN702
BDP-S480/S483
BDP-BX58/S580
