DCR-PC109/PC109E

2. DISASSEMBLY

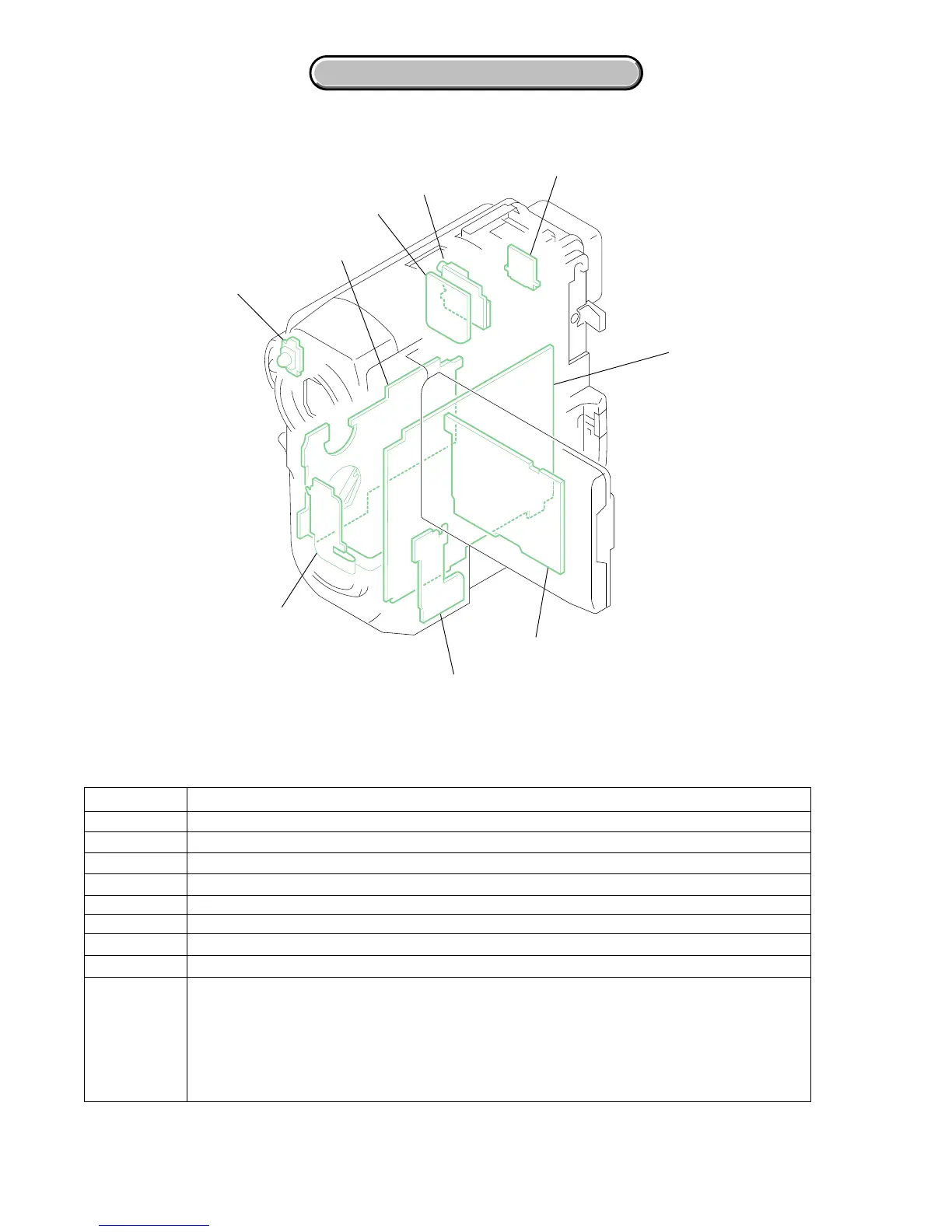

2-3. CIRCUIT BOARDS LOCATION

CD-494

CR-047

FP-840

IR-052

LB-096

MS-201

PD-213

SE-140

NAME

FUNCTION

IR-052

FP-840

MS-201

VC-352

CCD IMAGER

CRADLE CONNECTOR

SIRCS, FRONT INDICATOR

NIGHT SHOT

EVF RELAY

MS CONNECTOR

LCD RGB DRIVE, BACKLIGHT

PITCH/YAW SENSOR AMP, MIC IN

TIMING GENERATOR, S/H, AGC, A/D CONV., LENS DRIVE, CAMERA PROCESS,

MPEG MOVIE/DIGITAL STILL PROCESS, 64Mbit SDRAM, BUFFER, HI/DIGITAL STILL

CONTROL, 32Mbit FLASH, 16Mbit SDRAM, DV SIGNAL PROCESS, DV INTERFACE,

REC/PB AMP, VIDEO I/O, DRUM/CAPSTAN/LOADING DRIVE,CAMERA/MECHA CONTROL,

HI CONTROL, EVF VIDEO, AUDIO I/O, MIC AMP, DC IN, CHARGE, DC/DC CONVERTER,

CONNECTOR
