5-7
DCR-PC109/PC109E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

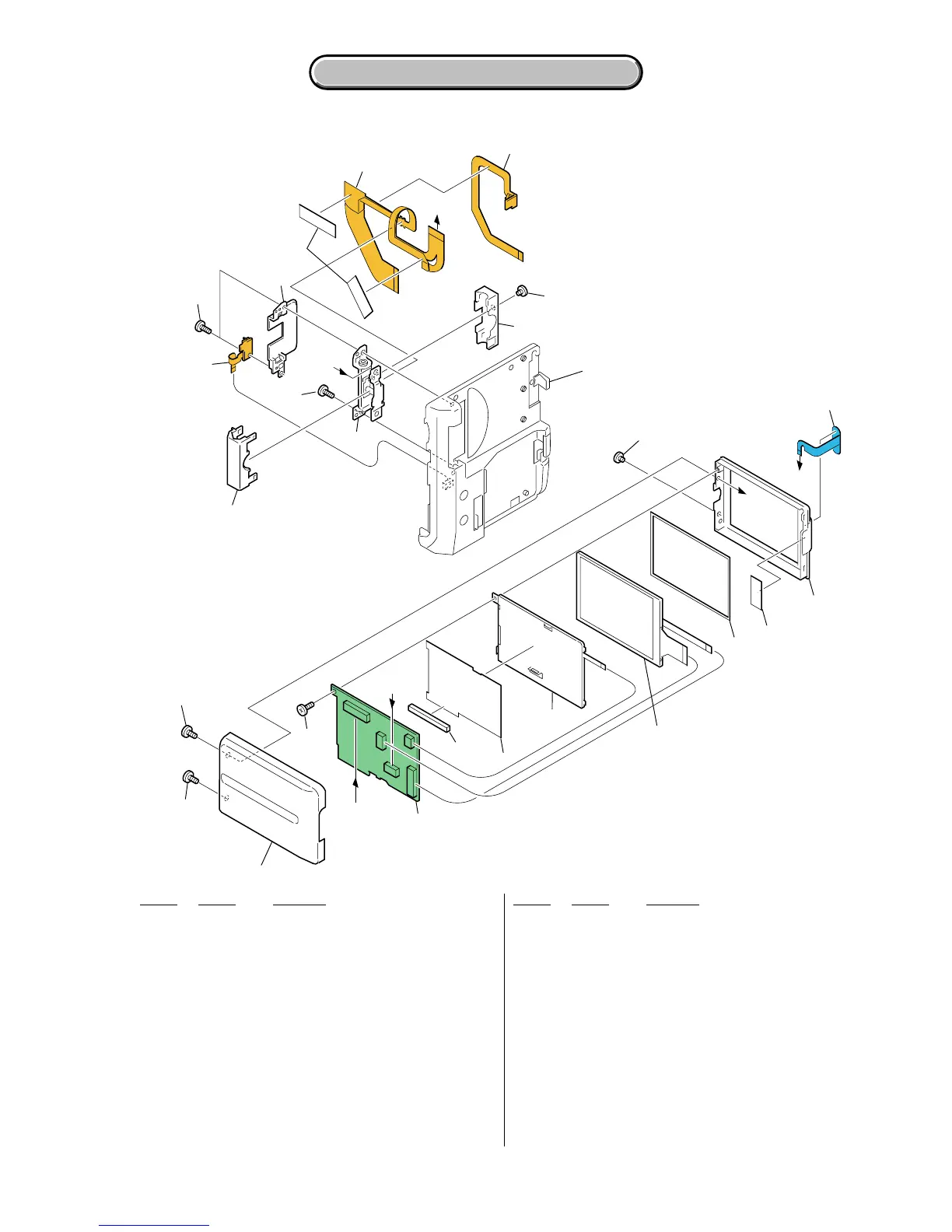

5-1-5. CABINET (R) SECTION-1
ns : not supplied
201 X-3954-402-1 CABINET (C) (G) ASSY, P (PC109:J)
201 X-3954-404-1 CABINET (C) (G) ASSY, P (PC109E)
201 X-3954-409-1 CABINET (C) (G) ASSY, P
(PC109:US,CND,E,HK,KR,JE)
202 3-080-198-21 SCREW(M1.7),LOCK ACE,P2
203 3-080-204-21 SCREW, TAPPING, P2
204 A-7112-498-A PD-213 BOARD, COMPLETE
205 3-090-065-02 CUSHION, BL
206 3-090-062-01 CUSHION, TP
207 3-090-064-01 SHEET, LIGHT
208 X-3954-288-1 CABINET (M) ASSY, P
(PC109:US,CND,E,HK,KR,JE/PC109E)
208 X-3954-420-1 CABINET (M) ASSY, P
(PC109:US,CND,E,HK,KR,JE/PC109E)
209 1-478-483-21 KEY BLOCK, CONTROL (SB6300)
210 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
211 3-089-470-01 COVER (C), HINGE
212 X-3954-070-1 HINGE (63) ASSY
213 3-089-473-01 COVER (M), HINGE
214 A-7112-499-A FP-926 BOARD, COMPLETE
215 1-861-549-11 FP-848 FLEXIBLE BOARD
216 3-941-343-01 TAPE (A)
217 3-089-943-01 BLIND, HINGE
218 1-861-548-11 FP-847 FLEXIBLE BOARD
219 3-078-890-01 SCREW, TAPPING
ND901 1-478-462-21 BLOCK, LIGHT GUIDE PLATE (2.5)
LCD901 8-753-205-50 ACX528AKP-J
Ref. No. Part No. Description Ref. No. Part No. Description
A
C
A
B
C
B
ND901
ns
201
202
203
Cabinet (R) section-2
(See page 5-8)
219
204
205
206
207
208
209
210
LCD901
210
213
211
212
214
215
216
217
203
203
218
