Sony DCR-PC109 User Manual

DCR-PC109/PC109E
HELP
HELP

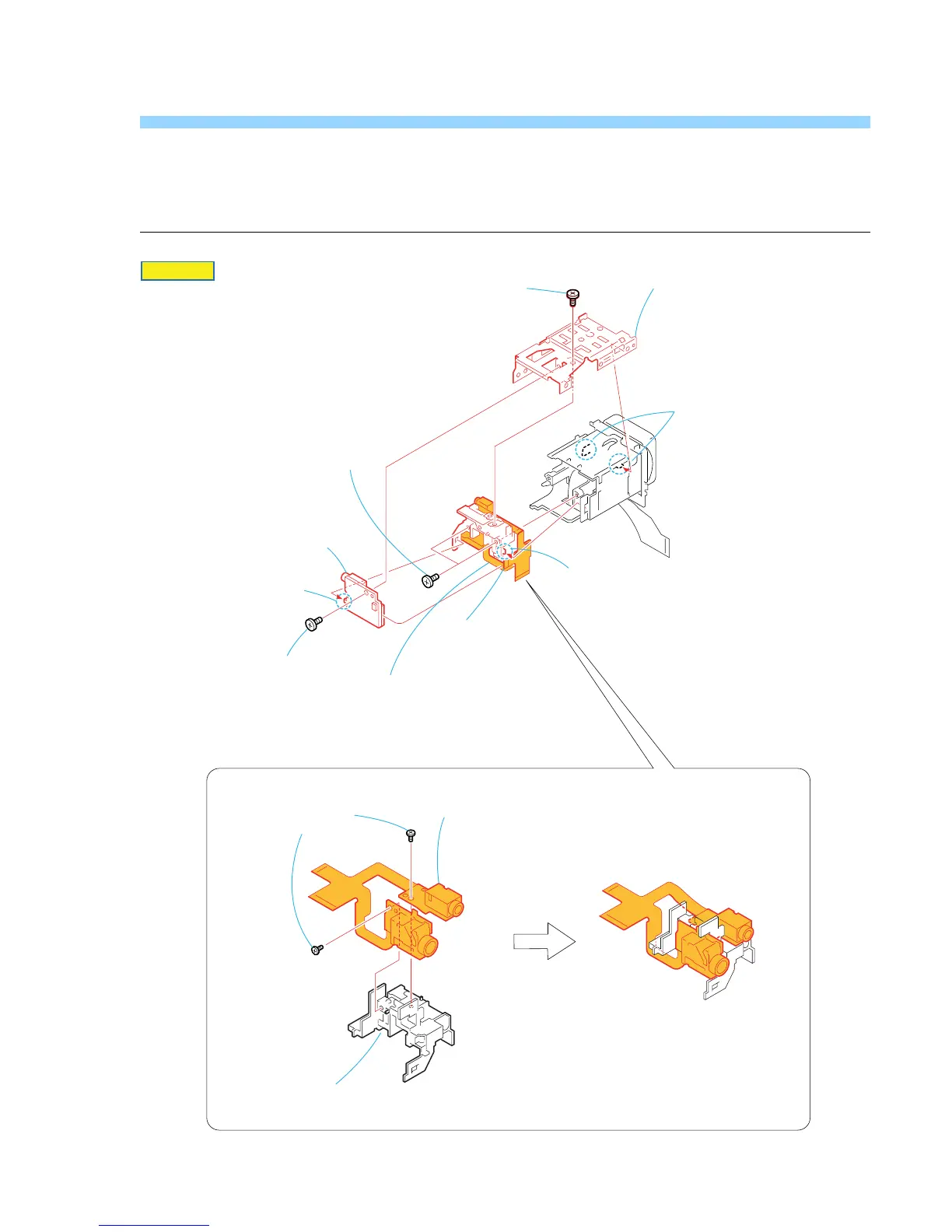

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
1 FP-843 flexible
board (14P)
q; FP-843 flexible board,
E parts holder assembly
FP-843 flexible board
ASSEMBLING THE FP-843 FLEXIBLE BOARD
E parts holder assembly
4 SE-140 board
2 Tapping screw
(M1.7
× 3.5),
black
Two Tapping screws
(M1.7
× 3),
black
5 Tapping screw
(M1.7
× 3.5),
black
6 Two craws
9 Craw
8 Two Tapping screws
(M1.7
× 3),
black
7 Shoe frame (N)
3 Craw
HELP 01
