5-5
DCR-PC109/PC109E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

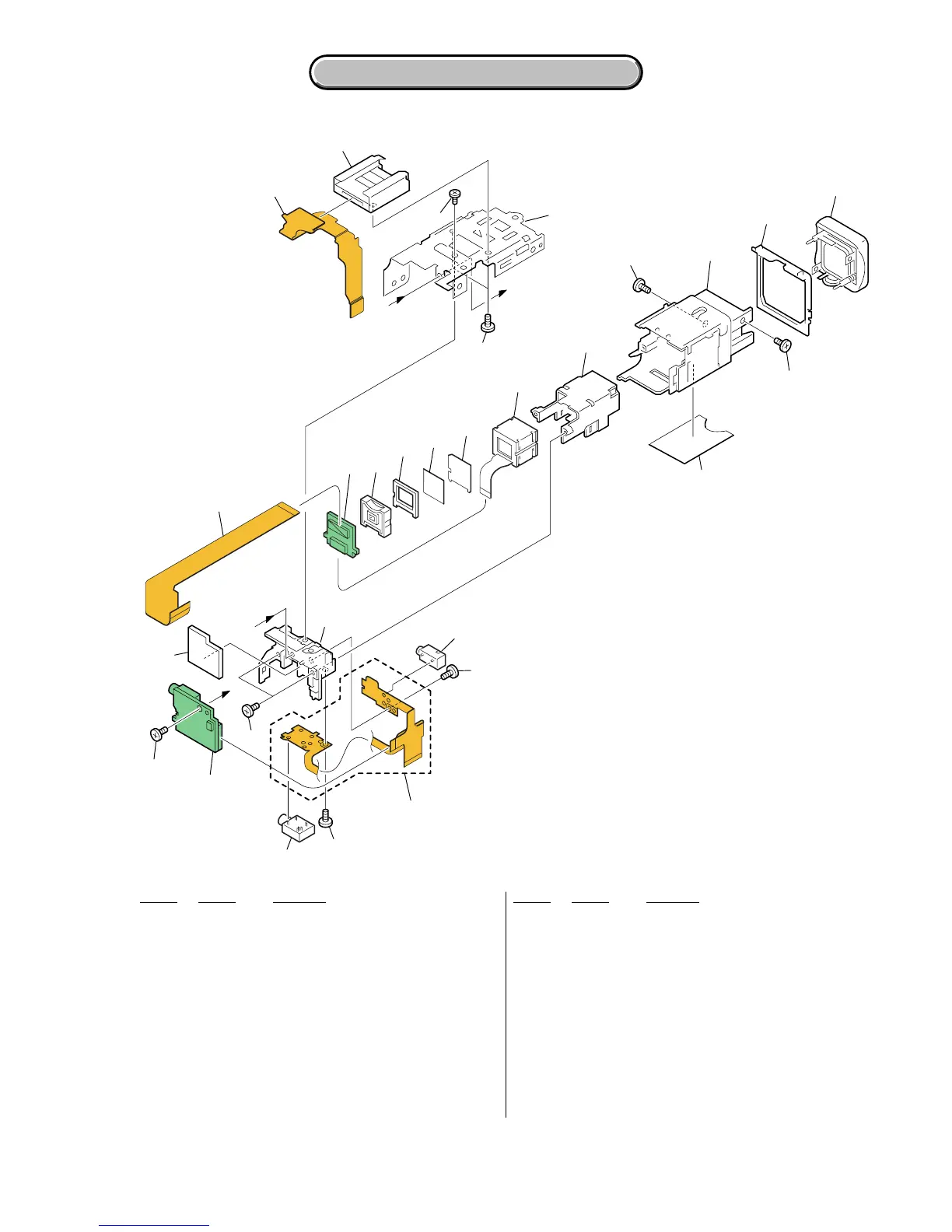

5-1-3. EVF SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
101 1-861-546-11 FP-845 FLEXIBLE BOARD
102 1-793-996-11 CONNECTOR, EXTERNAL
103 3-080-204-01 SCREW, TAPPING, P2
104 3-089-439-01 FRAME (G), SHOE
105 3-080-198-11 SCREW(M1.7),LOCK ACE,P2
107 1-861-544-11 FP-843 FLEXIBLE BOARD
109 A-7112-496-A SE-140 BOARD, COMPLETE
110 1-861-543-11 FP-842 FLEXIBLE BOARD
111 X-3954-127-1 HOLDER ASSY, E PARTS
112 A-7112-494-A LB-096 BOARD, COMPLETE
113 3-089-447-01 GUIDE, LAMP
114 3-089-448-01 CUSHION, LB
115 3-089-445-01 ILLUMINATOR
116 3-089-446-01 SHEET, PRISM
117 3-089-443-01 CABINET, VF (LCD)
118 3-389-523-16 SCREW (LOCK ACE)
119 X-3954-130-1 SLIDE ASSY, VF
120 3-090-069-01 RETAINER, VF FLEXIBLE
121 3-089-435-01 FRAME, ORNAMENTAL, VF
122 X-3954-125-1 EYE CUP ASSY
123 3-078-890-11 SCREW, TAPPING
D001 1-793-995-11 JACK, SUPER SMALL TYPE (LANC)
D002 1-778-040-11 JACK, SMALL TYPE (AV IN/OUT)
LCD902 8-753-208-78 LCX059AKA-J
A
A
B
B
123
102
104
119
120
117
116
114
113
112
110
107
103
103
109
123
115
103
111
121
122
118
105
118
101
LCD902
ns
D001
D002
