DCR-PC109/PC109E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

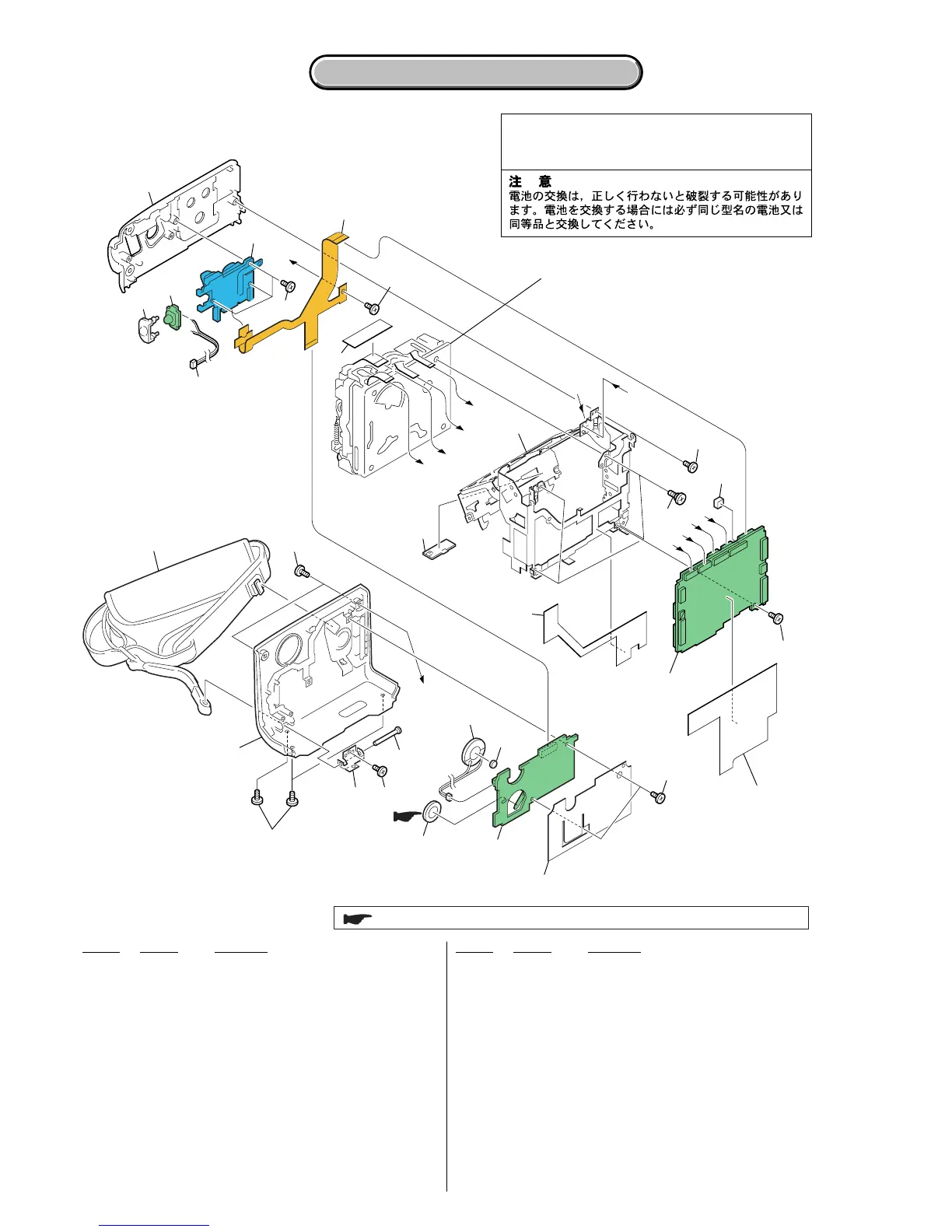

5-1-4. CABINET (L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
151 X-3954-132-1 CABINET (L) ASSY (G) (PC109:J)
151 X-3954-249-1 CABINET (L) ASSY (G)
(PC109:US,CND,E,HK,KR,JE/PC109E)
152 3-090-125-01 WINDOW, NS
153 A-7112-497-A IR-052 BOARD, COMPLETE
154 1-962-696-11 HARNESS (RR-057)
155 1-478-541-11 SWITCH BLOCK, CONTROL (ZM6800)
156 3-080-204-01 SCREW, TAPPING, P2
157 1-861-545-11 FP-844 FLEXIBLE BOARD
158 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
159 3-941-343-01 TAPE (A)
160 3-075-309-01 KNOB, EJECT
161 X-3954-136-1 FRAME ASSY, CS
162 3-062-214-01 SCREW (M1.4X1.5)
163 3-089-521-01 SHEET, VC
164 3-091-234-01 SHEET, INSULATING, VC
165 A-7112-998-A VC-352 BOARD, COMPLETE (SERVICE)(PC109)
165 A-7113-000-A VC-352 BOARD, COMPLETE (SERVICE)(PC109E)
166 3-089-639-01 SHEET, LI
167 A-7112-493-A MS-201 BOARD, COMPLETE
168 3-082-574-01 SHAFT, BELT
169 3-090-930-01 BRACKET (FRONT), BELT
170 X-3954-139-2 CABINET (G) ASSY (PC109:J)
170 X-3954-187-1 CABINET (G) ASSY (E)
(PC109:US,CND,E,HK,KR,JE/PC109E)
171 X-3954-138-2 BELT ASSY, GRIP
SP901 1-825-261-21 LOUD SPEAKER (1.6CM)
ns : not supplied
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
VC-352
MS-201
A
B
C
D
E
F
F
E
A
B
C
D
ns
BT501
151
157
158
153
155
156
158
171
170
169
168
ns
SP901
154
152
156
156
165
164
156
163
162
158
159
161
160
158
167
166
: BT501 (Lithium battery) MS-201 board on the mount position. (See page 4-76)
