Sony DCR-PC109 - Cabinet (R) Section-2

5-8
DCR-PC109/PC109E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

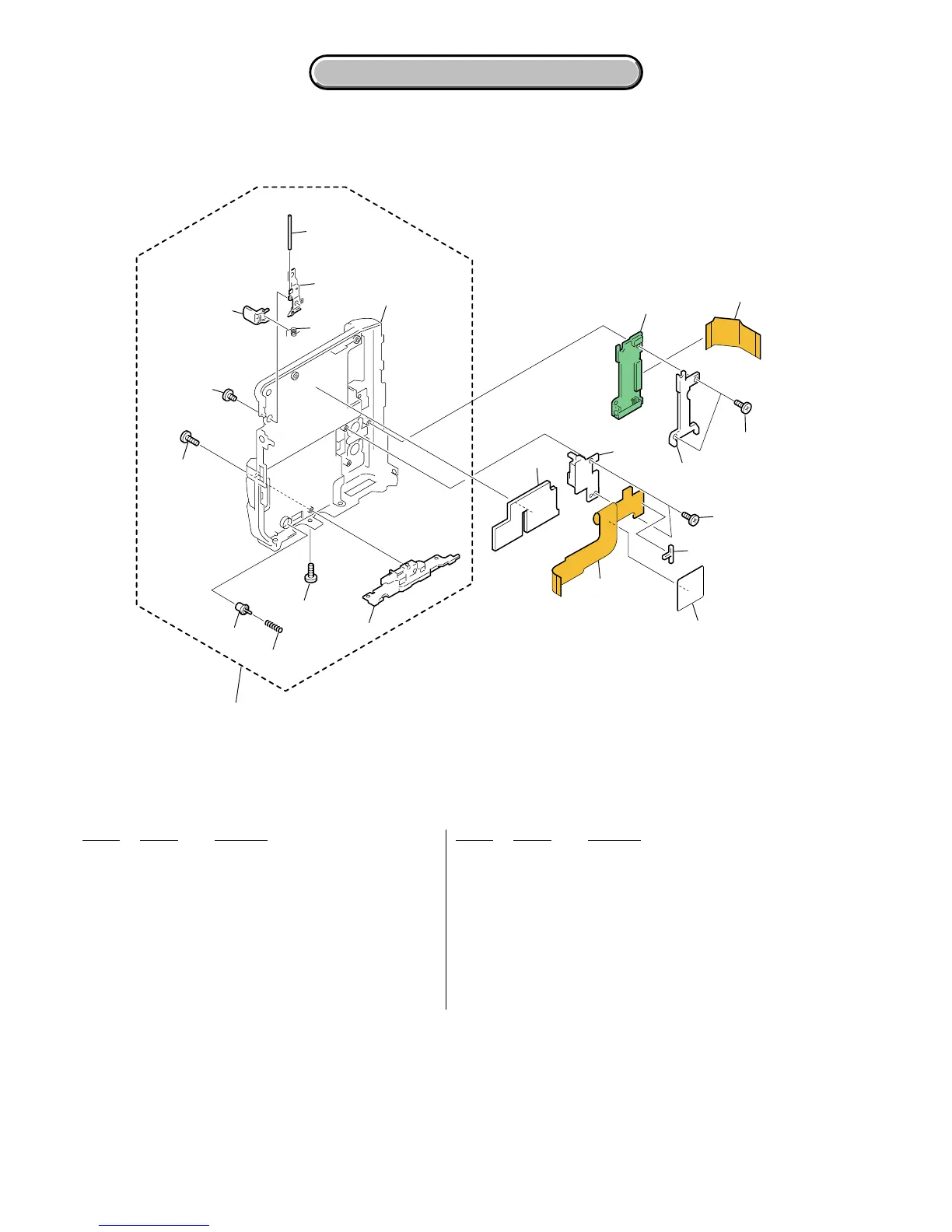

5-1-6. CABINET (R) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-3954-140-1 CABINET (R) ASSY (J) (PC109:J)
251 X-3954-209-1 CABINET (R) ASSY (E)
(PC109:US,CND,E,HK,KR,JE/PC109E)
252 3-089-938-01 FRAME, BOTTOM
253 3-089-931-01 SPRING, LIFTER
254 3-089-930-01 LIFTER, BT
255 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
256 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
257 3-089-933-01 SPRING, PANEL LOCK
258 3-089-932-01 KNOB, PANEL LOCK
259 3-089-934-01 RETAINER, PANEL LOCK
260 3-669-481-05 PIN (DIA. 1X15), PARALLEL
261 1-861-547-11 FP-846 FLEXIBLE BOARD
262 A-7112-502-A CR-047 BOARD, COMPLETE
263 3-080-204-21 SCREW, TAPPING, P2
264 3-090-127-01 SPACER, FLEXIBLE
265 1-861-542-11 FP-841 FLEXIBLE BOARD
266 3-089-942-01 SHEET
BT901 1-694-950-11 TERMINAL BOARD, BATTERY
ns : not supplied
251
ns
252
254
255
255
256
258
257
259
260
261
263
263
266
264
265
262
253
ns
BT901
ns
