Sony DFS-700 User Manual

Chapter 6 System Connections and
Settings
6-6 Chapter 6 System Connections and Settings
When using the BVE-2000
Control the M/E and downstream keyer through the 9-pin connector. You
can control M/E and downstream keys simultaneously.

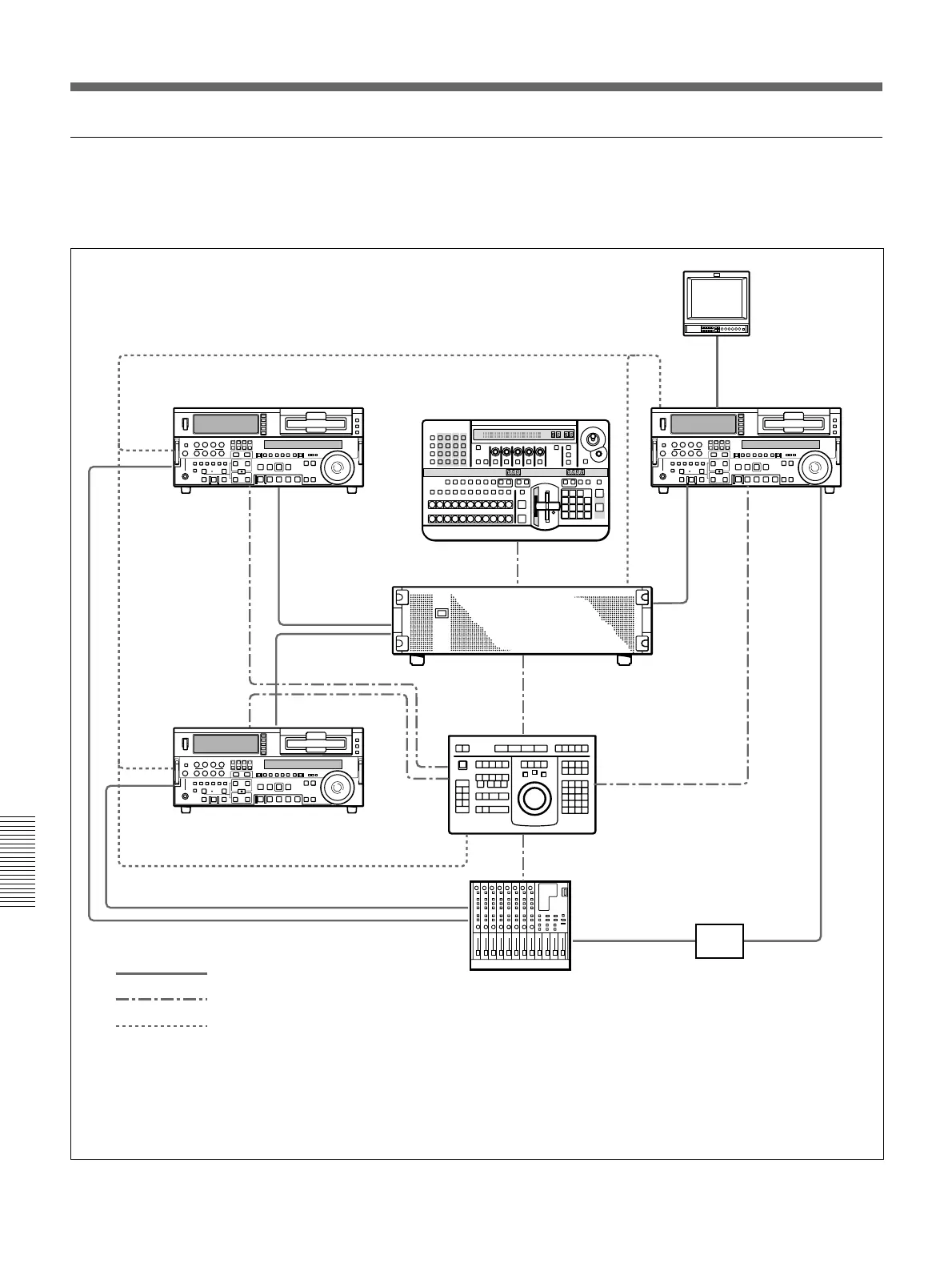

A/B roll editing system connections (2) — using the BVE-2000
Player VCR A
VIDEO OUT VIDEO
IN
VIDEO
OUT
AUDIO
IN
REMOTE
VIDEO OUT
REMOTE
REMOTE
PGM OUT
LINE OUT
LINE IN
LINE IN
VIDEO
INPUT
VIDEO
INPUT
VTR
VTR
REF IN
VTR
REF
VIDEO
IN
REF
VIDEO
IN
EDITOR
EDITOR
VIDEO SW’ ER
REF
VIDEO
IN
BLACK
BURST
OUT
AUDIO
LINE
OUT
AUDIO
LINE
OUT
2
2
4
33
1
1
3
3
1
Player VCR B
Recorder VCR
DFS-700/700P control panel
DFS-700/700P
processor
SRP-L300 Delay Unit
SRP-V200R Audio Mixer
BVE-2000 Editing Control Unit
Video and audio signals
Control signals
Black burst signal (reference
synchronizing signal)
Cables used
1 These depend on the type of VCR being connected. Check with the instructions
supplied with the VCR.
2 XLR (3-way) cables
3 RCC/5G/10G/30G 9-pin remote control cables
4 RCC11A audio mixer control cable
Connections for an A/B Roll Editing System
