5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A300_L2

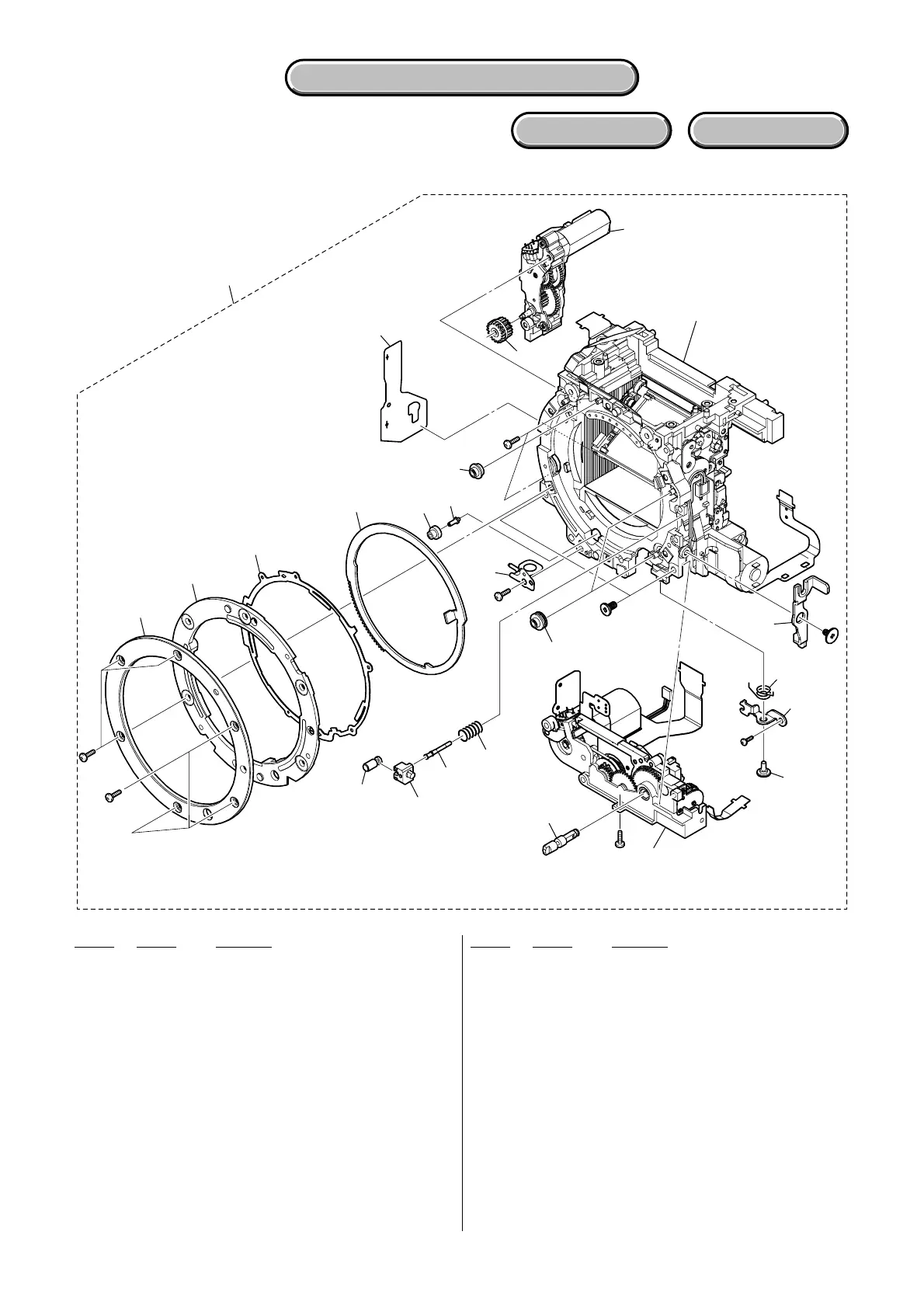

5-1-13. MIRROR BOX SECTION (SUB UNIT-1)
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
701 A-1382-393-A SUB BLOCK ASSY, MIRROR BOX
702 2-689-021-01 MOUNT, H
703 2-689-198-01 RING (SP)
704 2-689-312-02 RING, IRIS
705 3-277-916-01 ROLLER (C), RING
706 3-268-951-01 SHAFT, RING ROLLER (C)
707 2-689-314-01 ROLLER (B), RING
* 708 3-268-957-01 SHEET, IRIS FPC PROTECTION
709 2-689-306-01 GEAR, IRIS JOINT
710 A-1317-689-A APERTURE UNIT (including M903 (aperture
motor) and AP-031 flexible board)
711 3-268-940-01 LEVER, COUPLER
712 3-268-941-01 SP, COUPLER LEVER TENSION
713 3-268-942-01 LEVER, COUPLER JOINT
714 2-689-289-01 SHAFT, COUPLER LEVER
715 2-689-313-01 ROLLER (A), RING
* 716 3-279-645-01 PLATE (LOWER), H MOUNT LUG
717 A-1382-446-A AF DRIVING UNIT (including M901 (AF motor),
EN-022 board, AFM-002 flexible board and
AFP-003 flexible board)
718 X-2179-722-1 AF COUPLER ASSY
719 3-268-945-01 SP, LENS LOCK
720 3-268-943-01 PIN, LENS LOCK
721 3-268-944-01 HOLDER, LENS LOCK PIN
722 3-268-956-01 PIN, LENS LOCK GUIDE
723 2-688-792-01 SPACER, MOUNT
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#89 2-695-575-01 SCREW (T2), +P1 PAN TAPPNG (Silver)
#90 3-271-395-01 SCREW (M1.7), LEVER ADJUSTMENT (Silver)
#91 2-695-434-11 SCREW (T1.7), HEAD PAN TAPPING (Silver)
#92 3-268-954-01 SCREW, AF BASE PLATE STOPPER (Black)
701
Mirror Box Section (Sub Unit-2)
(See page 5-15)
702
703
723
704
705
706
708
709
707
#23
#91
#89
#89
#90
#23
#92
#12
711
712
713
714
715
716
718
719
720
721
722
717
(including M901 (AF motor), EN-022
board, AFM-002 flexible board
and AFP-003 flexible board)
710
(including M903 (aperture motor) and
AP-031 flexible board)
