Sony DSLR-A300 User Manual

5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A300_L2
651
(including BL901, LCD902, LED901, AE-032 flexible board,
IFL-003 flexible board, LED-001 flexible board and
VTN-001 flexible board) (Note 3)
#117
#117
ns
ns
ns
Mirror Box Section (Sub Unit-1)
(See page 5-14)
ns
652
(Note 1)
660
661
658
(Note 2)
653
(Note 1)
654
655 - 659
(Note 2)

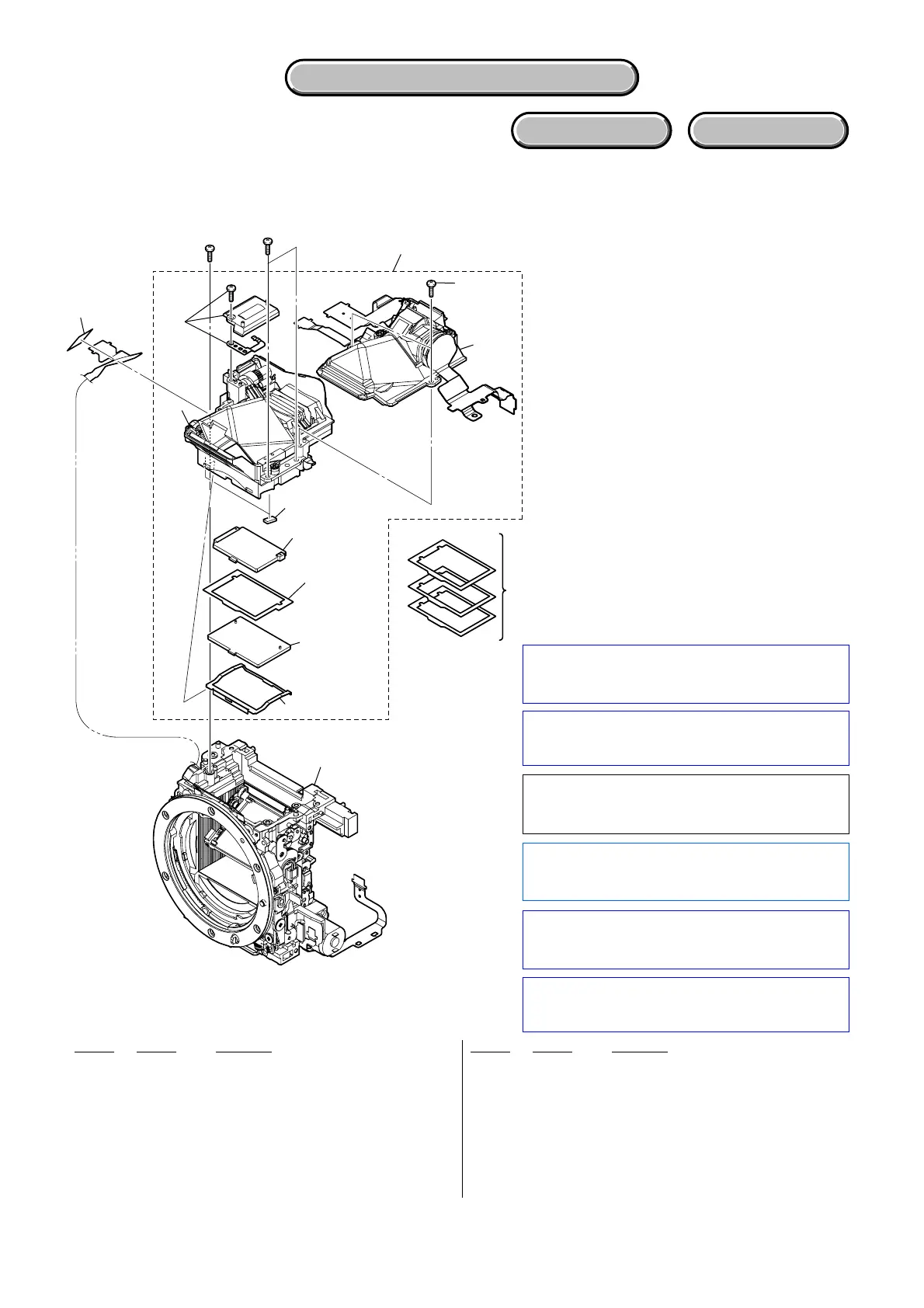

5-1-12. MIRROR BOX SECTION (PENTA UNIT)
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
651 A-1528-267-A VTN PENTA BLOCK ASSY
(including BL901, LCD902, LED901, AE-032
flexible board, IFL-003 flexible board, LED-001
flexible board and VTN-001 flexible board)
(Note 3)
652 A-1498-933-A SI SCREEN (SERVICE) (Note 1)
653 A-1510-533-A FORCUS PLATE (SERVICE) (Note 1)
654 3-279-665-01 VM FS RETAINER
655 2-689-369-01 SPACER (A), VB (T=0.05mm) (Note 2)
656 2-689-370-01 SPACER (B), VB (T=0.1mm) (Note 2)
657 2-689-371-01 SPACER (C), VB (T=0.15mm) (Note 2)
658 2-689-372-01 SPACER (D), VB (T=0.2mm) (Note 2)
* 659 3-700-972-01 SPACER (E), VB (T=0.25mm) (Note 2)
660 3-279-666-01 CUSHION, MAIN MIRROR
661 3-870-313-01 SHEET, AFM FLEXIBLE GUARD
#117 2-695-429-31 SCREW (T1.7), HEAD PAN TAPPING (Silver)
Ver. 1.2 2008.06
The changed portions from
Ver. 1.1 are shown in blue.
Note 1: Refer to page 1-2 “1-5. METHOD OF EXCHANG-
ING SI SCREEN AND FOCUS PLATE” when SI
screen or focus plate are exchanged.
Note 2: These are spacers use to adjust thickness when
Viewfinder Back Adjustment is done.
Adjusting Item: “Viewfinder Back Adj.”
Note 2: ビューファインダーバック調整を行う際，厚さ
調整のために使用するスぺ−サです。
調整項目：「ViewfinderBackAdj.」
Note 1: SIスクリーンまたは焦点板を交換する際は，1-5
ページの「1-5.SIスクリーン，焦点板の交換方
法」を参照してください。
Note 3: Refer to page 2-24 “2-12. CLEANING PROCE-
DURE OF VIEWFINDER” for method of cleaning
the viewfinder.
Note 3: ビューファインダーの清掃方法は，2-24ページ
の「2-12. CLEANING PROCEDURE OF
VIEWFINDER」を参照してください。
