Sony DSLR-A300 User Manual

5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A300_L2

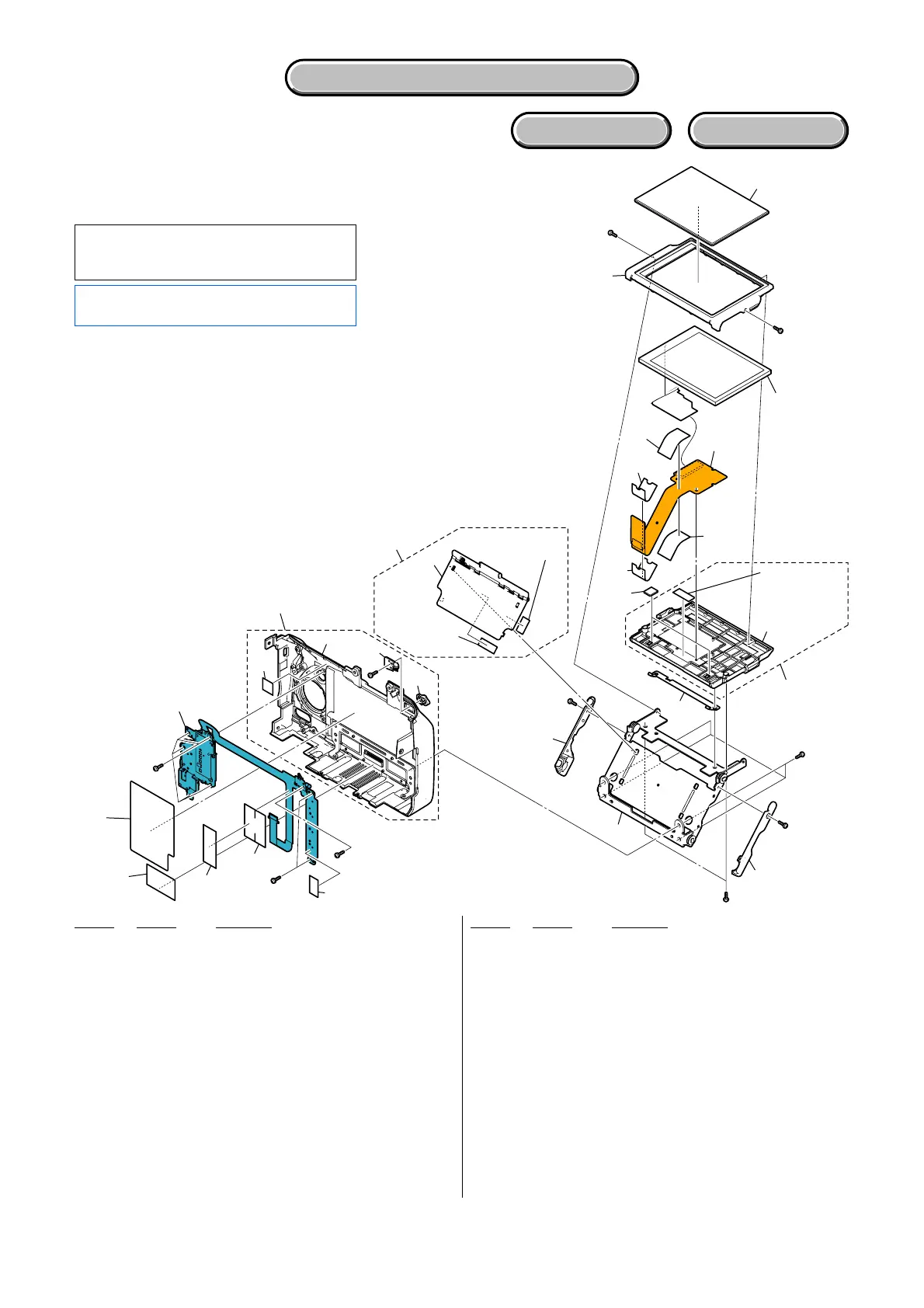

5-1-3. REAR COVER SECTION
ns: not supplied
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
* 101 3-290-775-02 CV FLEXIBLE HOLE BLIND SHEET
* 102 3-282-797-01 CV FUSE CHANGE CAUTION LABEL
* 103 3-297-446-01 EM SHIELD INSULATING SHEET
* 104 3-296-153-01 EM RS FPC SHIELD SHEET
105 1-480-473-11 SWITCH BLOCK, CONTROL (RS62700)
106 X-2188-562-2 CV REAR COVER ASSY 629
107 3-282-804-01 CT MAIN SW KNOB
* 108 3-282-805-01 CT MAIN SW CLICK PLATE
109 X-2188-565-1 CV FLEXIBLE COVER ASSY
110 CAUTION CV FPC TAPE B
111 3-288-197-01 CV HINGE COVER (R)
112 X-2188-563-2 CV LCD HINGE ASSY
113 3-288-198-01 CV HINGE COVER (L)
114 3-288-202-01 EM LCD GROUND PIECE
115 X-2188-815-1 CV LCD LOWER COVER ASSY
* 116 3-298-228-01 EM LCD GASKET
117 3-288-200-01 CV FPC SLIDER SHEET
118 A-1466-493-A LF-057 FLEXIBLE BOARD, COMPLETE
119 X-2188-564-1 CV LCD UPPER COVER ASSY
120 3-288-203-01 CV LCD WINDOW 629
121 3-085-917-01 SHEET, PROTECTION, BT FLEXIBLE
* 122 3-875-297-01 CV FPC SLIDER SHEET B
123 3-870-313-01 SHEET, AFM FLEXIBLE GUARD
LCD901 8-753-298-16 ACX373AKM-3
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#75 2-666-551-01 SCREW, TAPPING, P2 (Silver)
#108 2-695-430-01 SCREW (T1.7), HEAD PAN TAPPING (Black)
#110 2-630-005-21 SCREW (M2), NEW TRUSTER, P2 (Black)
#118 2-655-580-01 SCREW 0+P2 M1.4 NEWTRU-STAR (Black)
105
106
109
107
108
121
110
(5mm x 10mm)
110
(5mm x 10mm)
110
(5mm x 10mm)
118
101
103
104
123
102
#108
#75
#118
#118
#118
#118
#110
#23
ns
ns
#75
#75
LCD901
111
112
113
ns
114
115
116
122
117
119
120
117
122
CAUTION:
For the part of 110, cut SHEET, ADHESIVE (2-649-
300-01) into the desired length and use it.
Ver. 1.2 2008.06
The changed portions from
Ver. 1.1 are shown in blue.
CAUTION:
110番は，接着紙（2-649-300-01）を切って使用。
