5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A300_L2

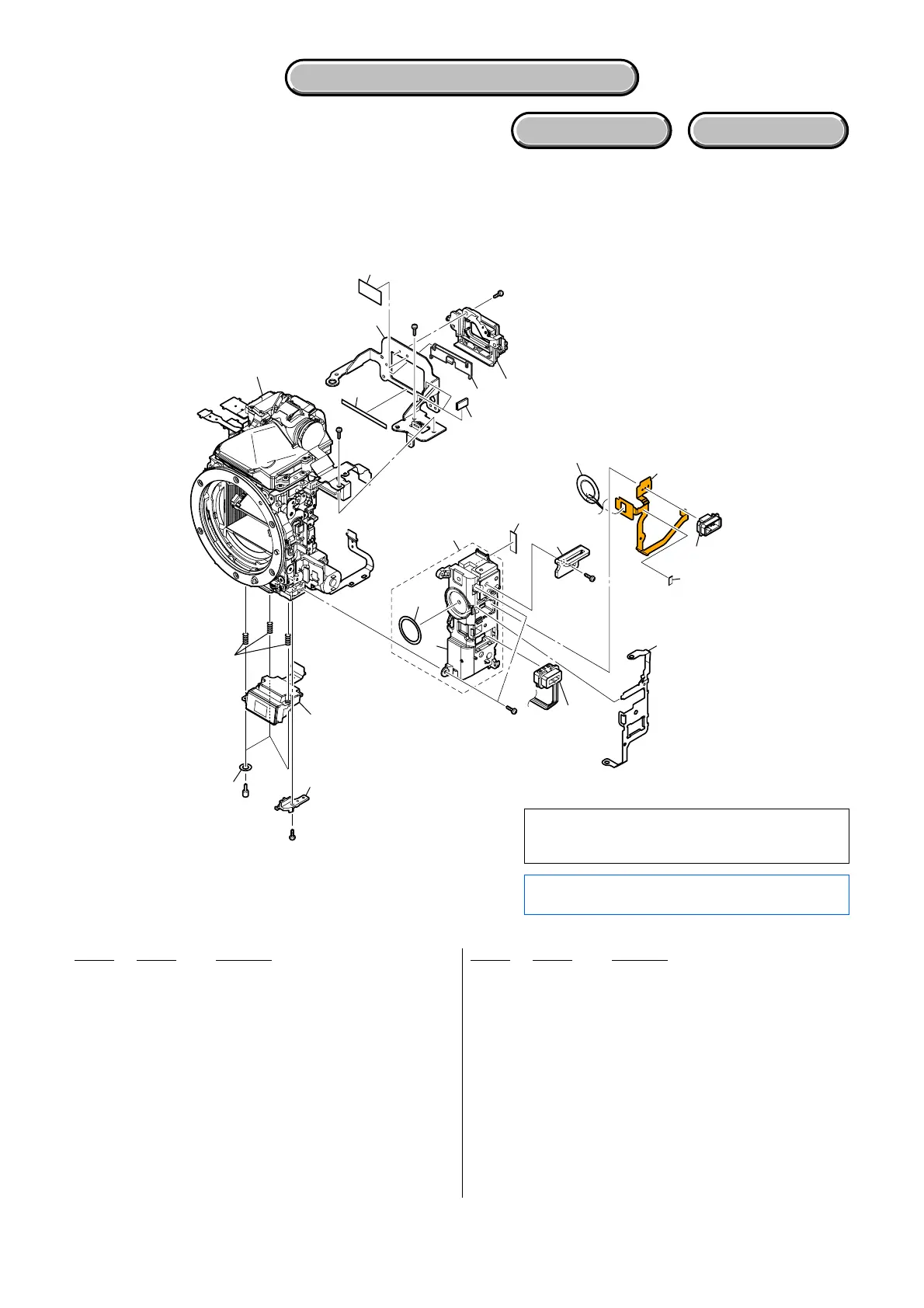

5-1-11. TERMINAL HOLDER SECTION
ns: not supplied
HARDWARE LIST
DISASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
* 501 3-282-822-01 HOLDER, DCJ CABLE
502 2-688-865-01 WASHER, S ADJUSTMENT
503 A-1317-238-A ALX-6270 (AF MODULE)
(including AF-111 flexible board)
504 2-693-420-01 SP, S ADJUSTMENT
* 505 3-282-817-01 BD EYE PIECE FRAME
506 A-1437-505-A EYE PIECE FRAME UNIT
(including SE901 and EYE-006 flexible board)
507 A-1442-602-A RM-096 FLEXIBLE BOARD, COMPLETE
508 3-282-883-01 BD EYELET (L)
* 509 X-2187-851-1 BD TERMINAL HOLDER ASSY
510 3-282-873-01 BD BUZZER TAPE
* 511 3-282-882-01 BD TERMINAL RETAINER PLATE
* 512 3-282-751-01 BD SIDE COVER (L) SHEET
* 513 3-398-188-01 BD LIGHT INTERCEPTION SPACER F
* 514 3-298-583-01 BD TEBURE SPACER SHEET
515 CAUTION BD VTN INSULATING TAPE
* 516 3-296-540-01 BD EYE PIECE GLASS RETAINER
BZ901 1-826-816-11 BUZZER, PIEZOELECTRIC
J901 1-480-041-11 REMOTE HOLDER (REMOTE)
0 J902 1-821-194-21 JACK, DC (DC IN)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#59 3-080-205-21 SCREW, TAPPING, P2 (Silver)
#88 2-689-015-01 SCREW, S ADJUSTMENT (Silver)
• Refer to page 5-1 for mark 0.
501
502
503
(including AF-111 flexible board)
506
(including SE901 and EYE-006 flexible board
)
504
505
516
513
507
508
514
509
510
511
512
J902
J901
BZ901
#14
#23
ns
#23
#23
#88
#59
ns
#23
Mirror Box Section (Penta Unit)
(See page 5-13)
515
(8mm x 8mm)
CAUTION:
For the part of 515, cut WOVEN (T0.25), FABRIC NON
(3-076-631-01) into the desired length and use it.
Ver. 1.2 2008.06
The changed portions from
Ver. 1.1 are shown in blue.
CAUTION:
515番は，T0.25ヒメロン（3-076-631-01）を切って使用。
