5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSLR-A300_L2

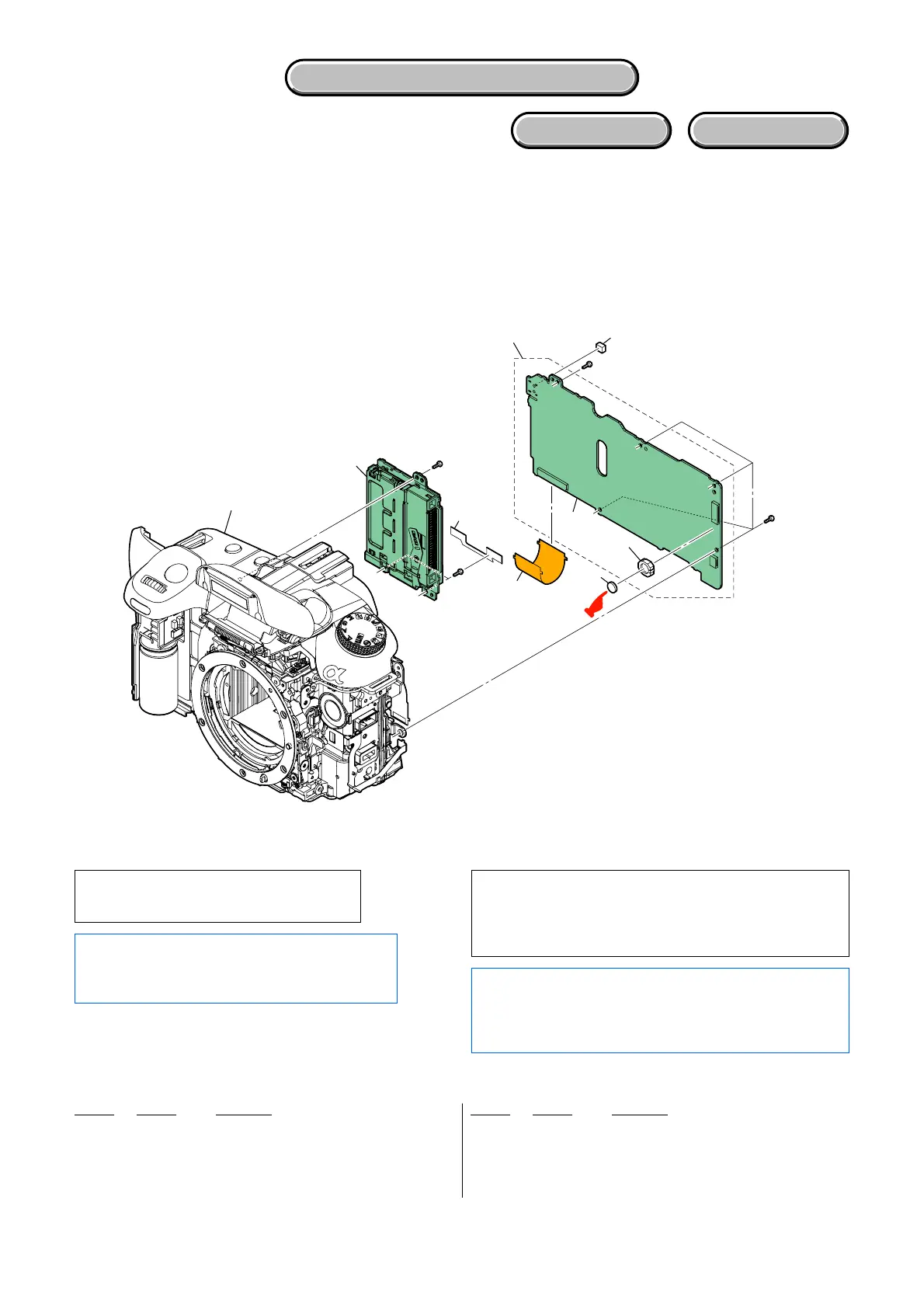

5-1-4. MAIN BOARD SECTION
ns: not supplied
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1437-495-A MM-076 BOARD, COMPLETE
* 152 3-290-170-01 PC BOARD ELECTROSTATIC SHEET
153 1-873-780-11 MM-078 FLEXIBLE BOARD
154 A-1519-925-A AM-013 BOARD, COMPLETE (SERVICE)
* 155 3-282-823-01 JB LED SHADING SHEET
0 BH3001 1-756-615-41 HOLDER, BATTERY (Note)
0 BT901 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
#75 2-666-551-01 SCREW, TAPPING, P2 (Silver)
#109 2-515-483-21 SCREW (M1.7), LOCK ACE, P2 (Black)
• Refer to page 5-1 for mark 0.
151
A
M
-013
152
153
BT901
(Note)
155
BH3001
(Note)
ns
#10
9
#75
#75
#75
154
! : BT901 (BATTERY, STORAGE, LITHIUM)
Board on the mount position.
(See page 4-45 on level 3)
Shutter Unit Section
(See page 5-6)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Note: Replace the battery holder (BH3001) together when replac-
ing the lithium battery (BT901) on the AM-013 board. (The
battery holder removed once cannot be used again.)
When mounting these parts, mount new battery holder first
and attach new lithium battery next.
DISASSEMBLY
Ver. 1.2 2008.06
The changed portions from
Ver. 1.1 are shown in blue.
Note: AM-013基板のリチウム電池（BT901）を交換する場合は
バッテリホルダ（BH3001）も同時に新品に交換してくだ
さい。（一度使用したバッテリホルダは再使用できませ
ん。）
部品取り付けの際は，先にバッテリホルダを取り付けてか
らリチウム電池を装着してください。
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
