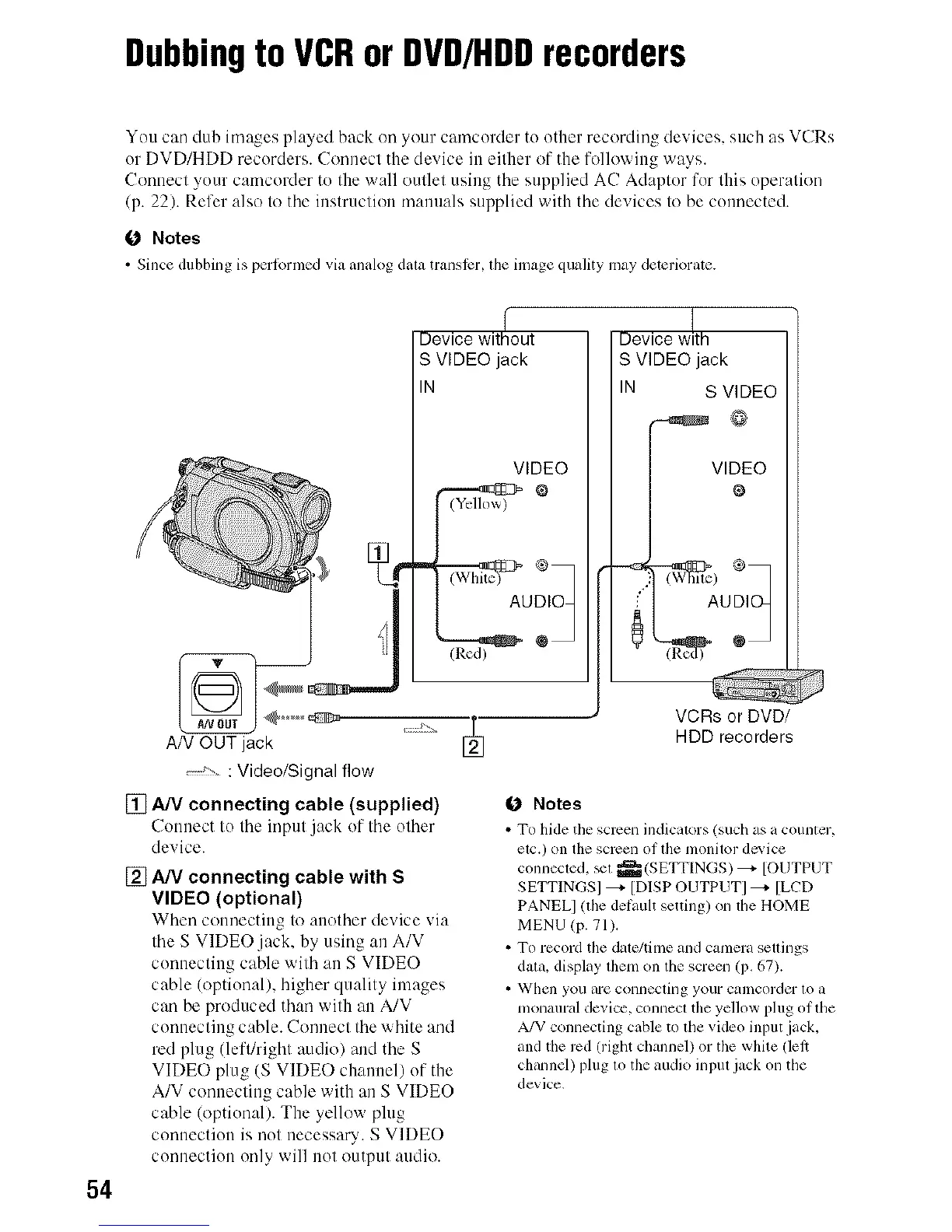

Dubbingto VCRorDVD/HDDrecorders
54
You can dub images played back oil your camcorder to other recording devices, such as VCRs
or DVD/HDD recorders. Connect the device in either of the following ways.
Conuect your camcorder to the wall outlet using tile supplied AC Adaptor for this operation
(p. 22). Refer also to the instruction manuals supplied with the devices to be connected.
O Notes
• Since dubbing is perlbrmed via amdog d_ua translcr, file image quality may deteriorate.
[]
AN OUT jack
: Video/Signal flow
[] A/V connecting cable (supplied)
Connect to tile input jack of tile other
device.
[] A/V connecting cable with S
VIDEO (optional)
When connecting to :mother device via
the S VIDEO.jack, by using an A/V
connecting cable with an S VIDEO
cable (optional), higher quality images
can be produced than with an A/V
connecting cable. Connect the white and
red plug (lefffright audio) and the S
VIDEO plug (S VIDEO chatmel) of the
A/V connecting cable with an S VIDEO
cable (optional). The yellow plug
connection is not necessa U. S VIDEO
connection only will not output attdio.
Device without
S VIDEO jack
IN
VIDEO
(Red) @
Device w!th
S VIDEO jack
IN S VIDEO
VI%EO
I AUDIOq
_ VCRs or DVD/
HDD recorders
(J Notes
• To hide tile screen indicators/such as a counter,
elc.) on tile screen of file monitor dc_ icc
connected, _t _ (SETTINGS) _ [OUTPUT
SETTINGSI _ [DISP OUTPUTI _ [LCD
PANELI lille delault setting) on tile HOME
MENU (p. 71 ).
• To record tile date/time and camera seuings
data. display fllem on the screen (p. 67).
• When you armconnecting your camcorder to a
monaural device, connect the yellow plug of tile
A/V connecting cable to the vide() input jack.
and the rcd (rigtu channel) or the white (let*
channel) plug to the audio input jack on the
device.
